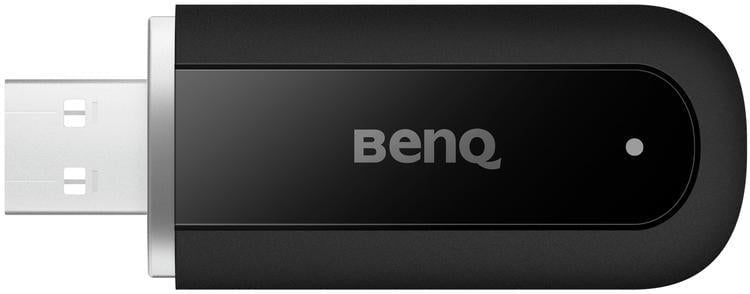

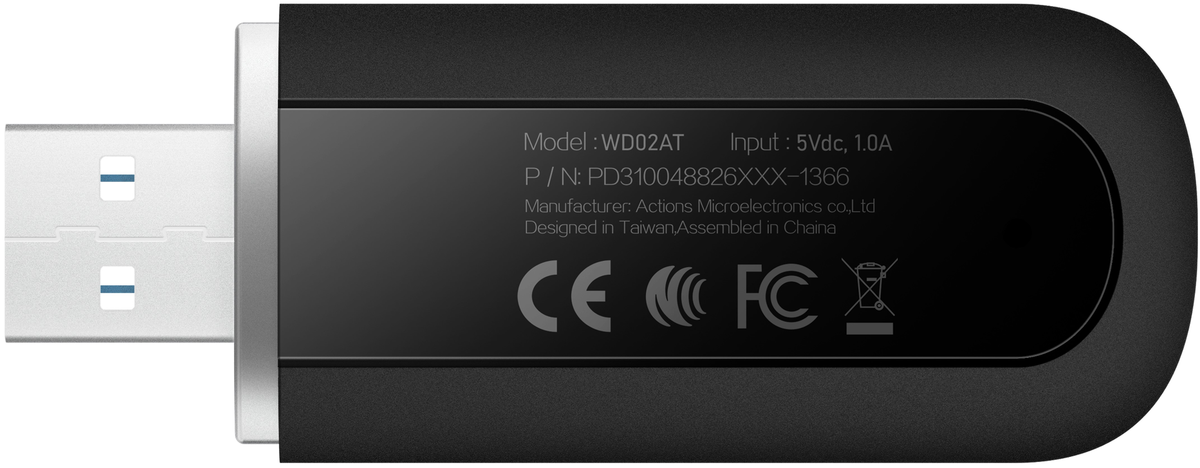

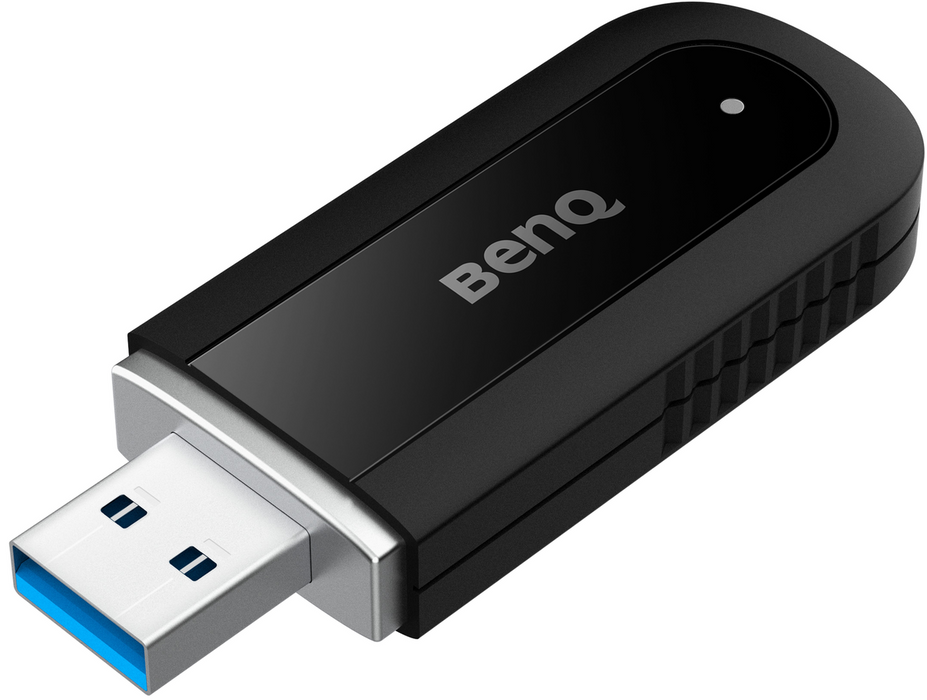

BenQ WD02AT – WI-FI 6 + Bluetooth 5.2 Wireless Dongle (5A.F8Y28.DE1)
Main advantages
BenQ WD02AT combines Wi-Fi 6 and Bluetooth 5.2 in one compact USB device, making it easy to connect interactive displays. Dual-band Wi-Fi 6 provides a stable and fast connection for wireless content sharing in real time. The built-in hotspot functionality allows the display to distribute the Internet to other devices, without the need for additional network infrastructure. Bluetooth 5.2 enables direct connection to peripherals without cables. The device is optimized for BenQ Boards and works in plug-and-play mode, which reduces setup time and maintains a tidy work environment.
Technical characteristics
Basic data:
- Model: WD02AT
- Product type: 2-in-1 WiFi & Bluetooth wireless USB adapter (dongle)
- Intended use: For BenQ interactive displays/whiteboards and digital boards (BenQ Boards)
- Color: Black
- Interface: USB 2.0 Type-A, male connector
Wi-Fi Features:
- Wi-Fi standard: Wi-Fi 6, compatible with 802.11 a/b/g/n/ac/ax
- Frequency bands: Dual-band 2.4 GHz and 5 GHz, MU-MIMO support
- Transmission speed:
- 2.4 GHz: up to 574 Mbps
- 5GHz: up to 1201Mbps
- Modes: Wi-Fi adapter + Hotspot (sharing LAN to wireless network)
- Wireless range: up to 10 m (between dongle and display/IFP)
- Security: 64/128-bit WEP, WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK, WPS3-PSK
Bluetooth features:
- Bluetooth standard: Bluetooth 5.2
- Supported devices: keyboards, mice, speakers
- Note: does not support external microphones
Compatibility and software:
- Supported operating system: Android
- Compatible series: RP04, RM04, RM03, RP03, RE03, RE01, RE03A
- Compatibility: InstaShare / InstaShare Button
Physical parameters:
- Dimensions (W × H × D): 65 × 25 × 11 mm (2.56 × 0.98 × 0.43 in)
- Package dimensions (L × W × H): 133 × 80 × 30 mm (5.24 × 3.15 × 1.18 in)
- Net weight: 0.011 kg (11 g)
- Gross weight: 0.04 kg
Power supply and operating conditions:
- Power supply: DC 5 V, up to 0.9 A (via USB port)
- Operating Temperature: 0°C – 45°C (32°F – 113°F)
- Storage temperature: 0°C – 70°C (32°F – 140°F)
- Operating humidity: 10% - 80% relative humidity
- Storage Humidity: 10% - 90% relative humidity, non-condensing
Description and innovations
The BenQ WD02AT expands the functionality of interactive displays, transforming them into fully connected digital hubs. With combined Wi-Fi and Bluetooth connectivity, users can wirelessly share screens, access the Internet, and connect peripherals without the need for additional cables. This makes it suitable for both meeting rooms and educational environments where quick access to content is key.
Wi-Fi 6 technology delivers higher performance when working with multiple devices simultaneously, reducing latency and improving connection stability. Dual-band support allows for optimal traffic distribution between 2.4 GHz and 5 GHz, which is especially useful in busy network environments such as classrooms and offices.
The hotspot function allows the display to share an internet connection with other devices, simplifying network infrastructure and reducing the need for external routers. Bluetooth 5.2 contributes to a cleaner and more organized work environment by easily connecting wireless accessories. The compact design and optimization for BenQ Boards ensure reliable operation and easy integration.
Unique accents
- Suitable for meeting rooms, classrooms and training centers
- Plug-and-play installation via USB Type-A without complicated configuration
- Wirelessly share content with one action via InstaShare Button
- Reduces the need for cables and external network infrastructure
- Supports modern security standards, including WPA3
- Makes it easier to connect peripherals and improves workspace organization
