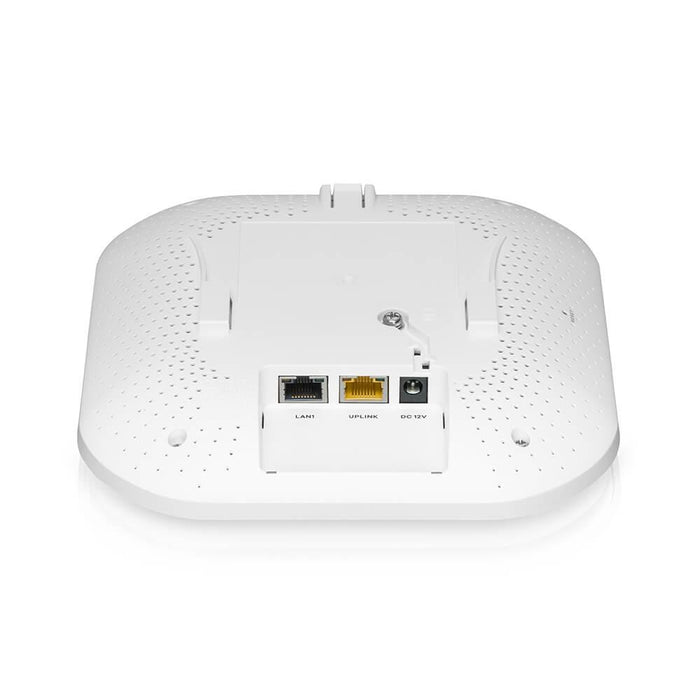

Wireless access point ZYXEL NWA220AX, AXE5400 WiFi 6E 2.4/5/6GHz

Standard

IEEE 802.11 ax/ac/n/g/b/a

MIMO

MU-MIMO

Wireless speed

2.4GHz: 575 Mbps

5GHz: 4800 Mbps

6GHz: 4800 Mbps

Frequency band

2.4 GHz:

USA (FCC): 2.412 to 2.462 GHz

Europe (ETSI): 2.412 to 2.472 GHz

5 GHz:

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

6 GHz

USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz

European (ETSI): 5.925 to 6.425 GHz

Bandwidth

20-, 40-,80- and 160-MHz

Conducted typical transmit output power^*1
(limited by local regulatory requirements)

US (2.4GHz/5GHz/6GHz): 24/25/24dBm

EU (2.4GHz/5GHz/6GHz): 18/22/19dBm

Antenna type

4x4 + 2x2 MIMO Embedded Antenna

Antenna gain

2.4 GHz: Peak Gain 3dBi

5 GHz: Peak Gain 5dBi

6 GHz: Peak Gain 6dBi

Minimum receive sensitivity

Min. Rx sensitivity up to -101 dBm

Band steering

Yes

WDS/Mesh^*2

Yes

Fast roaming

Pre-authentication, PMK caching and 802.11r/k/v

DCS

Yes

Load balancing

Yes

Advanced Cellular Coexistence

Yes

Encryption

WEP

WPA

WPA2

WPA3

Authentication

IEEE 802.1X

RADIUS authentication

Access management

L2-isolation

MAC filtering

Rogue AP detection

IPv6

Yes

VLANs

Yes

WMM

Yes

U-APSD

Yes

Operating mode

Nebula cloud managed

Standalone

ZON Utility

Discovery of Zyxel switches, APs and gateways

Centralized and batch configurations:

IP configuration

IP renew

Device reboot

Device locating

Web GUI access

Firmware upgrade

Password configuration

Web UI/CLI

Yes

SNMP

NO

Item

Dimensions (WxDxH)(mm/in.)
180 x 180 x 42 mm / 7.09 x 7.09 x 1.65

Weight (g/lb.)
650g/1.43lb

Packing

Dimensions (WxDxH)(mm/in.)
197 x 190 x 60 mm/ 7.76 x 7.48 x 2.36

Weight (g/lb.)
780g/1.72lb

Included accessories

Mount plate

Mounting screws

MTBF (hr)

711,333

Ethernet port

1 x 1/2.5Gbps LAN

1 x 1Gbps LAN

Power

PoE (802.3)at: power draw 21 W

DC input : 12 VDC 2A

PoE modes

IEEE802.3af: No Wireless

IEEE802.3at: Unrestricted

IEEE802.3bt: Unrestricted

Operating

Temperature
0°C to 50°C/32°F to 122°F

Humidity
10% to 95% (non-condensing)

Storage

Temperature
-40°C to 70°C/-40°F to 158°F

Humidity
10% to 95% (non-condensing)

Radio

FCC Part 15C

FCC Part 15E

ETSI EN 300 328

EN 301 893

EN 303 687

LP0002

EMC

FCC Part 15B

EN 301 489-1

EN 301 489-17

EN55022

EN55024

EN60601-1-2

BSMI CNS13438

Safety

Safety EN 62368

BSMI CNS14336-1
