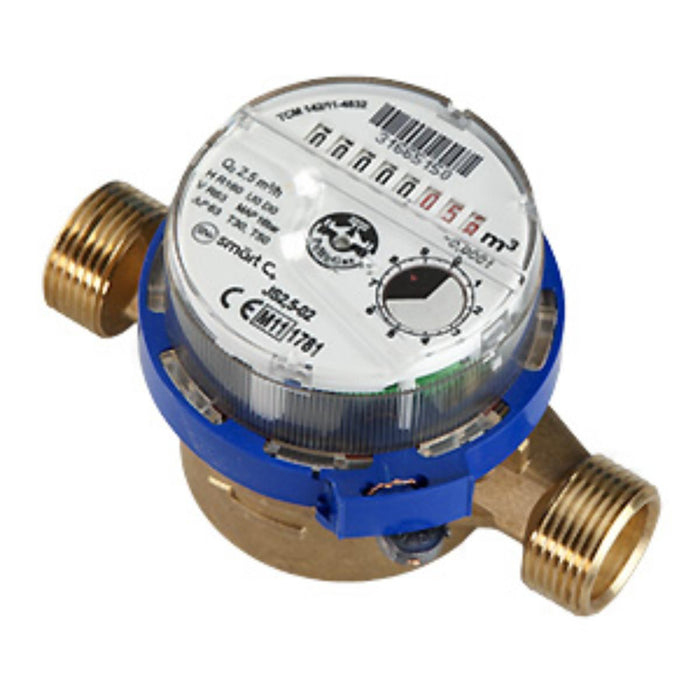

WATER METER 1/2 DRY COLD WATER

For measuring the flow and volume of water with a temperature of up to 30 °C or 50 °C. Suitable for installation on horizontal pipes with the meter oriented upward (H) and on vertical or horizontal pipes with the side-oriented meter (V). SMART C+ water meters are equipped as standard with an 8-roller register (IP65), SN + anti-magnetic protection, a brass body, and are adapted for operation in remote data transmission systems (AMR).

Product features:

Resistance to strong external magnetic fields
Pre-equipped for installation of: radio module for wireless M-bus communication, M-bus module.
Reading reliability meets the most modern MID metrological requirements.
Easy reading of the water meter register.
Hermetically sealed register, resistant to the effects of steam.
Register mechanism with protection against multiple rotation, rotation angle greater than 360 °.
Protection against mechanical tampering.
Protection reducing the effects of water freezing.
The outlet port of the water meter body is adapted for installation of a check valve (optional).
Double-sided rotor bearing.

METROLOGICAL CLASS (mid): R100 - H; R50 - V
Q3 [m3/h]: 2.5
DN [mm]: 15
Length [mm]: 110***
Connection: G¾
Weight [kg]: 0.43
