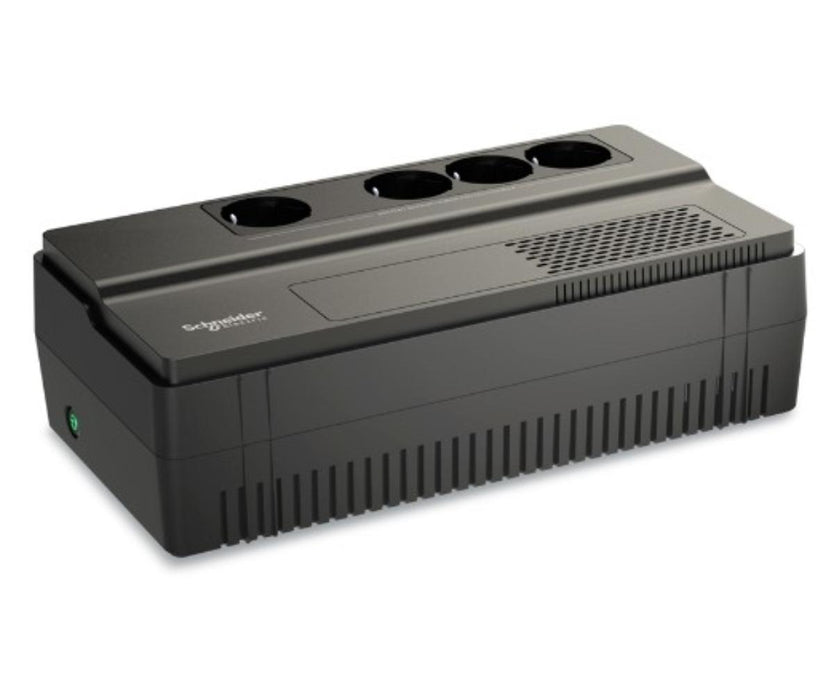

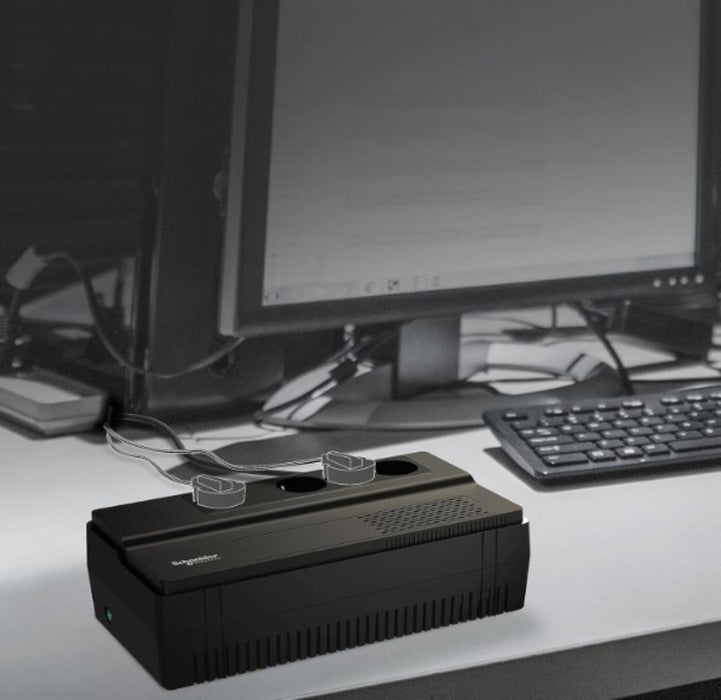

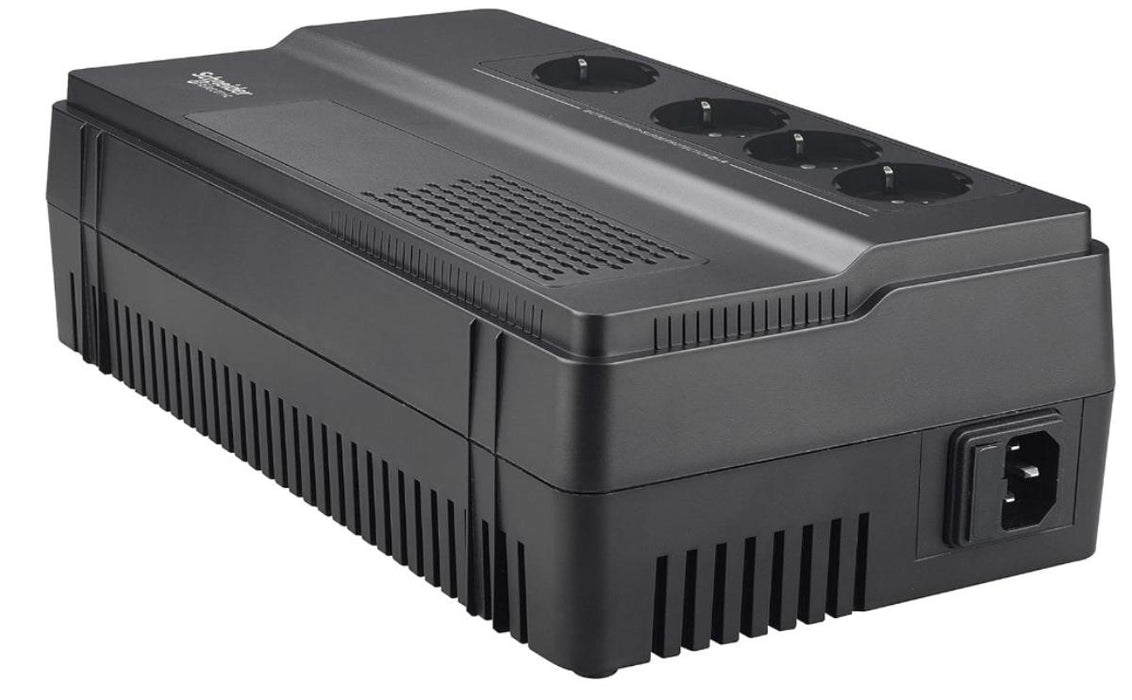

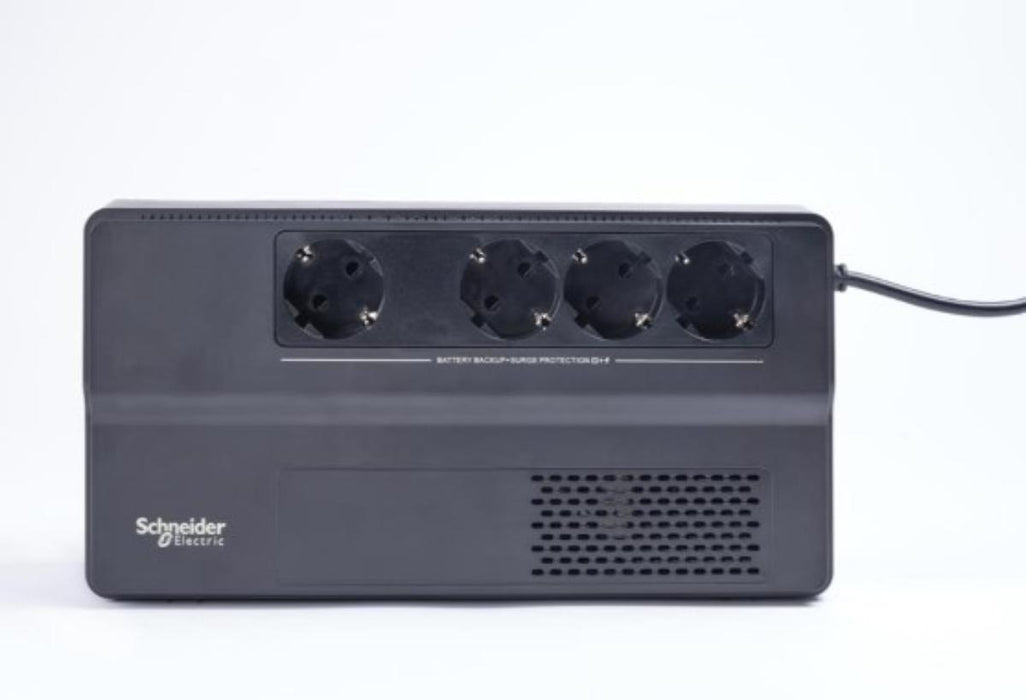

UPS EMERGENCY POWER SUPPLY EASY BVS 1000VA

To select the correct power of the device, it is recommended to consult a specialist. The power must be matched to the power of the consumers and the type of load:

• the rated power of the device must be 20-30% higher than the power of the consumer for resistive loads (heaters, electric ovens, furnaces, stoves, incandescent lamps, etc.). This is necessary due to the high inrush current of the loads. When the load is switched on and during repeated short-term modes, the load for a short period significantly exceeds the rated parameters specified in the technical characteristics of the load;
• when the device is used in combination with consumers with inductive load, the power must be 3 to 5 times greater than the consumed power of the load! (fluorescent lighting, electric motors, pumps, air conditioners, refrigerators and freezers, etc.);
• when the device is used with consumers with capacitive load, the selected power must be 5 to 10 times greater than the consumed power of the load! (switch-mode chargers, LED drivers, switching power supplies, etc.).

If these instructions are not observed, the device may be overloaded and stop functioning, and accordingly the warranty will not cover the damage.
Specifications:

• Technical parameters of Emergency power supply UPS BVS1000I-GR, 230VAC, 600W. Line interactive, modified sine wave
• Brand: SCHNEIDER ELECTRIC
• Input voltage: 230 [VAC]
• Output power: 600 [W]
• Sine wave type: modified
• UPS type: line-interactive
• Battery capacity: 9Ah
• Overall dimensions: 305x161x93 [mm]
• Model: BVS1000I-GR
• Output voltage: 230 [VAC]
• Socket type: Schuko
• Connector type: IEC C14
• Frequency range: 45~65 [Hz]
• Humidity range: 0~90 [%RH]
• Operating temperature: 0~40 [°C]
• Charging time: up to 90% in 8 hours
