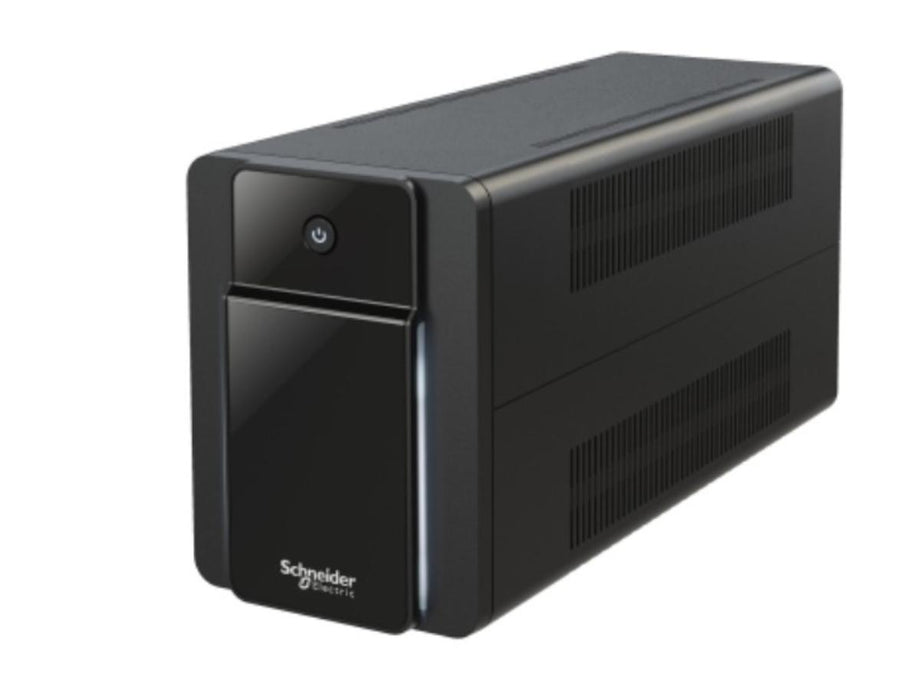

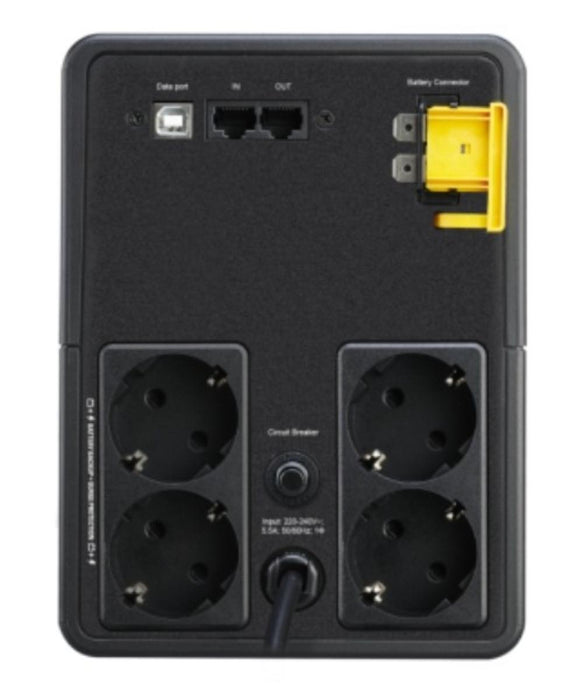

UPS EMERGENCY POWER SUPPLY BXS MI 1200VA

The BXS MI 1200VA UPS emergency power supply is a reliable and effective solution for protecting your electronic equipment from power outages, surges, and voltage fluctuations. The device provides stable power and protection for computers, network devices, routers, and other sensitive electronic appliances. The UPS emergency power supply is a key element for the reliable and secure operation of any electronic system, protecting your investment and minimizing the risk of data loss and interruptions.

Main technical data:
Waveform type: Stepped approximation to a sinewave
Battery curve: C
Battery life: 3-5 years
Battery graph comments: The curve corresponds to the measured runtime data. All measurements were taken with new, fully charged batteries, under typical environmental conditions, with no electrical input and a balanced resistive load (PF = 1.0) at the output.
Data compliance curve measured in accordance with the ENERGY STAR test method for uninterruptible power supplies. All measurements were taken in normal mode(s), under typical environmental conditions, with an electrical input voltage of 230V/50Hz and a balanced resistive load (PF = 1.0)
Number of cables: 1
Battery type: Lead-acid battery
Included battery modules: 0
Transfer time 6 ms typical : 10 ms maximum
Input voltage: 230 V
Cable length: 1.22 m
Output frequency (sync to mains): 50/60 Hz +/- 1 Hz sync to mains
Maximum configurable power (watts): 650 W
Nominal power in VA: 1200 VA
Nominal power in W: 650 W
Extendable runtime: 0
UPS size: WS
Liquid electrolyte value: 0
Typical recharge time: 8 h
Topology: Line interactive
Surge energy rating: 273 J
General characteristics:
Efficiency at full load: 140...300 V
Power factor: 0.54
Network frequency: 50/60 Hz +/- 5 Hz auto-sensing
Communications and management:
Control panel: LED status display with online : on battery indicators
Compliance:
Product certifications:
CE
CB
Standards: EN/IEC 62040-1:2019/A11:2021
Mounting type: Not suitable for rack mounting
Net product weight: 7.6 kg
USB compliant: No
Width: 14 cm
Height: 19 cm
Depth: 39 cm
Color: black
Batteries and runtime:
Battery life: 3-5 years
Battery capacity: 9.0 Ah
Battery voltage: 12 V
Environmental:
Permissible operating altitude: 0...3000 m
Storage altitude: 0-3000 m
Acoustic level: 40 dBA
Relative humidity: 0-95% non-condensing
Storage relative humidity: 0-95% non-condensing
IP degree of protection: IP20
Storage ambient temperature: -15-40 °C
Operating ambient air temperature: 0-40 °C
Specifications:
Nominal power: 1200 VA
Product range: Back-UPS
Type: Home and Office electronics
