Uni-T UT511 High-Voltage Insulation Resistance Tester

Uni-T UT511 High-Voltage Insulation Resistance Tester

by Uni-t
€116,90 - €116,90
€116,90
€116,90 - €116,90
€116,90
SKU DGT0453727
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Uni-T UT511 High-Voltage Insulation Resistance Tester

The Uni-T UT511 High-Voltage Insulation Resistance Tester is the entry-level model in the UT510 series, designed for insulation measurements at voltages up to 1000 V and a range up to 10 GΩ. It is ideal for diagnosing electrical installations, motors, or medium-voltage equipment where higher test voltages are not required. The device offers PI and DAR measurements, a memory for 18 results, and a clear 9999-count display with a bar graph, which facilitates quick assessment of insulation condition without the need for additional software. Automatic discharge after measurement and high-voltage indication reduce the risk of working with a charged object. Additional messages for out-of-range and low battery help prevent erroneous readings.

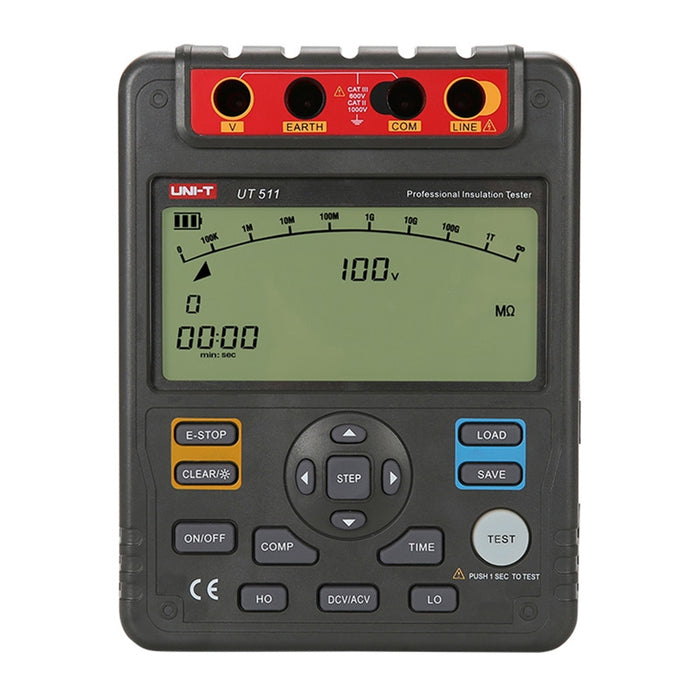

Uni-T high-voltage insulation resistance tester on a gray background

Included

  • Uni-T UT511 Tester
  • Red test lead (two-pin) with alligator clip
  • Test leads (single-pin) with alligator clips (2 pieces)
  • AC adapter
  • Battery pack



Manufacturer Uni-T
Model UT511
Test voltages 100 V / 250 V / 500 V / 1000 V
Insulation resistance measurement range up to 10 GΩ
Accuracy ±(3% + 5)
Display 9999 + bar graph (30 segments)
Data memory 18 measurements
Additional features Continuous mode and timed measurement (~30 min), automatic discharge after measurement, high-voltage alarm, low-battery indicator
Power supply 8 × 1.5 V (LR14)
Dimensions 202 × 155 × 94 mm
Weight approx. 1.2 kg
