Uni-T UT261A Motor Phase and Rotation Direction Tester

Uni-T UT261A Motor Phase and Rotation Direction Tester

by Uni-t
€47,90 - €47,90
€47,90
€47,90 - €47,90
€47,90
SKU DGT0453696
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Uni-T UT261A Phase Sequence and Motor Rotation Tester

The Uni-T UT261A is a compact phase sequence tester designed for quick inspection of three-phase installations. The device measures AC voltage in the range of 40–690 V at frequencies of 15–400 Hz, determines phase sequence, and detects missing phases, with results displayed on an easy-to-read LCD screen. Powered directly from the circuit under test, it requires no batteries and is ready for use at any time. Its compact dimensions of 123 × 71 × 29 mm, weight of 160 g, and included test leads with alligator clips facilitate transport, quick connection, and convenient use during daily electrical installation diagnostics.

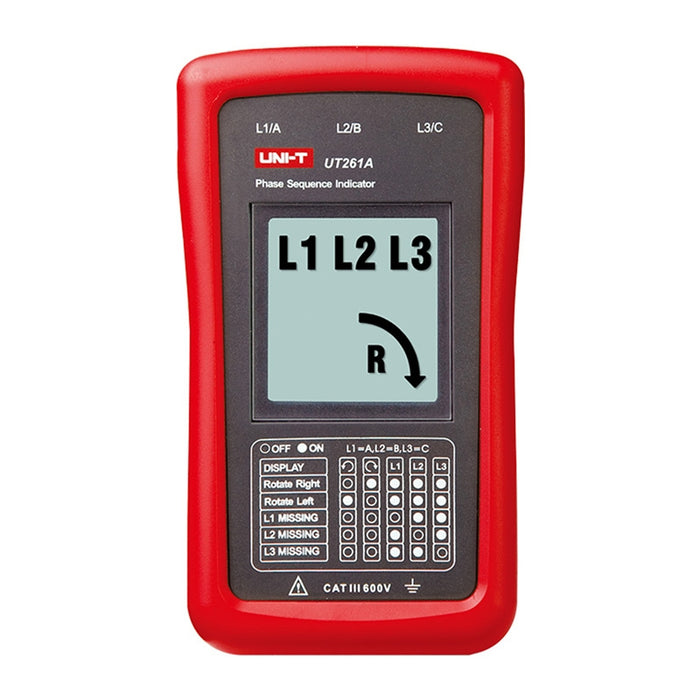

Phase sequence tester with a display indicating the correct rotation direction of phases L1, L2, and L3.

Included

  • Phase sequence indicator
  • Test leads with alligator clips x3
  • Carrying case
  • User manual



Specifications

Manufacturer Uni-T
Model UT261A
Type Phase sequence indicator
AC Voltage 40V ~ 690V
Frequency 15Hz ~ 400Hz
Operating current < 1mA
Functions Phase sequence indicator, phase loss indicator
Power supply From the circuit under test
Dimensions 123 x 71 x 29 mm
Weight 160 g
Color Red and gray
Certifications CE, UKCA, cETLus
