Uni-T UT221 Digital Current Meter

Uni-T UT221 Digital Current Meter

by Uni-t
€92,90 - €92,90
€92,90
€92,90 - €92,90
€92,90
SKU DGT0445070
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

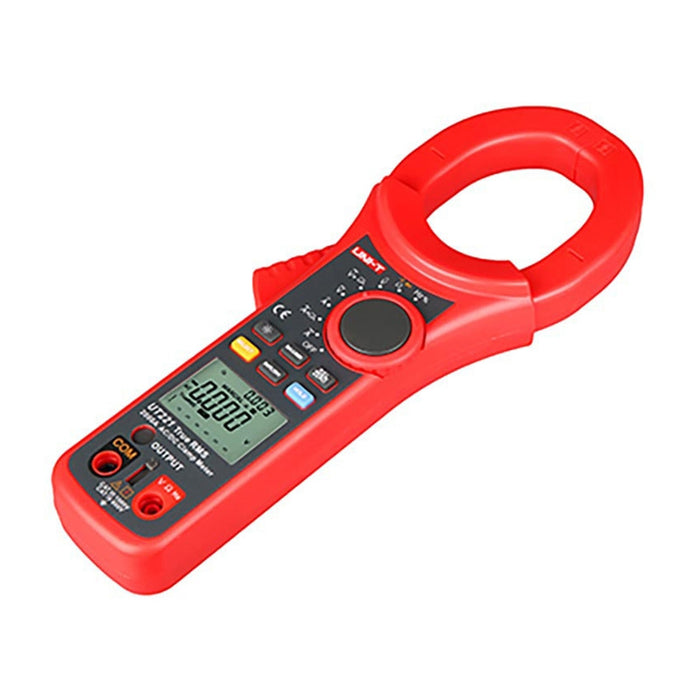

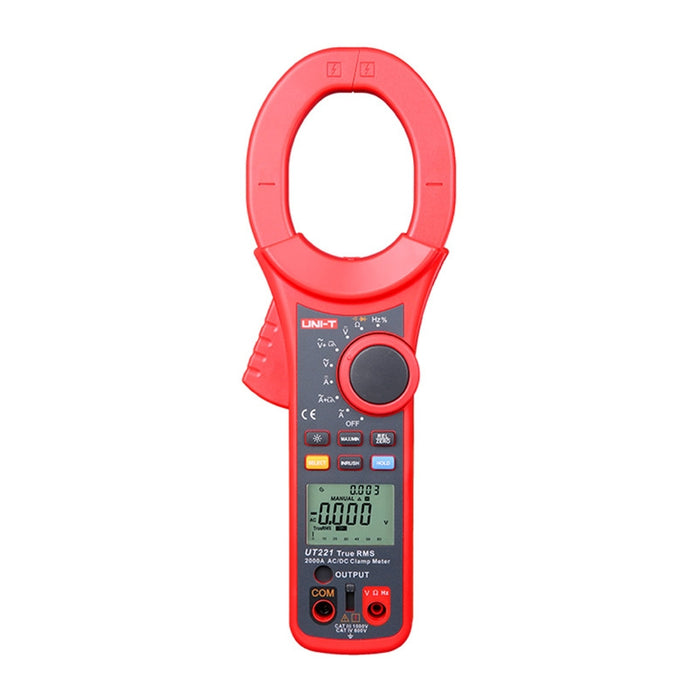

Uni-T UT221 digital clamp meter

The Uni-T UT221 is an advanced clamp meter designed to measure high AC and DC currents up to 2000 A. With a large jaw opening of 63 mm and automatic range switching, the device performs well when working with complex electrical and industrial installations. The model allows for measuring AC voltage up to 750 V, DC voltage up to 1000 V, resistance up to 66 MΩ, and frequency up to 20 MHz. Additionally, it offers True RMS for AC voltage and current, duty cycle measurement, a low-pass filter, inrush current measurement, and relative mode, which expands its capabilities when diagnosing more demanding systems.

UNI-T digital clamp meter clamped onto a thick red cable in a distribution cabinet.

Convenient operation and features supporting daily work

A maximum reading of 6000 and a 66-segment analog bar graph make it easy to observe changes in measured parameters. The meter is equipped with MIN/I-OUT, Data Hold, MAX, diode test, and continuity buzzer functions, allowing for convenient performance of a variety of measurements. A clear set of icons, a low-battery indicator, and a robust design measuring 298 × 107 × 47 mm and weighing 726 g make the Uni-T UT221 a practical tool for more demanding measurement applications.

Voltage measurement with a UNI-T meter by an operator wearing protective gloves in a control cabinet.

Included

  • Clamp meter
  • Test leads (1 pair)
  • Output cable
  • 9V battery (6F22)
  • Carrying case
  • User manual

Specifications

Manufacturer Uni-T
Model UT221
Product type True RMS digital clamp meter
AC current range 2000 A ±(2.5% + 5)
DC current range 2000 A ±(2.5% + 5)
AC voltage range 750 V ±(1.2% + 5)
DC voltage range 1000 V ±(0.8% + 1)
Resistance measurement range 66 MΩ ±(1% + 2)
Frequency range 20 MHz ±(0.1% + 3)
Duty cycle range 10% – 90%
Maximum display reading 6000
Functions True RMS, diode test, continuity test, Data Hold, MAX, Relative mode, low-pass filter, inrush current measurement, analog bar graph, automatic range switching, low battery indicator
Jaw opening 63 mm
Power supply 9V battery (6F22)
Display dimensions 43 × 30 mm
Dimensions 298 × 107 × 47 mm
Weight 726 g
Certifications CE, UKCA, cETLus
