Uni-T LM320E Protractor

Uni-T LM320E Protractor

by Uni-t
€24,90 - €24,90
€24,90
€24,90 - €24,90
€24,90
SKU DGT0445076
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

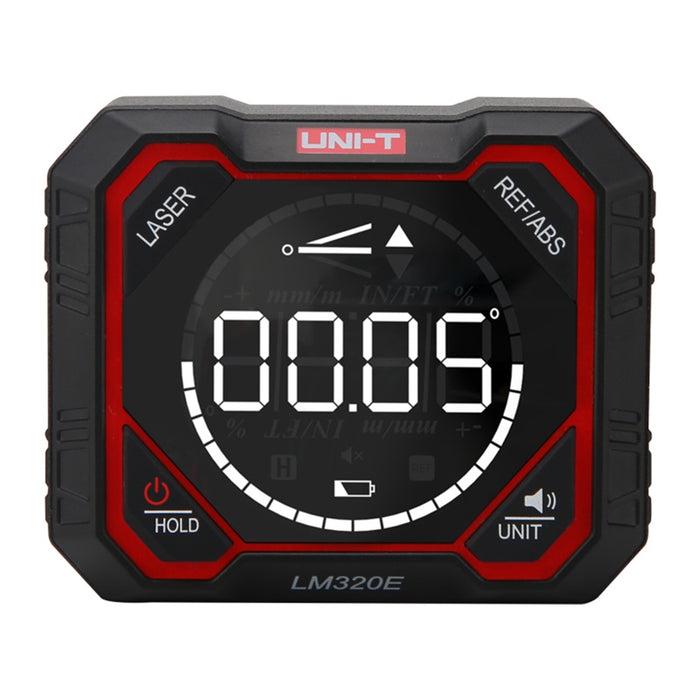

Uni-T LM320E Angle Measurer

The Uni-T LM320E Angle Measurer is an advanced angle measurement device equipped with a laser function that facilitates the establishment of reference lines. It offers measurement within a 4×90° range and features two laser lines, allowing for more precise spatial alignment of components. Support for various units and measurement modes increases its versatility, and the magnetic base ensures stable mounting. The backlit screen with auto-rotation makes it easy to read results, and the compact design makes the device well-suited for everyday use.

UNI-T angle finder mounted on a metal structural profile in a workshop.

Included

  • Angle finder
  • USB-C cable
  • User manual



Specifications

Manufacturer Uni-T
Model LM320E
Type Angle finder with laser
Measurement range 4 × 90°
Resolution ±0.05°
Accuracy ±0.2°
Repeatability ±0.2°
Units °, %, mm/m, in/ft
Laser lines 2
Laser accuracy ±3 mm / 5 m
Operating time Up to 8 h
Functions Relative and absolute measurement, Data Hold, automatic screen rotation, backlight
Base Double-sided magnetic
Power supply 1000 mAh rechargeable battery
Dimensions 83.5 x 70 x 35.5 mm
Weight 180 g
Certifications CE, RoHS
