TP-Link Gigabit Single-Mode WDM Bi-Directional SFP Module

TP-Link Gigabit Single-Mode WDM Bi-Directional SFP Module

by TP-LINK
€21,77 - €21,77
€21,77
€21,77 - €21,77
€21,77
SKU DGT0420249
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Characteristics

Product colour Metallic
Hot-swap Yes

Power

Input voltage 3.3 V

Operating conditions

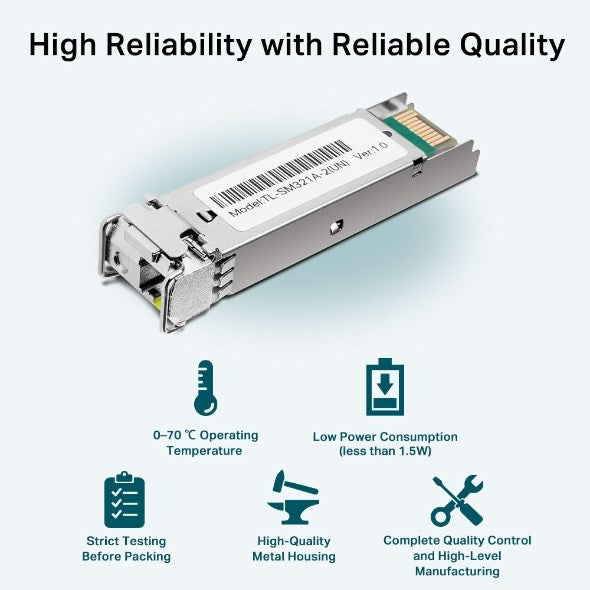

Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 80 °C
Operating relative humidity (H-H) 10 - 90%
Storage humidity (H-H) 5 - 90%

Performance

Supported multimode fibre (MMF) No
SFP transceiver type Optical fibre
Optical Ethernet cabling technology 1000BASE

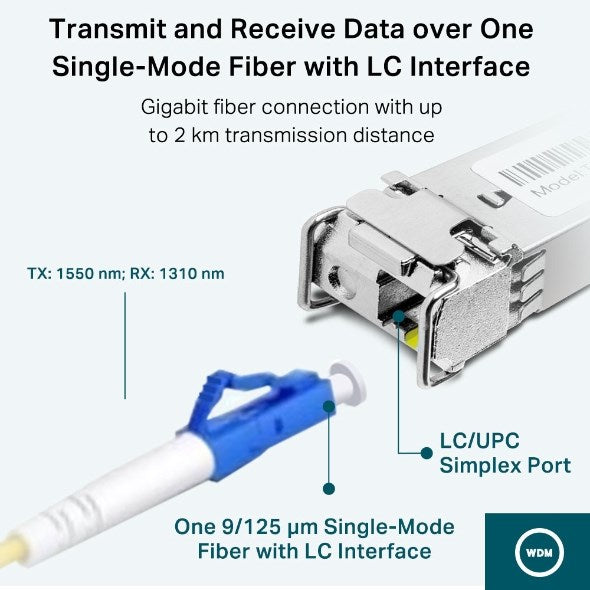

Supported optical cable diameters (core/cladding) 9/125 µm
Maximum data transfer rate 1250 Mbit/s
Single-mode fibre (SMF) supported Yes
Receive wavelength (max.) 1310 nm
Optical connector LC (UPC)
Maximum transmission distance 1000 m

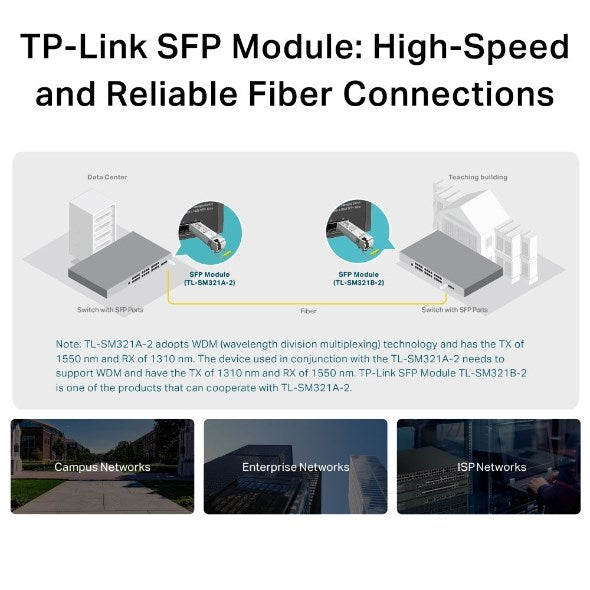

Wavelength-division multiplexing (WDM) Yes
Interface type SFP
SFP transceiver standard BX
Network standards IEEE 802.3z
Transmit wavelength (max.) 1550 nm

Packaging data

Packaging depth 122.5 mm
Packaging width 81.5 mm
Packaging weight 60 g
Packaging height 38.5 mm

Package contents

Quantity per package 1 pc.

Certificates

Certificates of conformity RoHS

Logistics data

Harmonized System (HS) code 85369010
