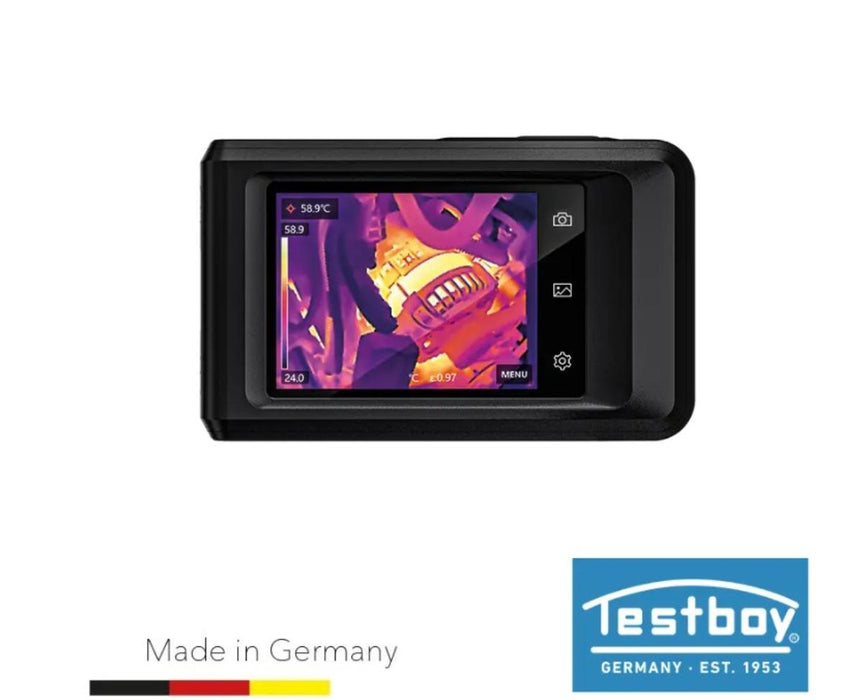

THERMOGRAPHIC CAMERA TESTBOY TV 296

The new Testboy TV 296 infrared thermal imaging camera is comfortable to hold, easy to use and compact. The device combines a practical design with a package of remarkable features. This thermal camera stands out among the many thermal imaging cameras on the market with a real resolution of 256x192 pixels (=49,152), a visual 8-megapixel camera and a 25 Hz sensor for data collection. The camera has adjustable emissivity for more accurate measurements on different surfaces, a choice of 8 colour palettes for better visualisation of temperature differences, a convenient USB interface for fast data transfer, and a bright 3.5-inch colour LCD display for a clear real-time image. For even greater flexibility, the device offers wireless connectivity via Bluetooth and Wi-Fi – ideal for remote control and sharing results.

Specifications:

Size: 138.5x85.2x23,6mm
Resolution: 256 x 192 pixels
Accuracy: ±2 °C or ±2% (whichever is greater)
Protection class: IP54
Storage temperature: -20 - 60°C / -4 - 140°F
Humidity: < 95% non-condensing
Field of view (FOV) / Minimum focus distance: 50° x 37.2° / 0.3m
Sensor data collection: 25Hz
Spectral range: 7.5 - 14 µm
CCD camera: 3264x2448 (8MP)
Temperature range: - 20-400°C-4-752°F
Emissivity correction: Adjustable from 0.01 to 1.0 (in steps of 0.01)
Colour palettes: 8: White Hot, Black Hot, Rainbown, Irombow, Red Hot, Fusion, Rain, Blue Red
Storage medium: Integrated flash memory (16 GB) with USB-C interface
Data format: JPG, MP4
Bluetooth / network interface: BT 4.2
Power: Rechargeable battery 2.6Ah
Weight: 218 g
Colour: Black
