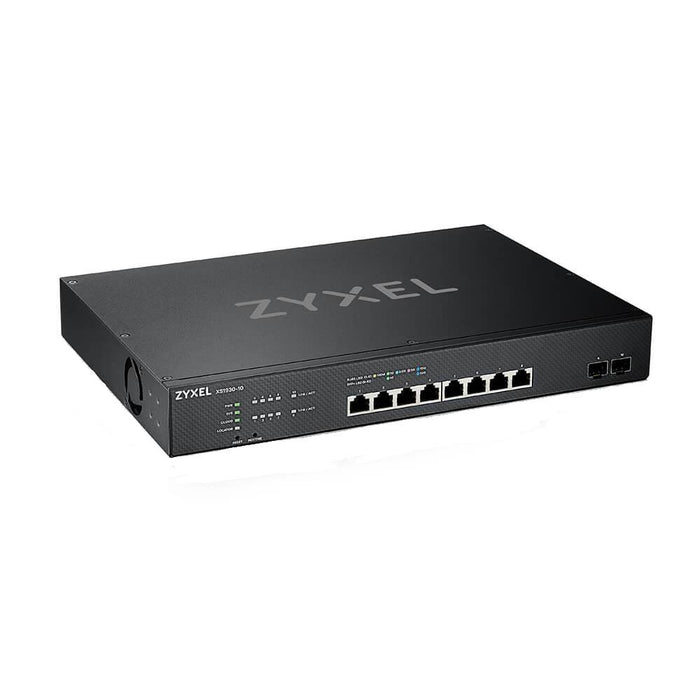

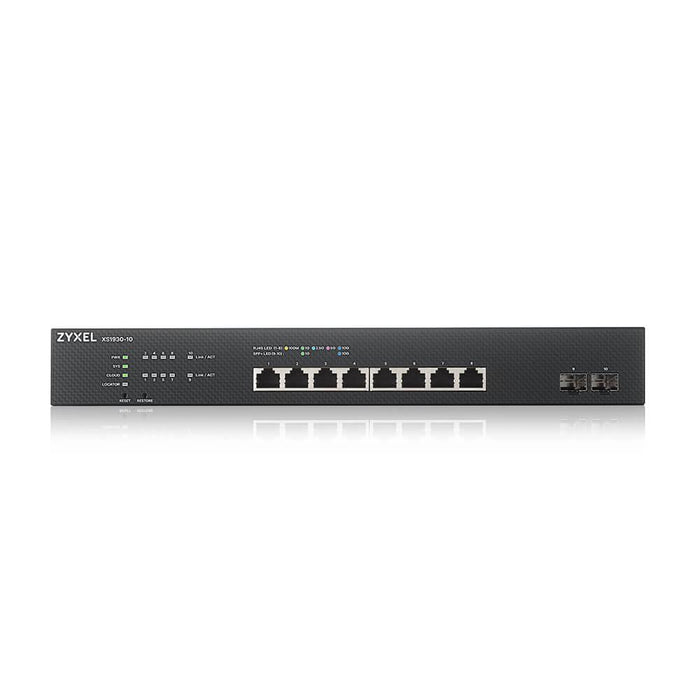

Switch ZYXEL XS1930-10, 8-port managed, 10Gb, 2xSFP, for mounting in a cabinet

Switch, Fixed Port type

Total number of ports 10

Basic ports, type 10x10GBase-T

Uplink ports 2 dual personality

Management Web interface; Management through SNMP; Remote firmware upgrade by Web; Configuration saving and retrieving; DHCP; NTP; SNMP v1, v2c, v3; SNMP trap group; RMON (1, 2, 3, 9); ICMP echo/echo reply; Syslog; IEEE 802.1AB LLDP; IEEE 802.1AB LLDP-MED

Stackable ZyXEL iStacking™

Fans Fanless design

Power supply Input voltage: 100 - 240 V AC, 50/60 Hz; Max. power consumption: 94.1 (watt)

Routing Layer 2 Only

Memory (Flash, RAM) -

Routing/switching capacity, Gbps 240 Gbps

Bandwidth, Mpps 178.6 Mpps

MAC addresses 16000 MAC address table size

VLAN (number, standards) 802.1Q Static VLANs/Dynamic VLANs: 1 K/4 K; Port-based VLAN; Protocol-based VLAN; IP Subnet-based VLAN; MAC-based VLAN; Private VLAN; Voice VLAN; VLAN ingress filtering; GVRP; LACP algorithm of source/destination MAC/IP; L2PT

QoS 8 hardware queues per port; 802.1p queuing methods: SPQ, WRR, WFQ; Storm control: broadcast, multicast, unknown unicast (DLF); 802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable); DiffServ (DSCP); Rate limiting per IP/TCP/UDP per port

L2 network standards IEEE 802.3ab, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3z, IEEE 802.3x flow control, IEEE 802.3az EEE support, IEEE 802.3ad LACP aggregation, IEEE 802.1AB, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X

L3 network standards -
IPv6 functionality IPv6 over Ethernet, IPv6 addressing architecture, Dual stack, ICMPv6, Path MTU, Minimum path MTU size of 1280, Encapsulation for maximum PMTU of 1500, Neighbor discovery, DHCPv6 relay

Security 802.1X, Port security, Layer 2 MAC filtering, Layer 3 IP filtering, RADIUS, TACACS+, SSL, MAC freeze, DHCP snooping, ARP inspection, Static IP-MAC-Port binding, Port isolation, IP source guard, ACL packet filtering (IPv4/IPv6), CPU protection

Dimensions, mm 440 x 330 x 44.5 mm, 19" rackmount
