Description

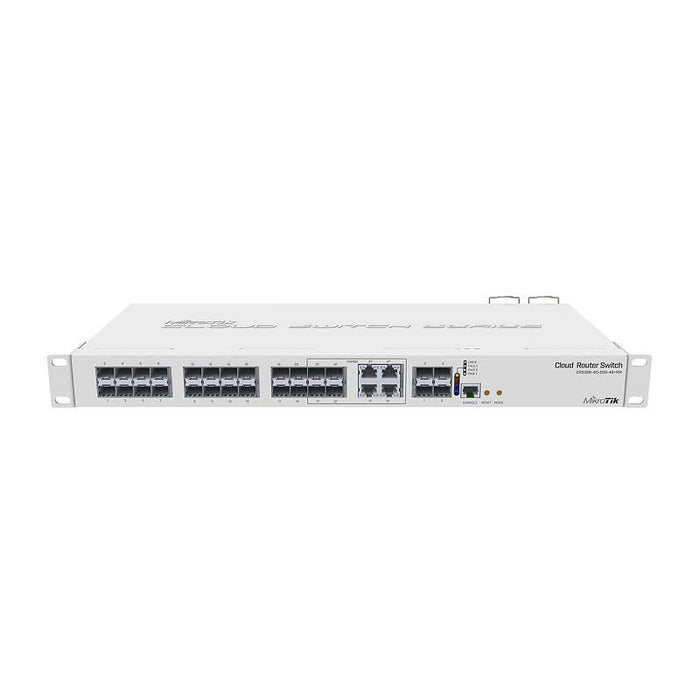

CRS328-4C-20S-4S+RM is a switch with 28 independent and 4 combined ports. The device has twenty SFP ports,
four SFP+ ports for 10G modules and four combo ports, with the option to use SFP
or RJ45 ports from the combined group. These ports can be selected through the software, so if
you have plugged in all eight cables, you can use scripting to select which of the combined
ports to work.

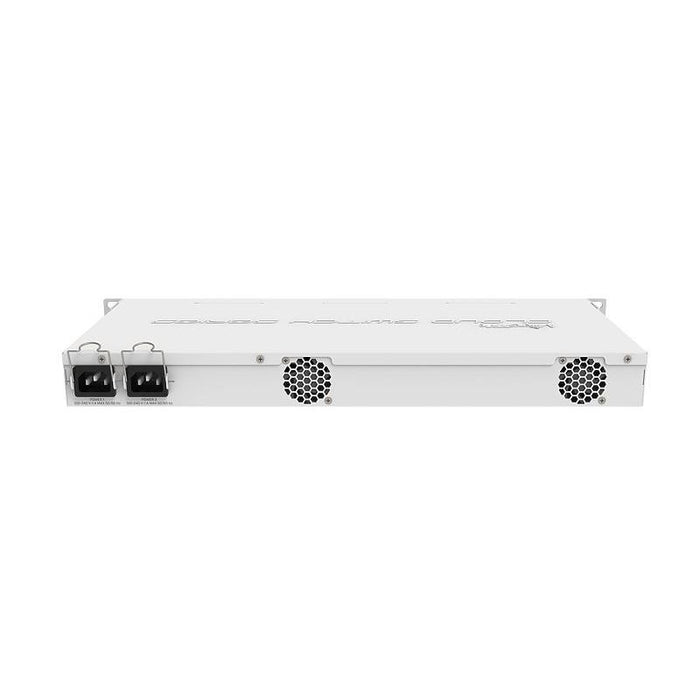

The device comes with a 1U rackmount case and two 100-240 V power supplies that can be replaced,
in case one fails. An RJ45 console port is available for management and configuration, and the mode button
can be customized to execute any of the RouterOS commands.
CPU Frequency: 800MHz
CPU Cores: 1
Processor: 98DX3236
RouterOS License Level: 5
Dimensions: 443 x 200 x 44 mm
RAM Memory: 512 MB
Internal memory: 16Mb
SFP Port: 20
SFP+: 4
Maximum power consumption: 43W
Serial Port: RJ45
PCB temperature monitor: Yes
Voltage monitor: Yes
Number of AC inputs: 2
Input voltage: 100-240 V
