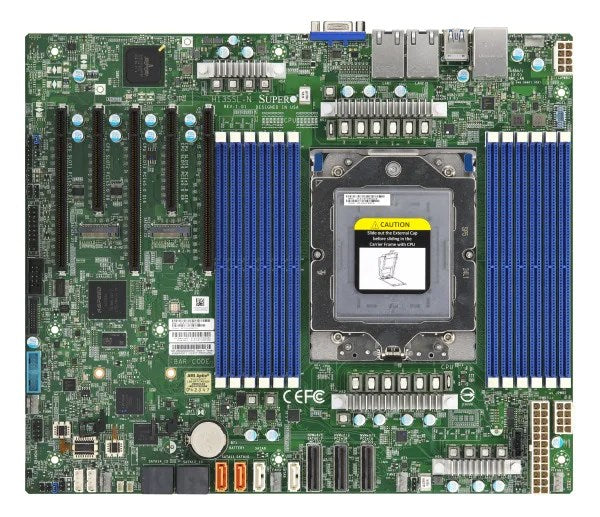

Supermicro MBD-H13SSL-N-O motherboard Socket SP5 ATX

Supermicro MBD-H13SSL-N-O motherboard Socket SP5 ATX

by Supermicro
€1.343,33 - €1.343,33
€1.343,33
€1.343,33 - €1.343,33
€1.343,33
SKU DGT0155885
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Processor

Processor socket Socket SP5
Compatible processor series AMD EPYC 9004
Processor manufacturer AMD
Supported processor sockets Socket SP5

Features

Component for Server
Motherboard form factor ATX
Motherboard chipset family AMD

Memory

Supported memory types DDR5-SDRAM
Memory voltage 1.1 V
Memory slot type DIMM
Supported memory speed (max.) 4800 MHz
Number of memory slots 12
Supported memory capacities 48GB, 32GB, 64GB, 128GB, 24GB, 16GB
Maximum internal memory 3 TB
ECC compatibility ECC

Operating conditions

Storage humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 8 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 10 - 35 °C

Weight and dimensions

Depth 256.5 mm
Width 304.8 mm

Network

Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
LAN controller Broadcom BCM5720

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of chassis fan connectors 6
TPM connector Yes
Number of SATA III connectors 8

BIOS

System Management BIOS (SMBIOS) version 3.5
BIOS type AMI
BIOS memory 32 Mbit
ACPI version 6.4

Storage controllers

Number of supported hard drives 8
Supported storage interfaces SATA III, M.2
Supported drive types HDD and SSD

Rear panel ports

Number of COM ports 1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 6
IPMI LAN (RJ-45) port Yes
Number of VGA (D-Sub) ports 1
Ethernet LAN (RJ-45) ports 1

Expansion slots

PCI Express x16 (Gen 5.x) slots 3
PCI Express x8 slots 2

Safety warning

Warnings Do not open or disassemble the motherboard., The motherboard may contain electronic components hazardous to health – avoid direct contact., Use only in a dry and well-ventilated room.
