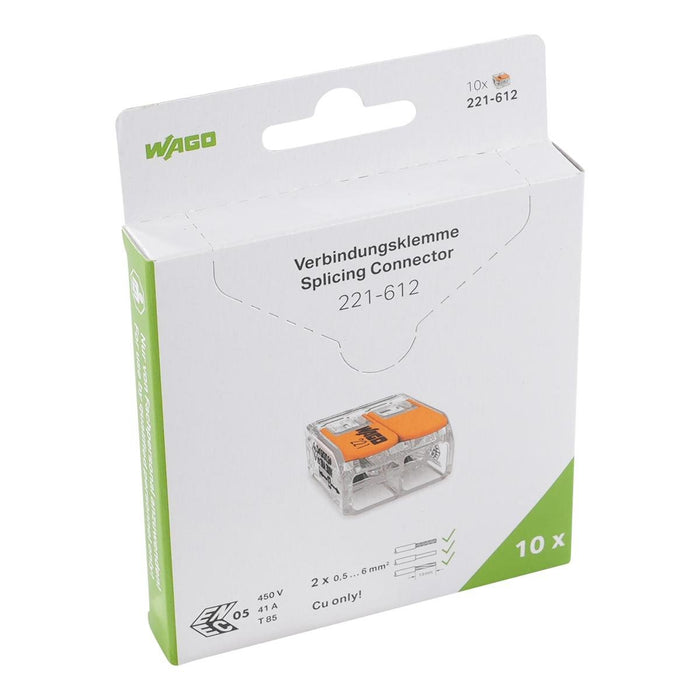

SPLIT TERMINAL 10PCS 2X0.5-6MM2 WAGO

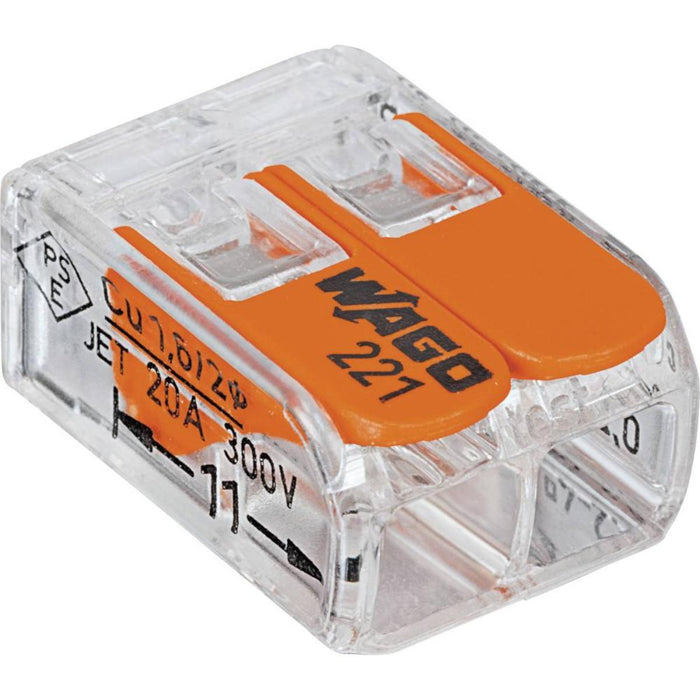

Lever-type connector for splicing: for all types of conductors; max. 6 mm²; 2-conductor; transparent housing; Ambient air temperature: max 85°C (T85).

Advantages:

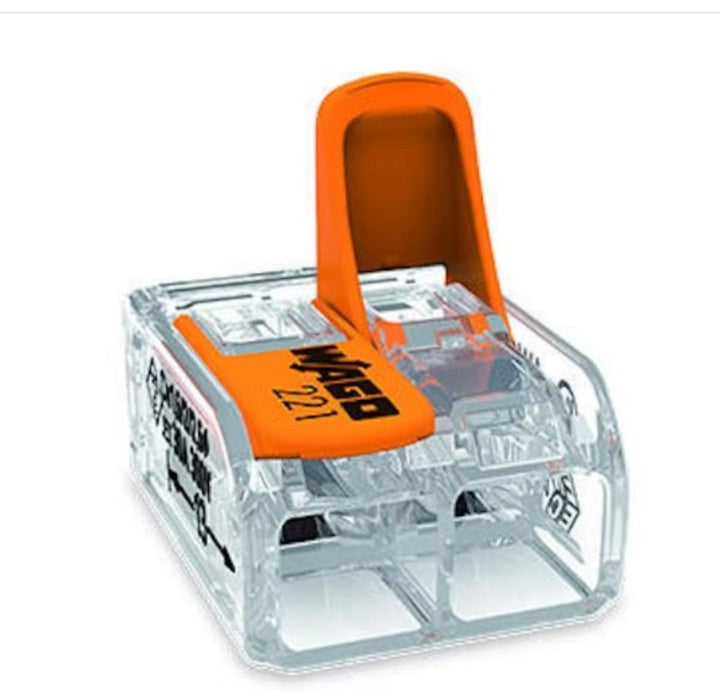

• Easy to use: lever up, push in, lever closed
• Available as 2-, 3- and 5-conductor terminal blocks
• Convenient connection of conductors from 0.5 to 6 mm²
• Mounting on all types of rails
• Saves time for installers and device manufacturers
• Quick installation of devices with higher power requirements
• Safe laying of long cables with larger conductor cross-sections
• Mounting adapter for standard mounting
• Individual fixings are possible

Connection data:

• Connection points 2
• Total number of potentials 1
• Connection technology CAGE CLAMP®
• Actuation type Lever
• Connectable conductor materials Copper
• Nominal cross-section 6 mm² / 10 AWG
• Solid conductor 0.5 … 6 mm² / 20 … 10 AWG
• Stranded conductor 0.5 … 6 mm² / 20 … 10 AWG
• Finely stranded conductor 0.5 … 6 mm² / 20 … 10 AWG
• Strip length 12 … 14 mm / 0.47 … 0.55 inch
• Wiring direction Side-entry wiring

Ratings per IEC/EN:

• Ratings per EN 60664
• Rated voltage (II/2) 450V
• Rated impulse voltage (II/2) 4kV
• Rated current 41 A
• Legend (ratings) (II / 2) ≙ Overvoltage category II / Pollution degree 2

Ratings per UL:

• Approvals per UL 486C
• Rated voltage UL (Use Group C) 600V
• Rated current UL (use group C) 30A

Environmental requirements:

• Ambient temperature (operation) +85 °C
• Continuous operating temperature 105 °C
• Temperature marking per EN 60998 T85

Material data:

• Colour transparent
• Cover colour transparent
• Material group IIIa
• Insulating material Polycarbonate (PC)
• Flammability class per UL94 V2
• Fire load 0.064MJ
• Actuator colour orange
• Weight 3 g

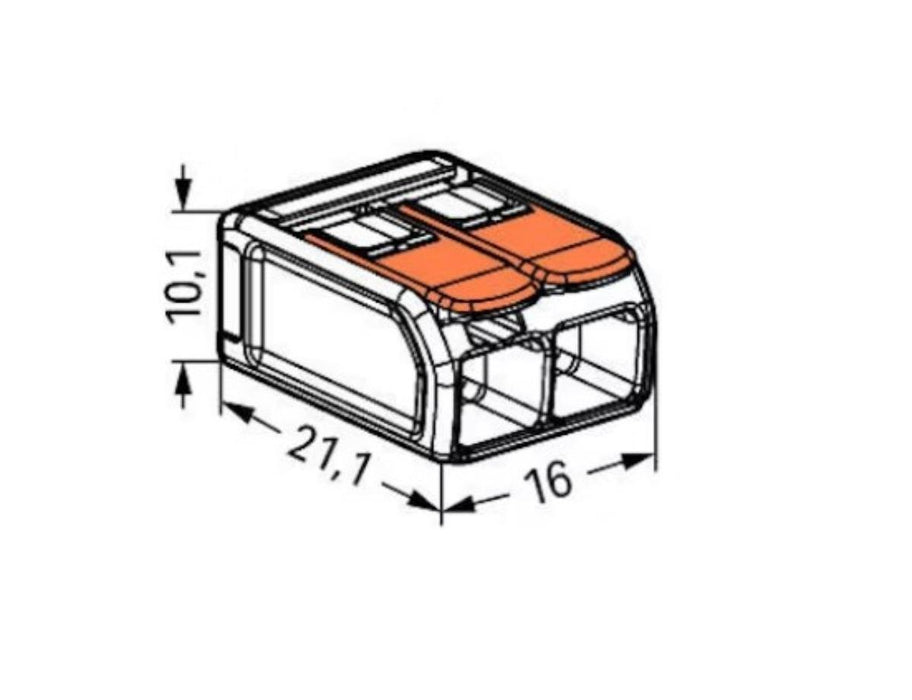

Physical data:

• Width 16 mm / 0.63 inch
• Height 10.1 mm / 0.398 inch
• Depth 21.1 mm / 0.831 inch
• Product environmental compliance:
• RoHS compliance status Compliant, no exemption
