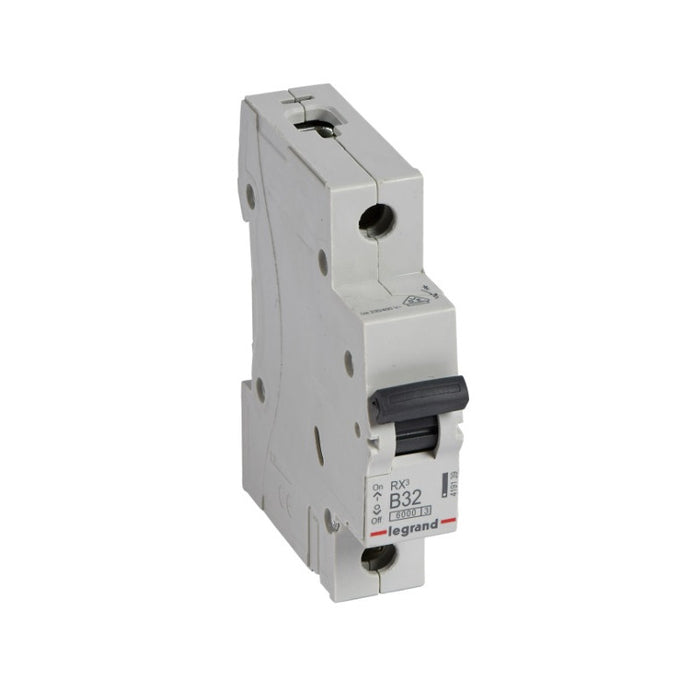

Breaking capacity 6000A according to IEC 60898 - 1 standard for domestic installations. Tripping threshold in case of short circuit between 96A and 160A (B curve between 3 In and 5 In) . Can be supplied either by copper cable, busbar (top or bottom side) or branch busbar (bottom side). Protected against solid objects larger than 12.5 mm ("finger protection"): IP20 according to IEC/EN 60529 standard. Maximum level of limitation of the energy leakage (energy limitation class 3 according to IEC 60898 - 1 standard). This device complies with the requirements for the restriction of substances and is designed in an environmentally friendly process.
This product must be installed in accordance with the installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use may result in the risk of electric shock or fire. Before carrying out the installation, read the instructions and take into account the specific installation location of the product. Do not open, disassemble, alter or modify the device, except when expressly required by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorized opening or repair completely voids all obligations and rights to replacement and warranties. Use only original Legrand brand accessories.
Installation depth: 44 mm Release characteristic: B
Number of poles (total): 1 Number of protected poles: 1
Rated current: 32 A Rated voltage: 230 V
Rated insulation voltage: Ui 500 V Voltage type: AC
Rated impulse withstand voltage: Uimp 4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 6 kA
Frequency: 50-60 Hz Current limitation class: 3
Built-in installation: Yes Simultaneous switching of neutral wire: No
Pollution degree: 2 Possible additional equipment pcs
Width in number of module distances: 1 Degree of protection (IP) IP20
Explosion-proof: No
DIMENSIONS IN MM:
Width: 17.7 mm Height: 88.5 mm Depth: 77.8 mm
Impact resistance rating (IK): IK02 Storage temperature: -40-70 °C
Rated voltage: 210-250 V
Electrical supply direction: Top or bottom Terminal marking indication: Yes
Color: Gray Mounting method: DIN rail
RAL number: 7035 Halogen-free: No
Connection type: Screw terminal, busbar and cable Label/information surface space: No
