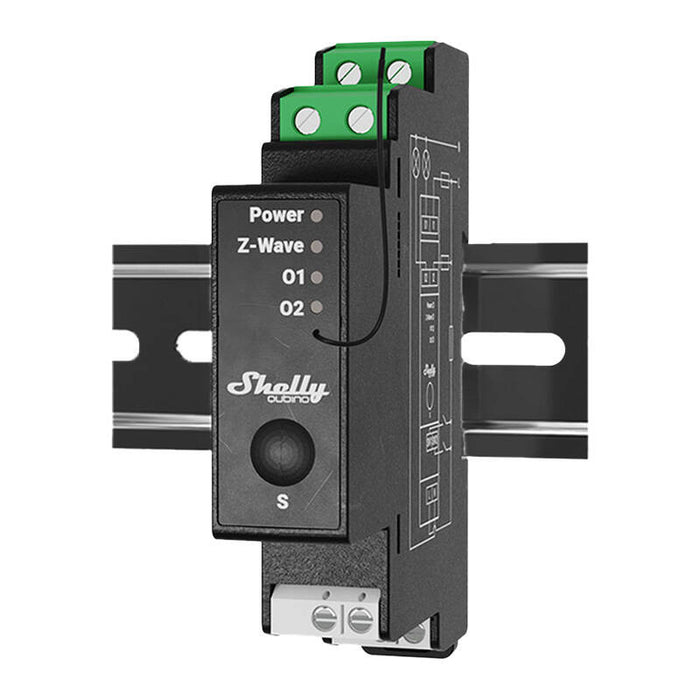

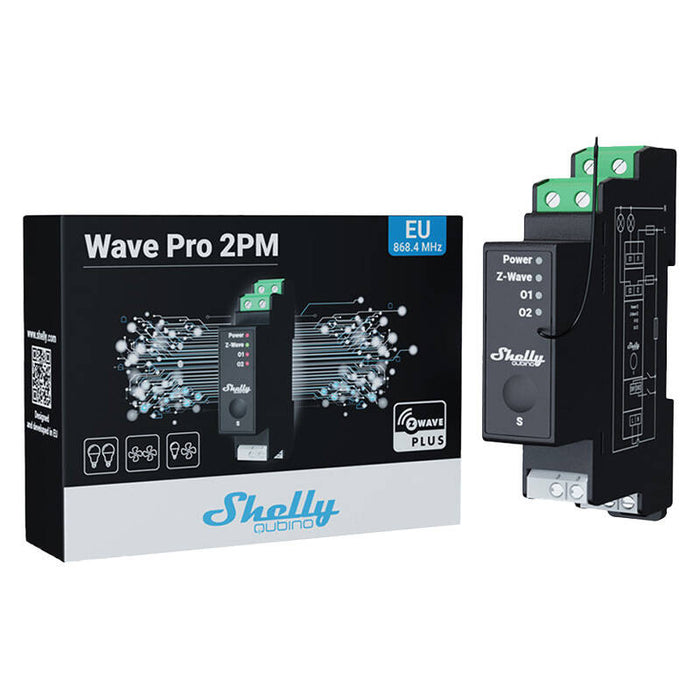

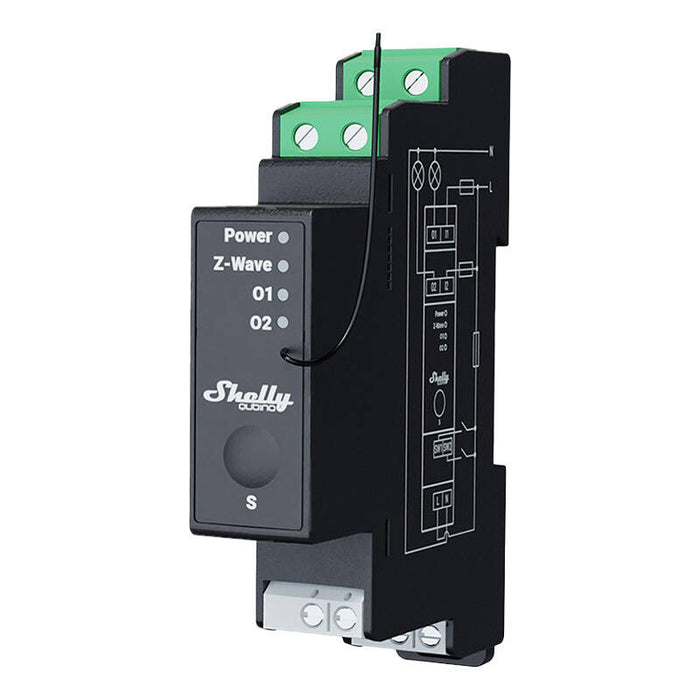

Shelly Qubino Pro 2PM DIN rail Relay, 2-channel, Z-Wave (Power measurement)

by Shelly
Original price €174,90 - Original price €174,90
Original price
€174,90
€174,90 - €174,90
Current price €174,90
SKU DGT0088555
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Shelly Qubino Pro 2PM 2-channel DIN rail relay with energy metering

Want to gain full control over lighting and other electrical devices in your home? Meet the Shelly Qubino Pro 2PM! Designed to be mounted on a standard DIN rail, the 2-channel relay features potential-free contacts, providing great flexibility in the area of handling different voltages and a wide range of possibilities in home automation. The ability to control a load of up to 16 A per channel (25 A in total) guarantees reliable operation even for more demanding devices. With its energy metering function, it allows you to track the energy consumption of connected devices, allowing you to consciously manage your energy consumption and reduce your electricity bills.

Unlimited possibilities

Shelly Qubino Pro 2PM is perfect for a variety of home automation scenarios. It can be used to control lighting, heating, ventilation and other electrical devices, giving the user full control over their functions. With it, you can create schedules, scenarios and automated action sequences that will make your home work exactly the way you want it to!



Manufacturer Shelly
Power supply 110 - 240 V AC, 50/60 Hz
Power consumption < 0,3 W
Power measurement [W]. Yes
Max. switching voltage AC 240 V
Max. AC switching current 16 A per channel, 25 A total
Protection against overheating Tak
Overload protection Tak
Overvoltage protection Tak
Range Up to 40 m indoors
Z-Wave® amplifier: Tak
CPU Z-Wave® S800
Z-Wave® frequency bands 868.4 MHz; 865.2 MHz; 869.0 MHz; 921.4 MHz; 908.4 MHz; 916 MHz; 919.8 MHz; 922.5 MHz; 919.7-921.7-923.7 MHz; 868.1 MHz; 920.9 MHz
Maximum transmit power in the frequency bands < 25 mW
Dimensions 94 x 19 x 69 ±0.5 mm
Weight 75 g
Mounting DIN rail
Housing material Plastic
Color Gray
Ambient temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max altitude 2000 m
