New Unica dimmer, rotary type, anthracite
Easy to install.
Unica is designed with smart features to be flexible
Add a designer frame for a complete set

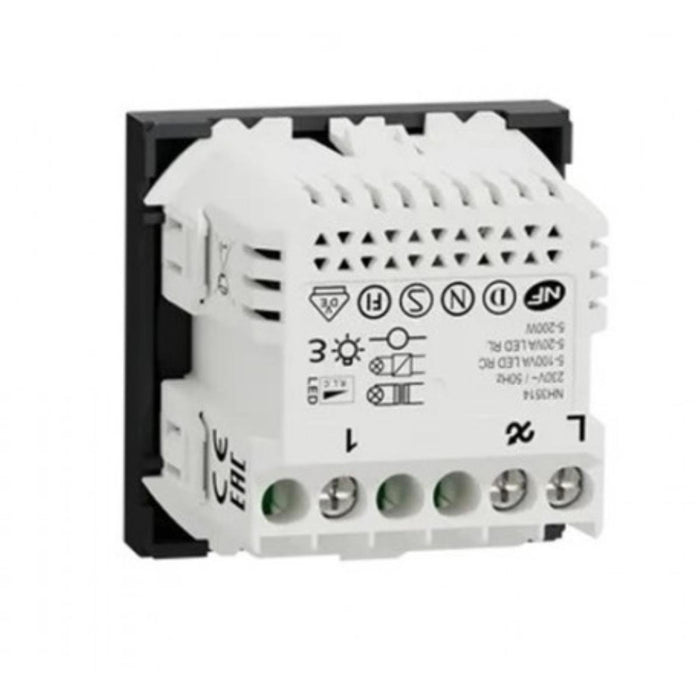

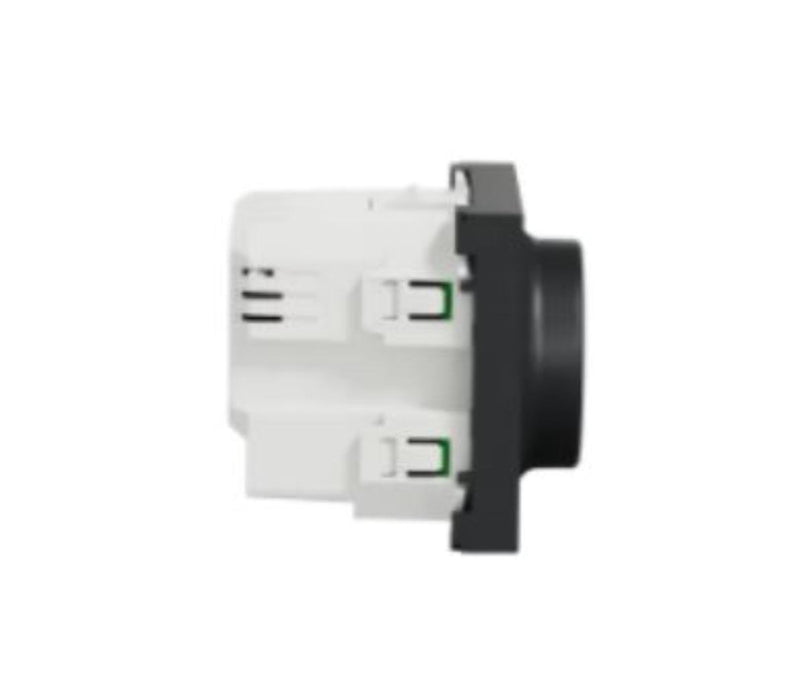

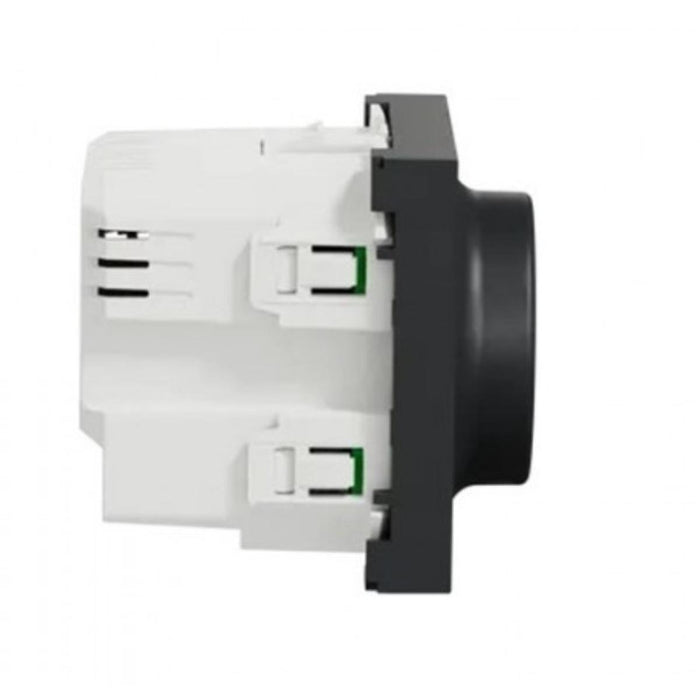

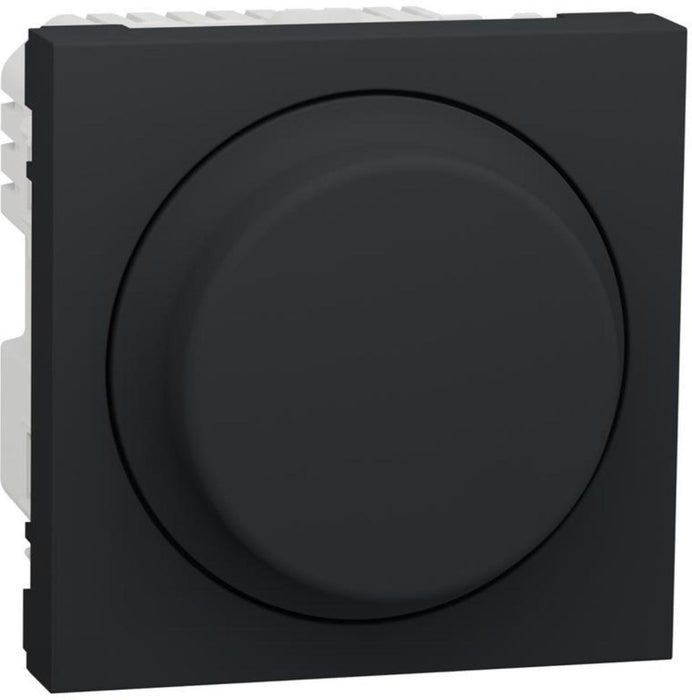

Schneider Electric New Unica NU351454 dimmer is an anthracite-colored mechanism with 2 modules. 230V is the rated operational voltage. And the rated fuse associated with the dimmer is 16. The control type of this dimmer is local control, remote control via auxiliary push-button. Its protection type is automatic overload protection, overheating protection, short-circuit protection, taking care of your safety as much as possible. Its suitable mounting box can be recessed into the wall surface with a flush-mounted type. Its connection terminals are screw terminals. Moreover, its directives are 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive. It is 45 mm wide, 45 mm high, 47 mm deep and has an embedding depth of 29 mm. And the product weighs 0.129 kg. The IP rating of this device is IP20, IP21. It has also obtained CE, EAC, FIMKO, NEMKO, NF, SEMKO, VDE certification. Moreover, it complies well with EN 300-328, EN 301-489-17, EN 60669-2-1, EN 60730-2-7 standards. And it is mercury-free. Being environmentally friendly, this dimmer is also a Green Premium product. The new Unica includes a range of new designs, colors, and materials. Consumers benefit from a beautiful design that matches their style and innovative products. The new Unica is designed with smart features to be flexible, easy to understand, and quick to install, providing solutions for all customer requirements.
Product range: New Unica
The Green PremiumTM label is Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular, low-CO2 products.
• Product or component type: Dimmer
• Device presentation: Mechanism
• Technology type: Electromechanical
• Dimmer type: Universal
• Device application: Light control
• Color shade: Anthracite (RAL 7021)
• Packaging type: Flow-pack
• Rated current: 10 AX
• Load type: Incandescent lamp: 5...200 W at 230 V AC
Halogen lamp: 5...150 W at 230 V AC
LED lamp: 5...100 VA at 230 V AC (RC LED mode)
LED lamp: 5...20 VA at 230 V AC (RL LED mode)
LV halogen lamps: 5...150 VA at 12 V AC (electronic transformer)
LV halogen lamps: 5...150 VA at 12 V A
[Ue] rated operational voltage: 250 V
• Available function: With memory function
• Protection type:
Short-circuit protection
Automatic overload protection
Overheating protection
• Control type:
Local control for dimming up/down
Automatic load detection with local control
Remote control via auxiliary push-button
• Network type: AC
• Network frequency: 50/60 Hz
• Electrical durability: 20000 cycles, cos phi = 0.6
• Insulation resistance: > 5 MOhm at 500 V
• Dielectric strength: 2000 V
• Minimum load capacity: 200 operations 1.25 In and 1.1 Un, cos phi = 0.3
• Opening distance: > 3 mm
• Number of modules: 2 modules
• Connections – terminals: Screwless terminals
• Cable cross-section:
0…2.5 mm² solid cable
0…2.5 mm² flexible cable
• Material:
Thermoplastic ABS-UV stabilized: mechanism rocker
PC (polycarbonate) GF10 FR: casing
CuZn37: terminals
PBT (polybutylene terephthalate) GF30: release button
• Surface finish: Matt
Specific treatment - integrated into the material: Painted
• Fixing mode: Clip-in
• Width: 45 mm
• Height: 45 mm
• Depth: 34.25 mm
• Embedding depth: 21.15 mm
• Net weight: 0.0231 kg
• Ambient air temperature for operation: -5…40 °C
• Ambient air temperature for storage: -5…50 °C
Standards:
› EN 60669-1
› LV Directive
› EMC Directive
Product certificates:
› CE
› AENOR
› EAC
› NF
› VDE
Chemical agent resistance:
› Resistant to alcohol (70%)
› Resistant to alcohol (96%)
› Resistant to A-lactic acid
› Resistant to diluted quaternary ammonium
› Resistant to diluted bleach
› Resistant to diluted ammonia
› Resistant to soapy water
› Resistant to crystal cleaning agent
› Resistant to hydrogen peroxide 10 volumes
› Resistant to hexane
Environment:
› IP protection rating: IP4X
› IK protection rating: IK04
Environmental characteristics:
› Oil
› UV resistant
› Acetone
› Liquid soap
› Window cleaning liquid
› Petrol
› Alcohol
› Bleach
