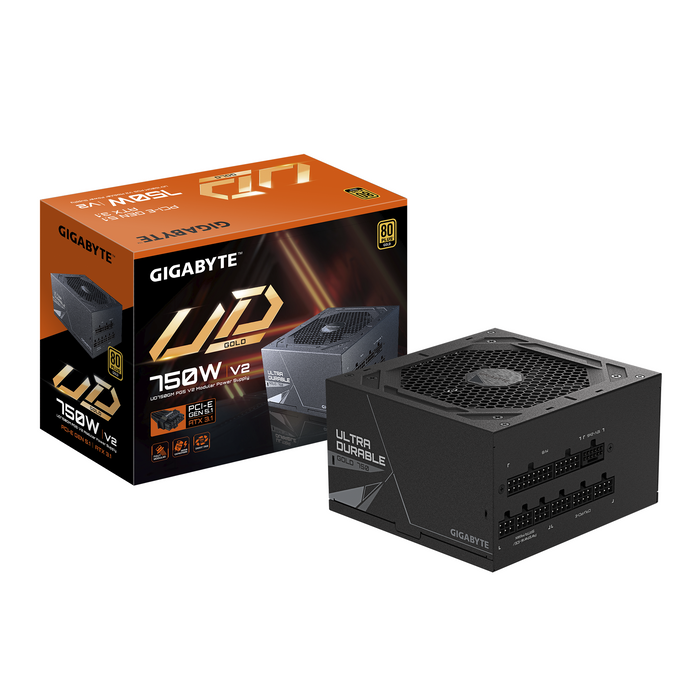

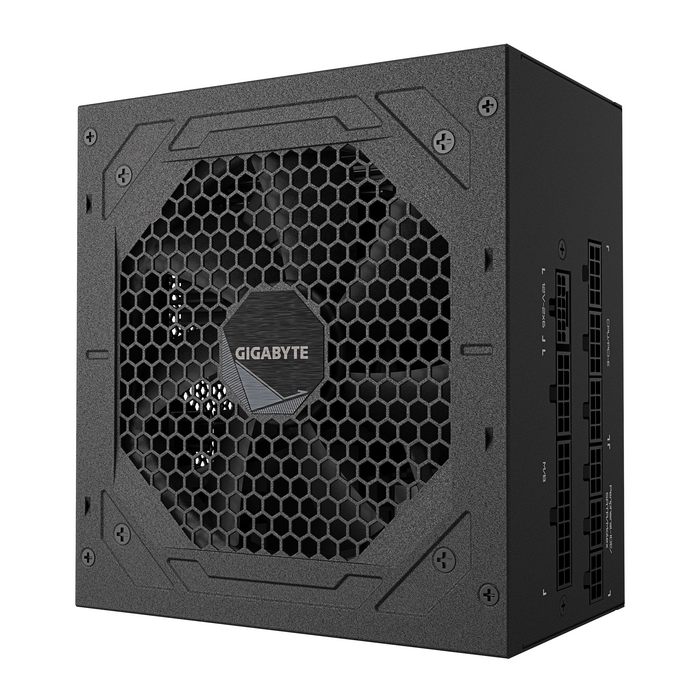

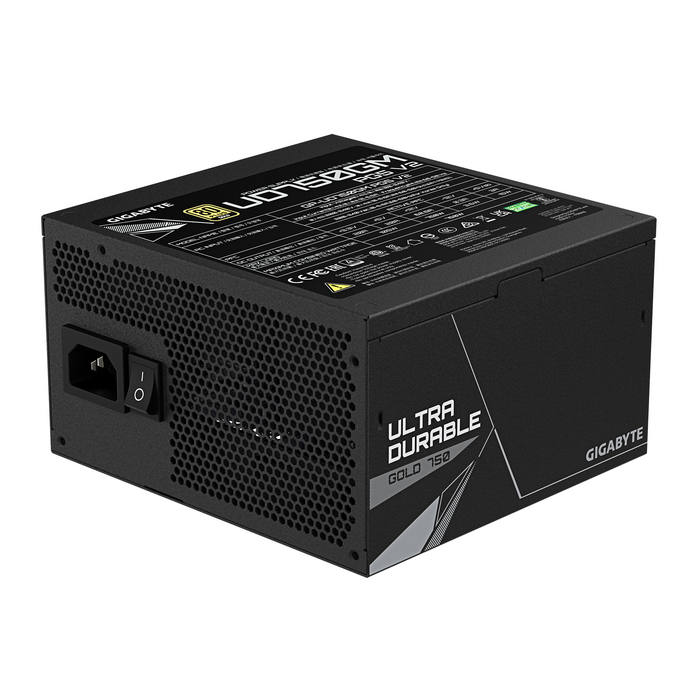

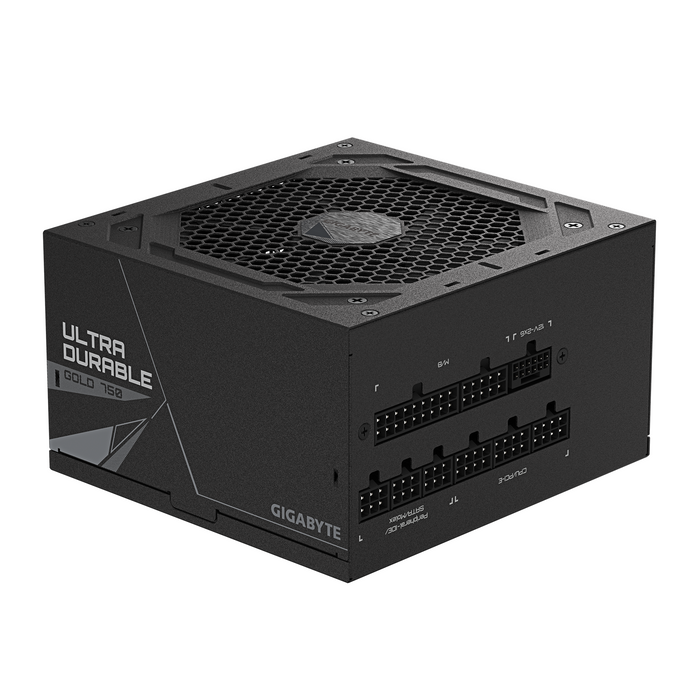

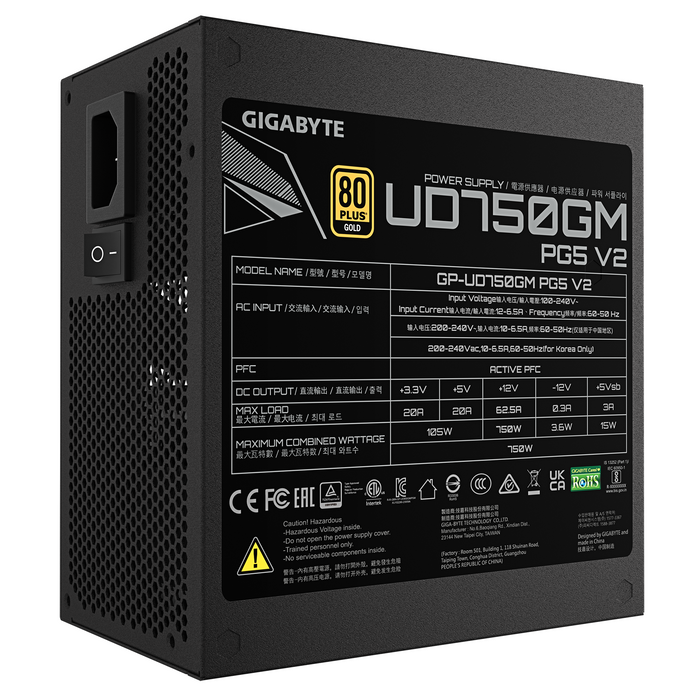

Power supply unit Gigabyte UD750GM PG5 V2, 750W, 80+ GOLD, PCIe 5.1

Main features

• Power: 750W – suitable for systems with powerful video cards and processors.
• Certification: 80 PLUS Gold – over 90% efficiency under typical load.
• Standards: ATX 3.1 and PCIe Gen 5.1 compliant – ready for RTX 50 series and future generation GPUs.
• GPU Cable: Native 16-pin PCIe Gen 5 – supports up to 600W of power for video cards.

Design and cooling

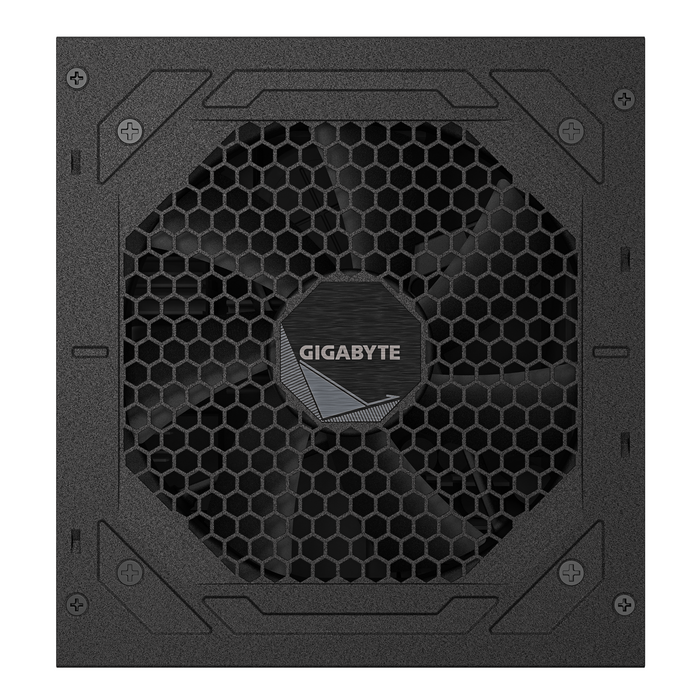

• Fan: 120 mm HYB (Hydraulic Bearing) – quiet and long-lasting, with automatic speed control. Remains off at ≤20% load.
• Dimensions: Compact depth of 140 mm – easy installation even in narrow boxes.

Wiring and amenities

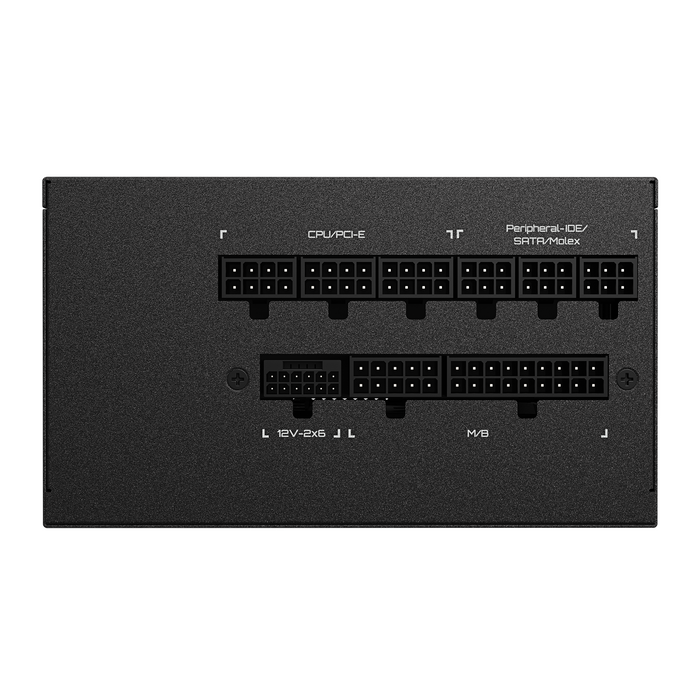

• Modular design: Fully modular – only the cables you need, better airflow and easy installation.
• Cables: White, "embossed" – for clean installation and aesthetics.

Protections and reliability

• Protections: OVP, OPP, SCP, UVP, OCP, OTP – complete system protection.
• Capacitors: 100% Japanese – guarantee stability and long life.
• MTBF: Over 100,000 hours – high reliability.
• Certifications: CB, CE, FCC, TÜV, BSMI and others - international safety.

Additional benefits

• Single-line +12V rail: Ensures stability and easy installation.
• Active PFC: For better efficiency and voltage stability.
• Hold-up time: Over 16 ms – resistance to short interruptions.
