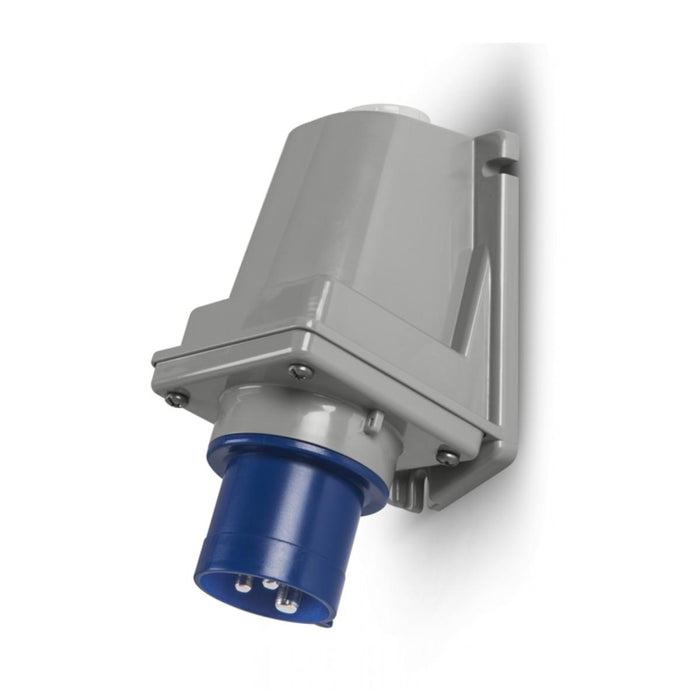

PLUG 2P+E 32A IP44/54, 6H OPTIMA SCAME

Monophase Euro plug 32A, 2P+E, IP54, SCAME Optima 240.3293
The OPTIMA series is a range of 16A and 32A industrial plugs for surface-mounted outdoor installation. They are stable and safe industrial Euro plugs, thanks to the use of a high-performance technopolymer. They are available with screw terminals and always guarantee the best connection. The effectiveness of the contact surfaces over time is guaranteed by the use of nickel-plated brass pins, resistant to oxidation and ageing. The moulded combined seal guarantees a constant IP degree of protection. OPTIMA series products are manufactured with halogen-free materials and are environmentally harmless.

• series: OPTIMA
• manufacturer: SCAME – Italy
• standard: EN 60309
• mounting: outdoor / surface-mounted / wall-mounted
• poles: 2P + E
• clock position: 6h
• rated current: 32A
• rated voltage: 200 – 250V
• operating frequency: 50Hz, 60Hz
• colour: BLUE
• degree of protection: IP44 / IP54 – resistant to water splashes
• operating temperature: from – 20°C to + 40°C
• flame-retardant test: 650°C
• material: UV stabilised, halogen-free
• terminals: screw
• cable outlet: threaded for gland M32X1,5
