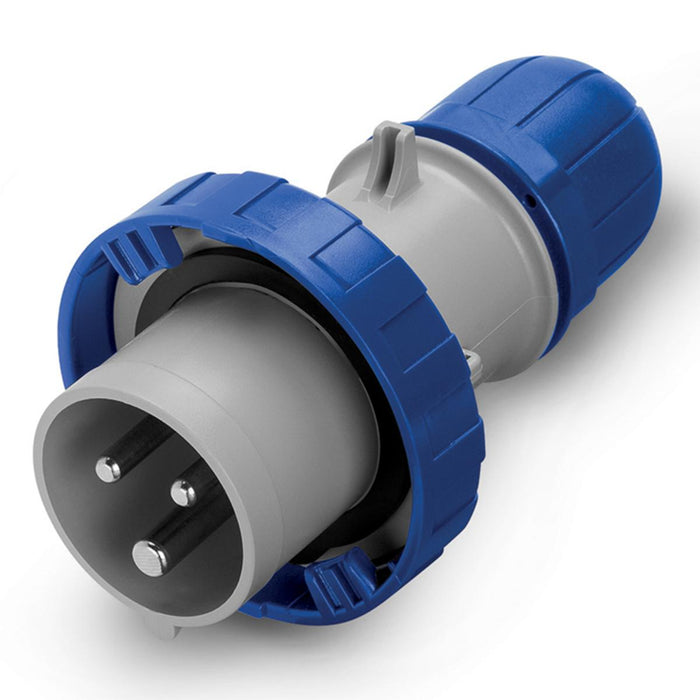

PLUG 2P+E 16A IP66/67/69 OPTIMA SCAME

Monophase Euro plug 16A, 2P+E, IP67, SCAME Optima 218.1633
The OPTIMA series is a complete range of industrial portable plugs (Euro standard) from 16A to 125A. Robust and safe industrial mobile plugs, thanks to the use of a high-performance technopolymer and an external gland with a cable clamp. Portable plugs from the OPTIMA series are available with various types of terminals to always guarantee the best connection depending on the type and requirements of use and wiring. The efficiency of the contact surfaces is ensured by the use of nickel-plated brass pins, resistant to oxidation and ageing. Quick opening of the housing is thanks to a steel spring mechanism. OPTIMA series products are manufactured with halogen-free materials that are harmless to the environment.

• series: OPTIMA
• manufacturer: SCAME – Italy
• standard: EN 60309
• mounting: mobile / portable
• poles: 2P + E
• clock position: 6h
• rated current: 16A
• rated voltage: 200 – 250V
• operating frequency: 50Hz, 60Hz
• colour: BLUE
• degree of protection: IP66 / IP67 / IP69 – watertight
• IK protection rating at 20°C: IK 08
• flame resistance test: 650°C
• material: UV stabilised, halogen-free
• terminals: screw
• cable outlet: gland (secure cable grip)
