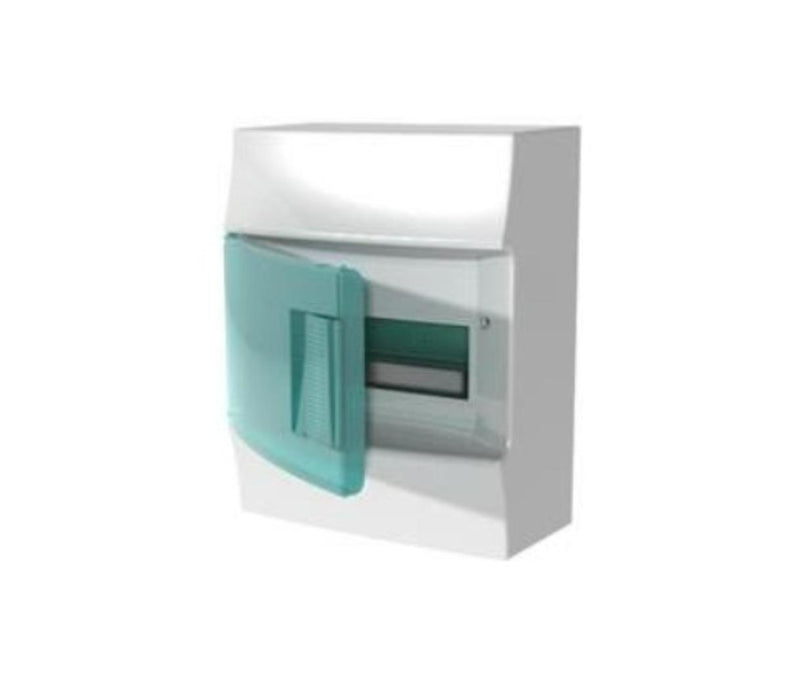

PANEL SURFACE MOUNTING 8MODE MISTRAL41W ABB

• Number of rows: 1
• Closing type: Snap function
• Configuration type: DIN rail assembled
• Cover type: Door
• Door type: Single
• Door surface finish: Transparent
• DIN positions: 8
• Terminal type: Screw terminals
• Power loss: 17.7 W
• Housing material: Thermoplastic
• Housing material: Plastic
• Door material: Plastic
• Transparent door: Yes
• Cover style: with slot
• RAL number: RAL 9016 - White
• Colour: White
• Number of modules: 8
• RoHS declaration: 9AKK108470A6164
• RoHS information: According to EU Directive 2011/65/EU and amendment 2015/863 of 22 July 2019
• RoHS date: 20241218
• REACH declaration: REACH regulation for housings - ABB S.p.A. Vittuone
• REACH information: True - contains substances > 0.1 mass percent
• REACH date: 20240429
• Conflict minerals reporting template (CMRT): Conflict minerals reporting template
• WEEE category: 5. Small equipment (no external dimension greater than 50 cm)
• Ambient air temperature: Around enclosure -15 ... 60 °C
• Degree of protection: IP41
• Protection class: Insulated (class II)
• Environmental information: REACH declaration - regulation

Dimensions

• Width in number of module spacings: 8
• Net product width: 207 mm
• Net product height: 262 mm
• Net product depth / length: 119 mm
• Net product length weight: 0.729 kg
• Built-in depth (t2): 74 mm
