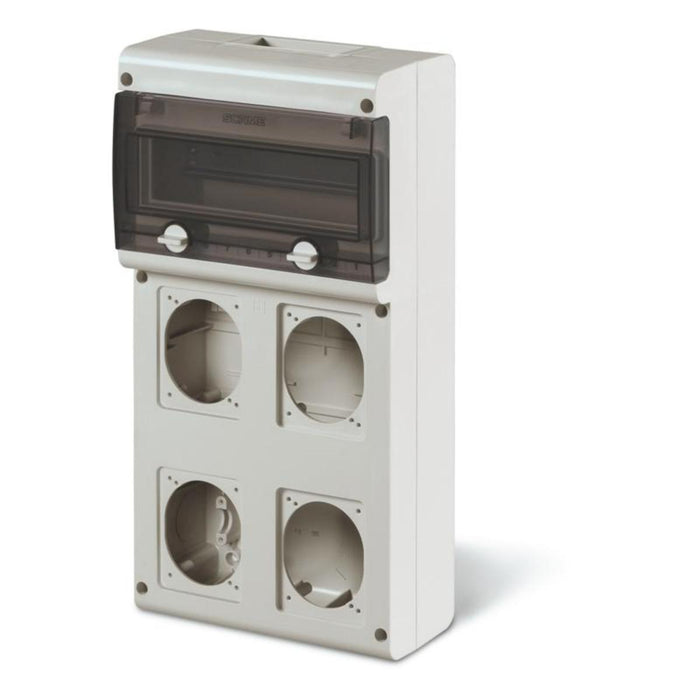

PANEL 4 CONTACTS IP66 11DIN BLOCK SCAME

Distribution board 11-DIN, 4-contact 16A/32A, Scame Block 4 632.4500-000
The BLOCK series combines durability, convenience and outstanding resistance to fire. It does not allow the penetration of flame, halogen emissions or smoke. The BLOCK series is exceptionally durable thanks to the technology used in its manufacture. It is designed to withstand various strongly chemical substances. It also withstands various types of alcoholic substances, acids, hydrocarbons and others, which makes them convenient for use in environments with a high degree of corrosion. The boards are resistant to ultraviolet rays. The protection class of the series is IP66. Distribution boards can be assembled according to the customer's specification.

• Series: BLOCK
• Manufacturer: SCAME – Italy
• Standards: EN 60670-1, CEI 23-49, EN 60439-1. EN 60439-4
• Installation: mobile, surface-mounted
• Number of modules (possibility of fitting fuses): 11-module
• Four openings for mounting the following socket variants:
• • 4 pcs. 16A (70×87mm) or
• • 4 pcs. 32A (84×106mm)
• * in the (70×87mm) size, either an industrial or a Schuko socket can be mounted
• Marked cable opening (possible fitting of a gland): PG13.5 – PG21
• Rated voltage: 400V / 50Hz
• Protection class: II
• Power dissipation: 14W
• Degree of protection: IP66
• Mechanical strength: IK08
• Overall dimensions: 212x415x105mm
• Operating temperature: from –25 °C to +60 °C
• Enclosure material: heat-resistant plastic, halogen-free
• Non-flammability test: +650°C
• UV radiation resistance: YES
• Colour: GREY
