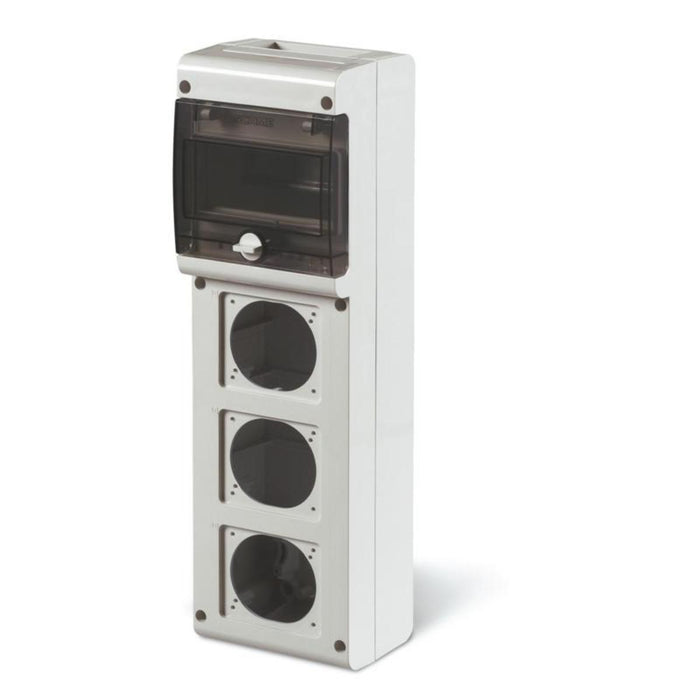

PANEL 3 CONTACTS IP66 6DIN BLOCK SCAME

Board 6-DIN, 3-contact 16A/32A, Scame Block 3 632.3500-000
The BLOCK series combines durability, convenience and exceptional fire-resistance properties. It prevents the penetration of flame, halogen emissions or smoke. The BLOCK series is extremely durable thanks to the technology used in its manufacture. It is designed to withstand various strongly chemical substances. It also withstands various types of alcohol-based substances, acids, hydrocarbons and others, which makes it suitable for use in environments with a high degree of corrosion. The boards are resistant to ultraviolet rays. The protection class of the series is IP66. Distribution boards can be assembled according to the customer's specification.

• series: BLOCK
• manufacturer: SCAME – Italy
• standard: EN 60670-1, CEI 23-49, EN 60439-1. EN 60439-4
• mounting: mobile, surface-mounted
• number of modules (fuse mounting possible): 6-module
• three mounting openings for horizontal installation of the following socket variants:
• • 3 pcs 16A (70×87mm) or
• • 2 pcs 16A (70×87mm) + 1 pc 32A (84×106mm)
• * in the (70×87mm) size, either an industrial or a SCHUKO socket can be fitted
• marked cable opening (gland fitting possible): PG13.5 – PG21
• rated voltage: 400V / 50Hz
• protection class: II
• power dissipation: 9W
• degree of protection: IP66
• mechanical strength: IK08
• overall dimensions: 136x440x105mm
• operating temperature: from –25 °C to +60 °C
• housing material: heat-resistant plastic, halogen-free
• flame resistance test: +650°C
• UV radiation resistance: YES
• colour: GREY
