PANEL 2 CONTACTS IP66 DOMINO SCAME

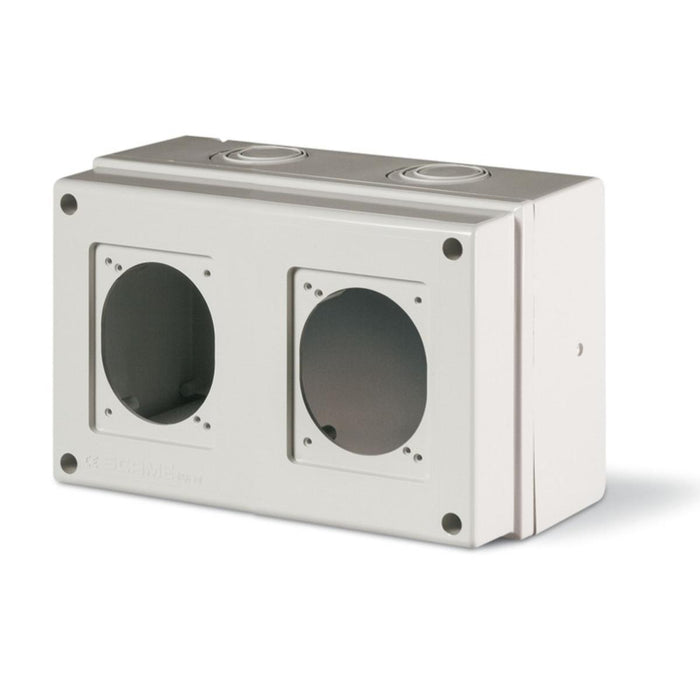

Board for 2-contacts 16A/32A, Scame Domino 672.1301
The DOMINO series offers a full range of waterproof boards for surface mounting with IP66. Variants from 2 to 24 DIN modules and mounting for up to 8 industrial contacts. The boards are made of non-ageing technopolymer, stabilised against UV radiation. Impact resistance class IK07/08. Maximum operating temperature from -25°C to +60°C. High resistance to erosion processes and chemical reagents.

• series: DOMINO
• manufacturer: SCAME – Italy
• standard: EN 60670-1, EN 60670-1/A1, IEC 60670-24, CEI 23-49
• mounting: open (surface)
• number of modules (possibility to mount fuses): NO
• two openings for mounting the following contact variants:
• • 2 pcs 16A (70×87mm) or
• • 2 pcs 32A (84×106mm)
• * in the (70×87mm) size, either an industrial or a SCHUKO contact can be mounted
• marked cable openings (possible fitting of glands): PG36 – PG29 – PG21
• rated voltage: 400V / 50Hz
• protection class: II
• power dissipation: 18W
• degree of protection: IP66
• mechanical strength: IK07
• overall dimensions: 150x256x115mm
• operating temperature: from – 25 °C to + 60 °C
• housing material: heat-resistant plastic, halogen-free
• flame resistance test: + 650°C
• UV radiation resistance: YES
• colour: GREY
