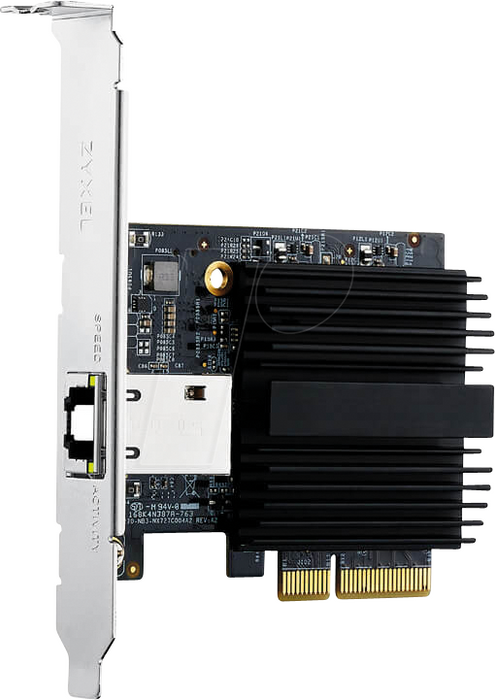

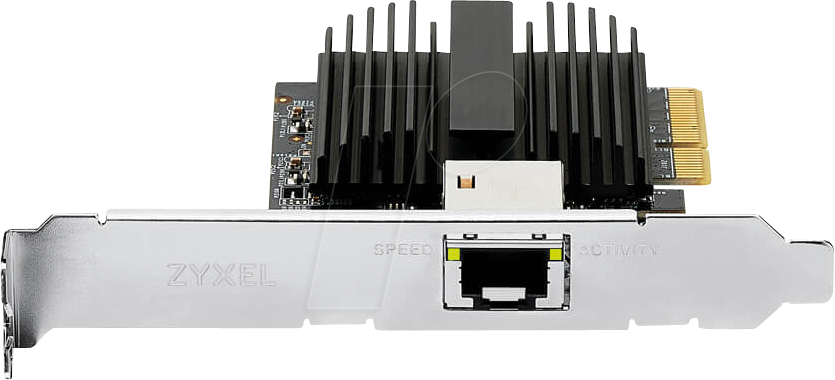

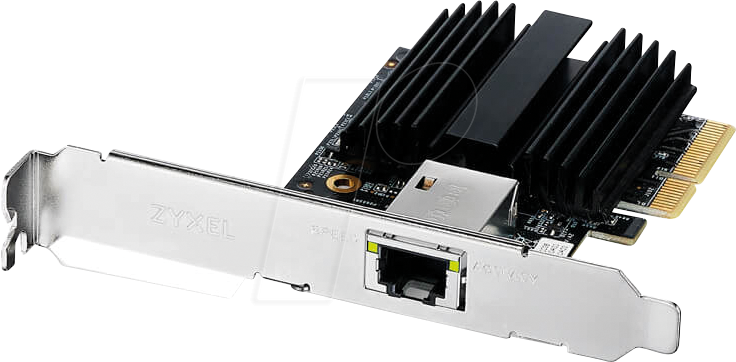

Network card ZYXEL XGN100C, PCIe, 10 Gigabit Ethernet

Standards:

• IEEE 802.3an 10Gbps Ethernet
• IEEE 802.3bz 2.5Gbps/ 5Gbps Ethernet
• IEEE 802.3ab Gigabit Ethernet
• IEEE 802.3u Fast Ethernet
• IEEE 802.1az Energy Efficient Ethernet
• IEEE 802.1p Priority Queuing

Presentation:

• Quality of Service
• Jumbo frame support up to 16 KB

Opportunities

• Backward compatibility with previous network standards, including 10/5/2.5/1 Gbps and 100 Mbps
• Jumbo frame and VLAN tagging support
• Standard and low profile mounting plate included
• Compatible with Windows® and Linux®
• Built-in Quality of Service (QoS) technology
• WoL support

Supported OS

• Windows 7, 8.0, 8.1, 10 (32/64-bit) or Server 2012
• Linux kernels 3.10, 3.12, 3.20, 4.2 or 4.4

  Interfaces

  • PCI Express Gen-3 (or2) x4 Host Bus Interface
  • 1x 10 Gbps RJ-45 Ethernet port (Supported Speeds: 10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps)
  • Pre-installed with full height bracket, also includes low profile bracket

  LED Indicator

  • Speed:
    • Green: 10G
    • Amber: 5G/2.5G/1G/100M
  • Link/Activity
    • Green
      • Steady: No data transmission
      • Blink: Data transmission
