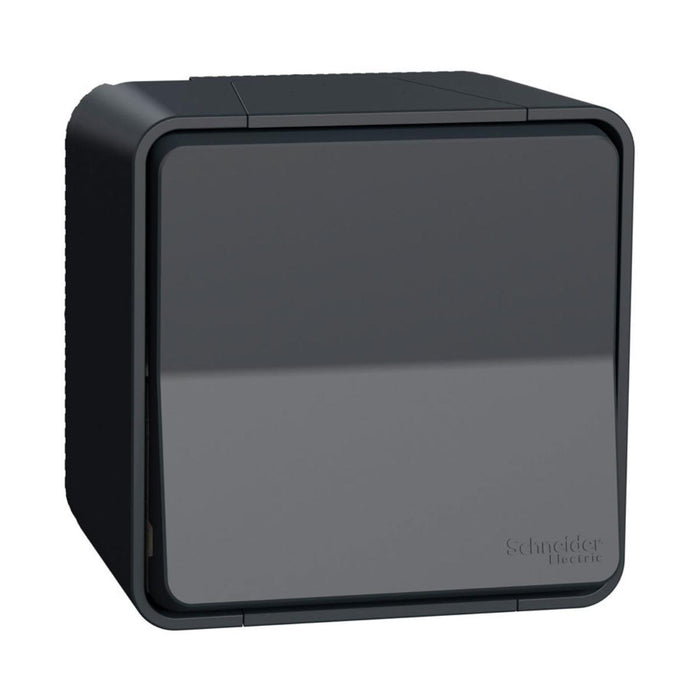

MUREVA SCHNEIDER DEVIATOR WRENCH

Product range: Mureva Styl
Product or component type: Key cap
Device presentation: Complete product
Colour shade: Grey (RAL 7016)
Device mounting: Surface
Switching capability: Changeover
Actuator: Cap
Rated current: 10 AX
Load type: Load for energy-saving lamps with ballast: 100 W
[Ue] rated operating voltage: 250 V AC
Conditions of use: Indoor/outdoor
Material: Brass, ABS (acrylonitrile butadiene styrene), SEBS
Mounting method: With screws
Terminal capacity
1.5...2.5 mm² for solid
1.5...2.5 mm² for stranded
1.5...2.5 mm² for flexible
Conductor grip: 13 mm
Cable entry: Easy valve access 6…20 mm
Chemical and detergent products resistance:
Resistant to alcohol (70 %)
Resistant to alcohol (96 %)
Resistant to A-Lactic Acid
Resistant to diluted quaternary ammonium
Resistant to diluted bleach
Resistant to diluted ammonia
Resistant to soapy water
Resistant to crystal cleaner
Resistant to hydrogen peroxide 10 volumes
Resistant to hexane
Height: 76 mm
Width: 76 mm
Depth: 64 mm
Design depth: 64 mm
Quality marks: NF, CE, AENOR, EAC
IP protection rating, IP55
IK protection rating, IK08
Flame resistance: Self-extinguishing 650 °C in accordance with IEC 60695-2-1
Standards: EN 60669-1
Ambient air temperature during operation: -5…40 °C
Ambient air temperature for storage: -25…55 °C
