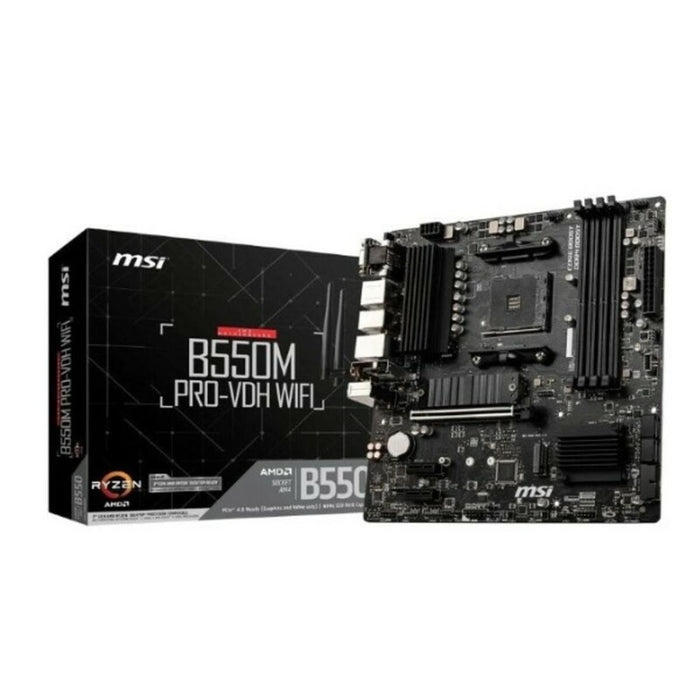

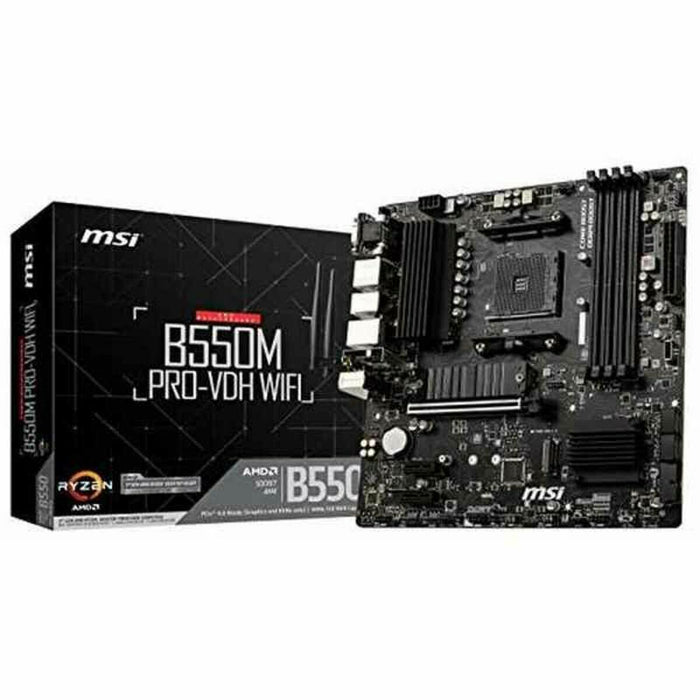

MSI B550M PRO-VDH WIFI 4xDDR4 ATX HDMI DP VGA USB MB

MSI B550M PRO-VDH WIFI 4xDDR4 ATX HDMI DP VGA USB MB

Msi
€161,90 - €161,90
€161,90
€161,90 - €161,90
€161,90
SKU DGT0210971
Ships within 8 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Processor

Supported processor sockets AM4 socket
Maximum number of SMP processors 1
Processor socket AM4 socket
Compatible processor series AMD Ryzen 3000 Series
Processor manufacturer AMD

Graphics

Maximum graphics card memory 16000 MB
Support for parallel processing technologies Not supported
Maximum resolution 4096 x 2160 pixels

Features

Motherboard chipset AMD B550
Audio chip Realtek ALC892
Product colour Black
Motherboard form factor micro ATX
Motherboard chipset family AMD
Audio output channels 7.1 channels
Number of mounting holes 8

Memory

Supported memory speeds 3466, 3000, 2133, 3200, 4266, 2667, 3733, 4400, 3066, 4133, 4000, 1866, 2400, 2800, 3866, 2933, 3600
Maximum internal memory 128 GB
Unbuffered memory Yes
Number of memory slots 4
ECC compatibility ECC and Non-ECC
Memory channels Dual-channel
Memory slot type DIMM
Supported memory types DDR4-SDRAM

Weight and dimensions

Width 244 mm
Height 65 mm
Depth 244 mm

Network

Bluetooth Yes
LAN controller Realtek 8111HN
Wi-Fi Yes
Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11a
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Highest Wi-Fi standard Wi-Fi 5 (802.11ac)
Version of Bluetooth 4.2

Internal I/O

12V power connector Yes
RGB LED pin header Yes
Number of chassis fan connectors 3
Number of SATA III connectors 4
CPU fan connector Yes
USB 2.0 connectors 2
Serial port headers 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
ATX power connector (24-pin) Yes

BIOS

CMOS clear jumper Yes

Package contents

Included drivers Yes
Included cables SATA

Storage controllers

Supported drive types HDD and SSD
RAID support Yes
Number of supported drives 6
RAID levels 10, 0, 1
Supported drive interfaces SATA III

Rear panel ports

Number of VGA (D-Sub) ports 1
Number of HDMI ports 1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 4
Number of PS/2 ports 1
Connector for WiFi-AP antenna 2
Number of DisplayPort ports 1
Ethernet LAN ports (RJ-45) 1
Number of USB 2.0 ports 2

Expansion slots

PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 2

Other features

Weight 1 kg

Logistics data

Harmonized System (HS) code 84733020

Safety warning

Warnings Keep away from water and sources of moisture., Dispose of in accordance with local e-waste regulations., Avoid direct contact with sensitive electronic components.
