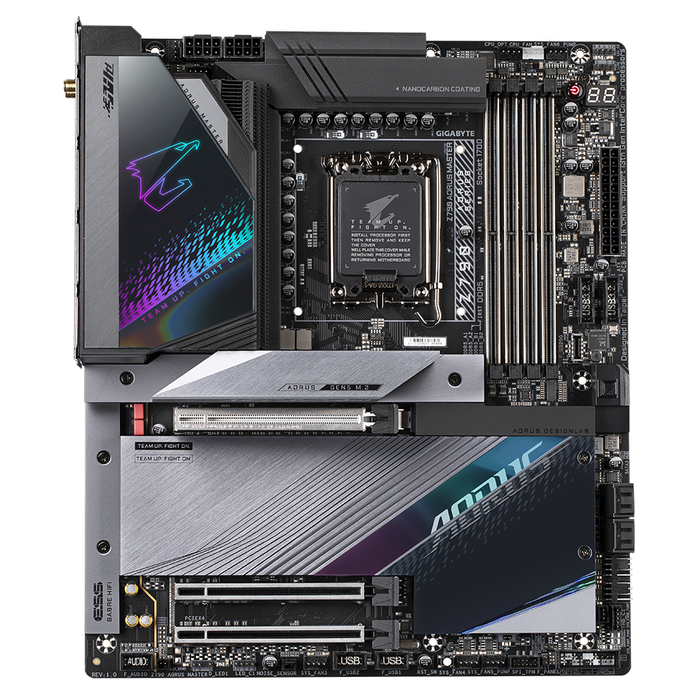

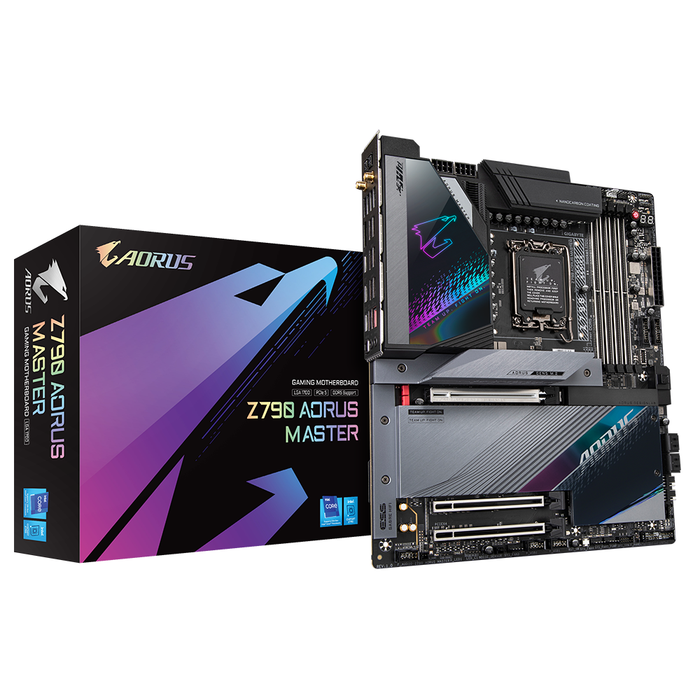

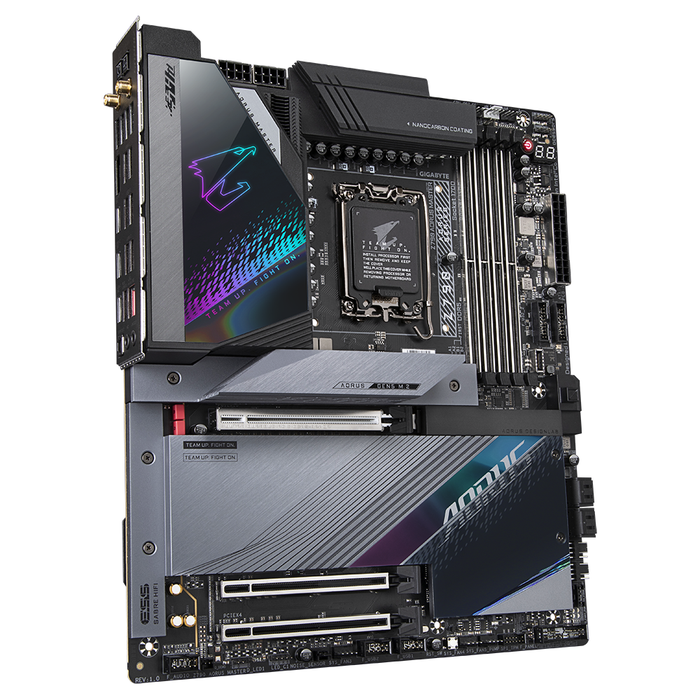

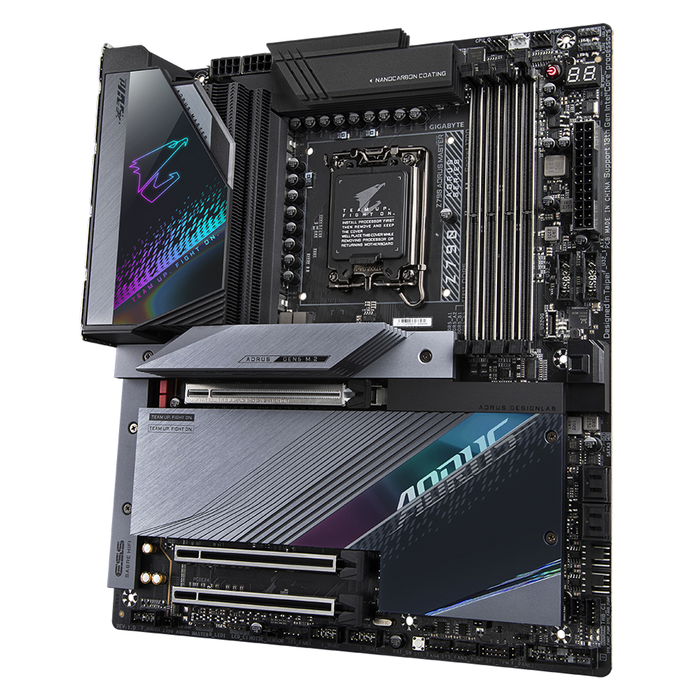

Motherboard Gigabyte - Z790 AORUS Master, LGA 1700

The Gigabyte Z790 AORUS Master is a motherboard with the Z790 chipset and LGA 1700 processor socket.

Technical details

• CPU Socket: 1700;
• Chipset: Intel Z790;
• Supported processors: Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors;
• Form factor: ATX;
• Memory Standard: DDR5;
• Maximum memory: 128 GB;
• Number of memory slots: 4;
• Memory frequency: DDR5 8000(OC) / 7950(OC) / 7900(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800 / 4000;
• Support Dual channel Yes;
• Built-in audio: Realtek ALC1220-VB CODEC, ESS ES9118 DAC chip, Support for DTS:X Ultra;
• Built-in LAN: Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps);
• Built-in Wi-Fi: Intel® WiFi 6E AX210 (802.11ax), Supports 2.4/5/6GHz frequency band;
• Built-in Bluetooth: Bluetooth V5.3;
• PCI-E x16: 1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode);
• PCI-E x1: 1;
• Interface Serial ATA: 6 x SATA 6Gb/s;
• M2 socket: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support), 2 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support), 2 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support);
• Raid support: 0, 1, 5, 10;
• Power connectors 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connector;
• Video slot: PCI Express;

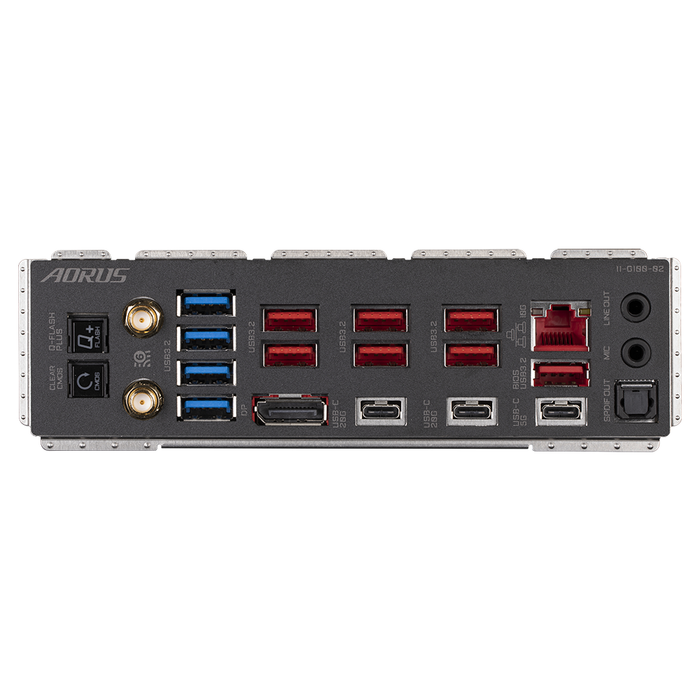

• Ports: 1 x Q-Flash Plus button, 1 x Clear CMOS button, 2 x SMA antenna connectors (2T2R), 1 x DisplayPort, 1 x USB Type-C® port, with USB 3.2 Gen 1 support, 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support, 7 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks, USB Type-C x 2, USB 3.2 x 7;
• Dimensions: 30.5 cm x 24.4 cm;
• Other: 256 Mb Flash ROM, UEFI AMI BIOS.
