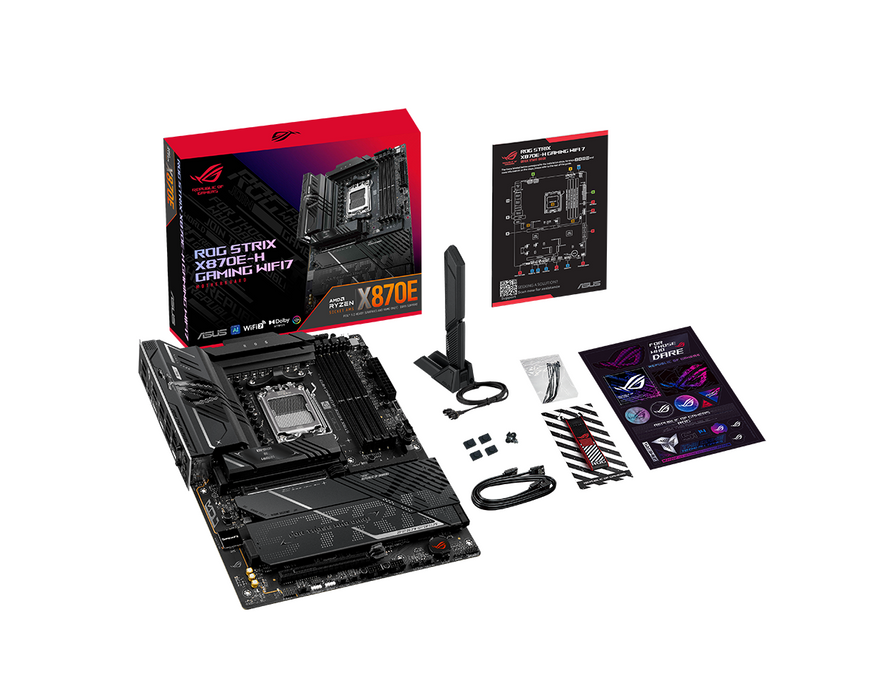

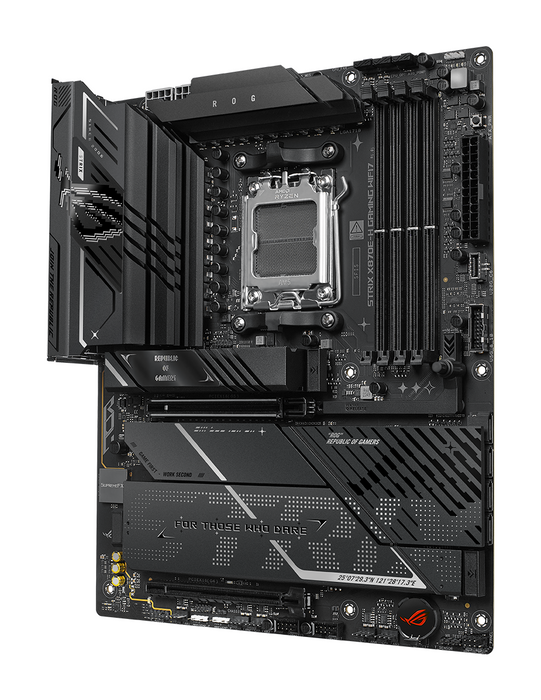

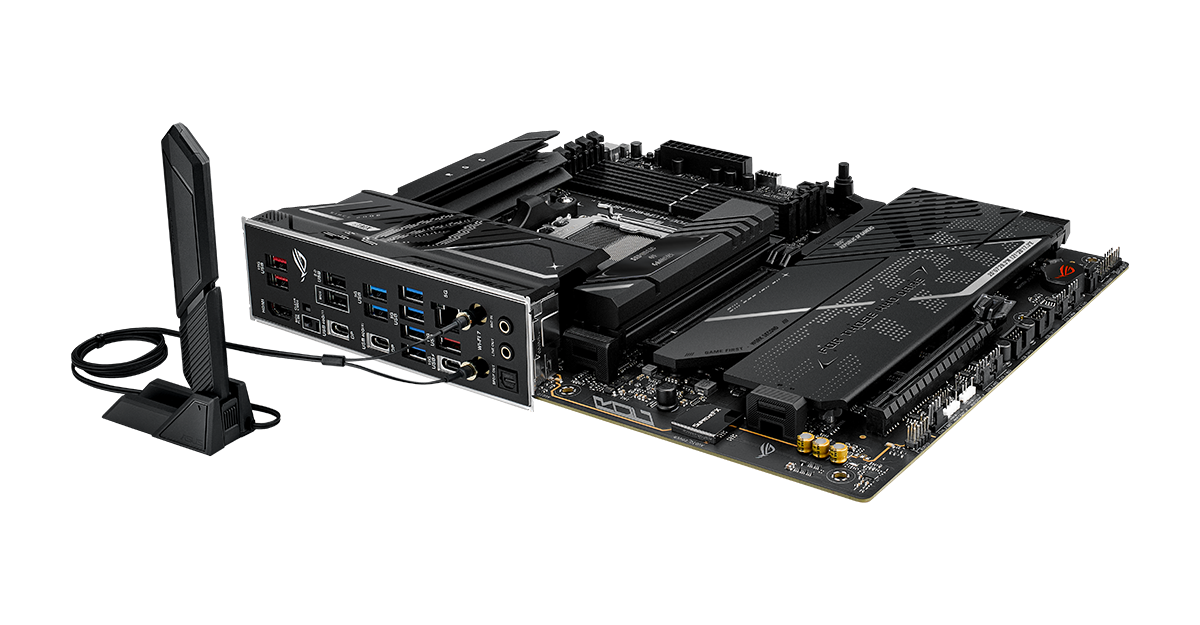

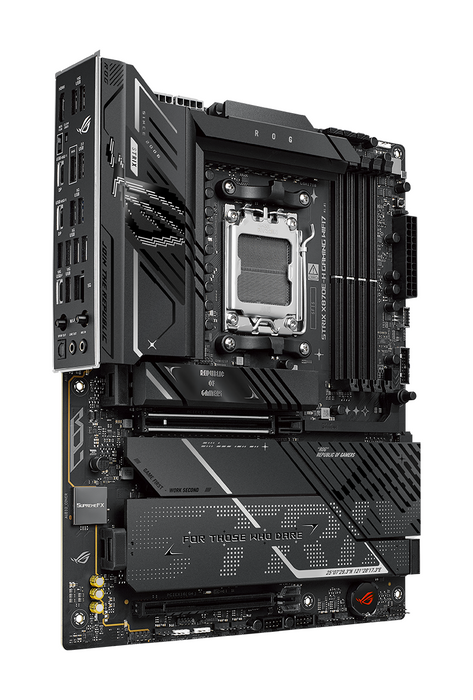

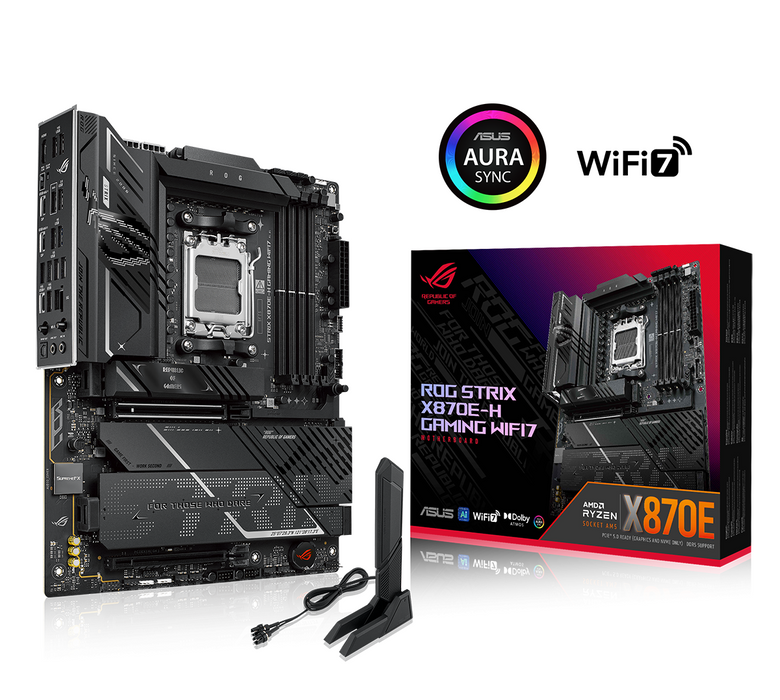

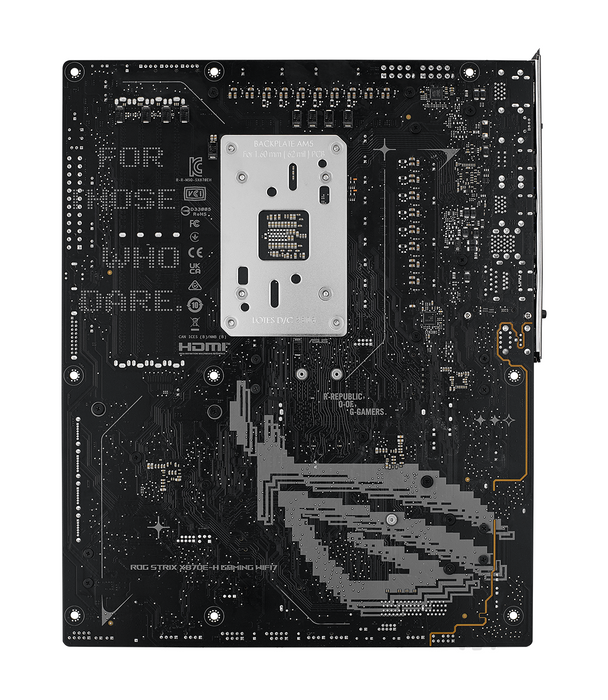

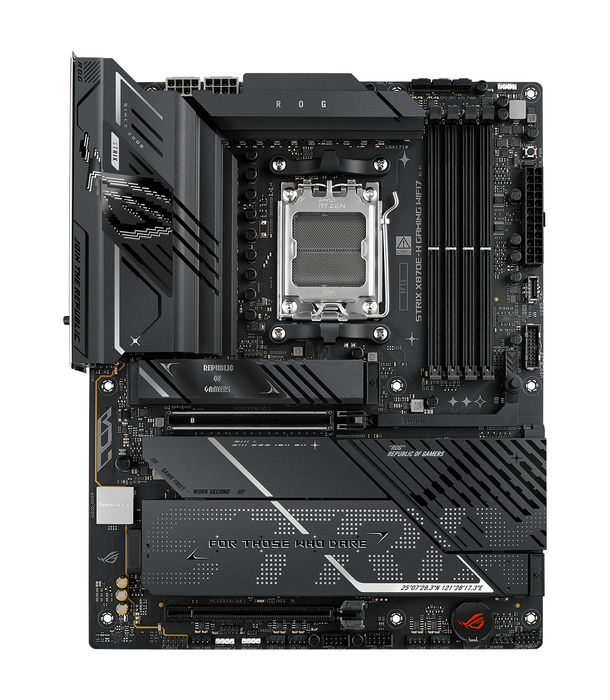

Motherboard ASUS ROG STRIX X870E-H GAMING WIFI7 AM5 DDR5

ASUS ROG STRIX X870E-H GAMING WIFI7

Main features

• Socket : AMD AM5 – compatible with Ryzen 7000, 8000 and 9000 series processors
• Chipset : AMD X870E – the latest generation with advanced capabilities
• Form factor : ATX – standard size for gaming configurations

Performance and power

• VRM system : 19 phases (16+2+1), each phase for the processor is 80A - stable power supply for overclocking
• RAM : 4 slots DDR5, up to 256GB, support 8000+ MT/s (OC)

Connectivity

• PCIe slots : 1× PCIe 5.0 x16 + 1× PCIe 4.0 x16
• M.2 slots : 4 pieces – 2× PCIe 5.0 and 2× PCIe 4.0

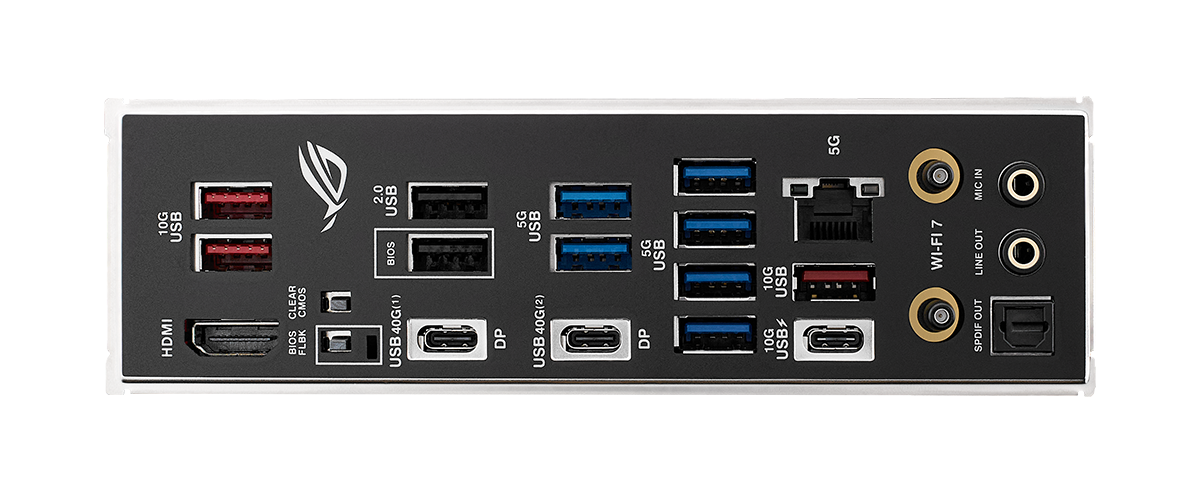

• USB ports :
  • 2× USB4 Type-C (40 Gbps)
  • 1× USB 3.2 Gen 2 Type-C (30W charging)
  • 3× USB 3.2 Gen 2 Type-A
  • 6× USB 3.2 Gen 1
  • 2× USB 2.0

Network and wireless

• Wi-Fi 7 + Bluetooth 5.4 – via Realtek RTL8922AE
• LAN : 5 Gbps Ethernet - Realtek RTL8126

Smart features

• AI Overclocking – automatic performance optimization
• AI Cooling II – intelligent fan management
• AI Cache Boost – speeds up work with large language patterns and memory
