LED OUTDOOR LAMP VLE-SLe14-305 STREET LED 30W/5K VIDEX

Power in operating mode (Pon): 30 W

Useful luminous flux of the light source (Φuse): 2700 Lm

Correlated color temperature: 5000K (neutral white)

Light source energy class: F

Rated voltage, frequency: AC 220-240 V, 50/60 Hz

Beam angle: 90 × 130°

Place of application: outdoors

Rated current: 140 mA

Color rendering index (CRI): Ra > 80

Life: 30000 hours

On/off cycles: 20000

Useful luminous flux of the reference light source: in a wide cone (120°)

Ingress protection: IP65

Warranty: 3 years

Operating temperature range: -20° +50°C

Dimmable: no

Mercury content: Does not contain

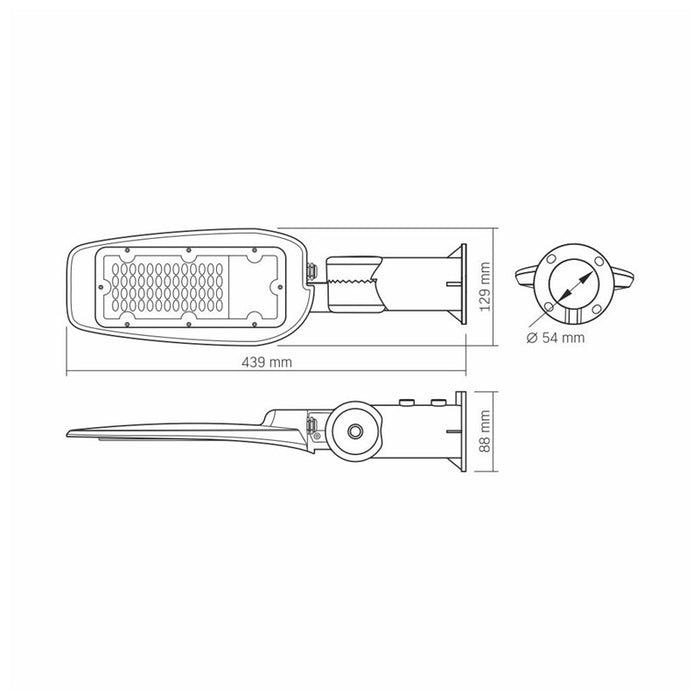

Height: 439 mm

Width: 129 mm

Depth: 88 mm

Outer box: 10 pcs.

Power Factor (PF): 0.9

Directional or non-directional light source: DLS

Networked or non-networked light source: MLS

Color tunable light source (CTLS): no

Displacement coefficient (cos φ1): 0.9

Survival rate: 0.9

Chromaticity coordinates (x): 0.34

Chromaticity coordinates (y): 0.359

Color rendering index value R9: >0

Lumen maintenance rate: ≥96%

Flicker Index (Pst LM): ≤1

Stroboscopic effect metric (SVM): outdoor use

Technology: LED

Peak light intensity: 1700 cd

Installation location: Wall

Mounting hole size: Ø54 mm

Housing color: Gray

Input interface: free wire ends

Electric shock protection class: I

Diffuser material: PC

Replaceable control mechanism: -

Housing material: Aluminum alloy

Replaceable light source: no

Impact protection: IK07

Minimum distance from the illuminated object: 0.5m

Vertical adjustment range: 200°

Cable length: 30 cm

Diffuser type: symmetrical

Light source or containing product: Light source

Connected light source (cls): pcs

Energy consumption with light source on (kWh/1000h): 30 W

Color consistency in MacAdam ellipses (SDCM): <6 (6500K)

Suitable for installation in normally flammable surfaces: yes

EAN: 5904405542286
