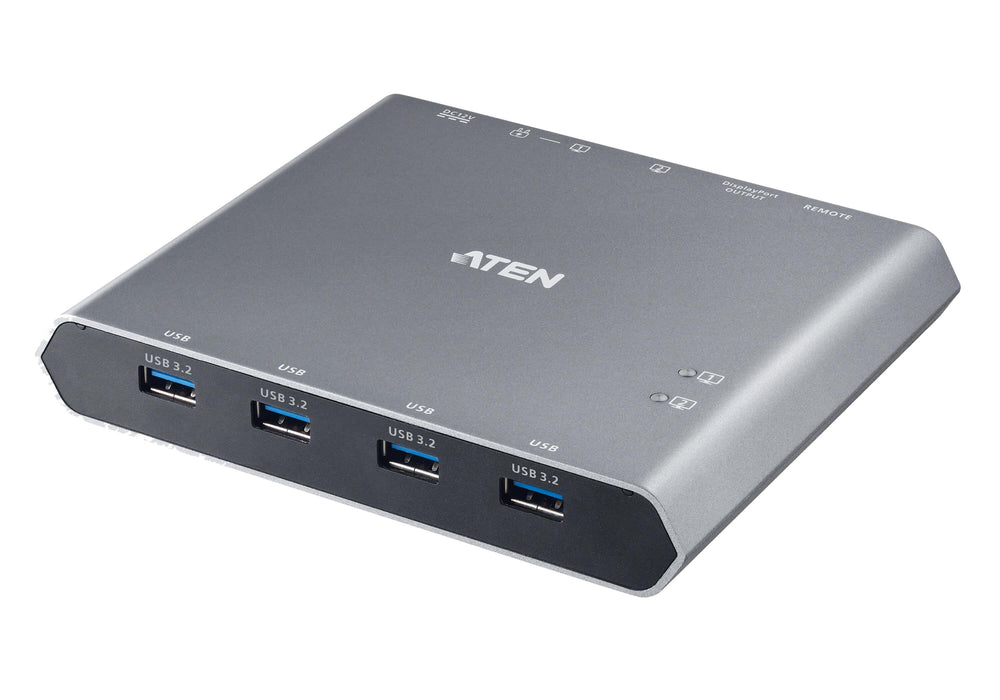

KVM Switch, ATEN US3311, 2-Port, 4K, DisplayPort, USB-C, (Supports up to 8K)

- 2-in-1 solution for 2 USB-C host devices – combines a KVM switch and a multiport docking station with 4 x USB 3.2 Gen 1 Type-A ports,
1 x DisplayPort, 1 x USB-C PD input and 1 x DC jack input
- Supports DP 1.4 Alt Mode
- Superb video quality – up to 8K 7680 × 4320, 4K 3840 x 2160 at 144 / 120 / 60 Hz*
- Supports PD 3.0 up to 100W USB PD charging - allows your laptop to receive maximum power through your USB-C power adapter

Note: The host device and its accessories must be Thunderbolt 4 or USB 4.0 compliant,
with DP 1.4 specifications to deliver up to 4K at 144/120 Hz and 8K resolutions.



- 2-in-1 solution for 2 USB-C host devices – combines a KVM switch and a multiport dock with 4 x USB 3.2 Gen 1 Type-A ports,
1 x DisplayPort, 1 x USB-C PD input, and 1 x DC jack input
- Supports DP 1.4 Alt Mode
- Superior video quality – up to 8K 7680 × 4320, 4K 3840 x 2160 @ 144 / 120 / 60 Hz*
- Supports PD 3.0 up to 100 W USB PD charging - allows your laptop to obtain the maximum power via your USB-C power adapter

Note: Please make sure your host device and its accessories meet the Thunderbolt 4 or USB 4.0, with DP 1.4 specifications to
deliver up to 4K @ 144 / 120 Hz and 8K resolutions. The USB bandwidth may be limited to USB 2.0 when the video output
resolution is over 4K @ 60 Hz

Computer Connections: 2

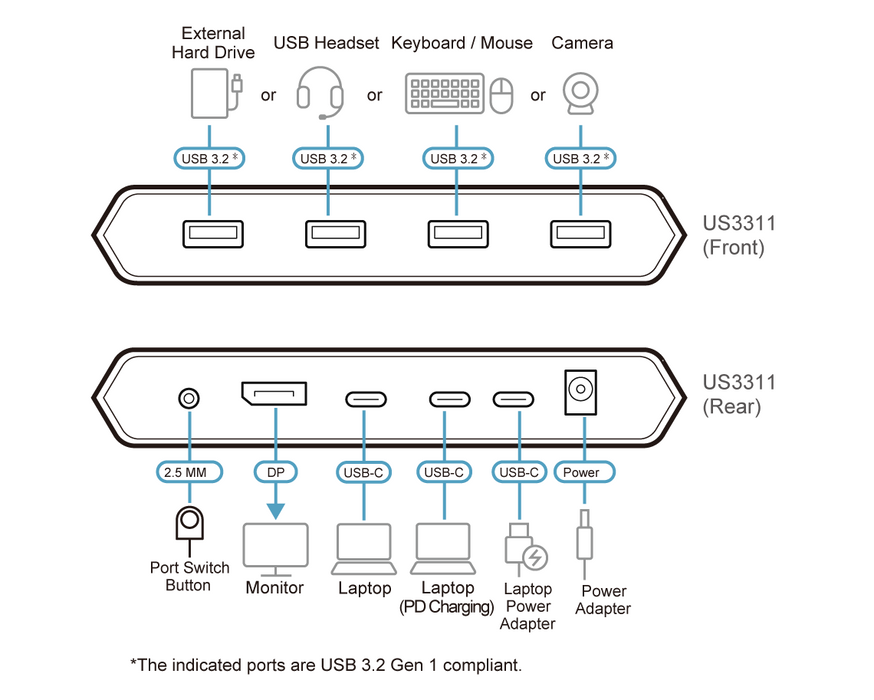

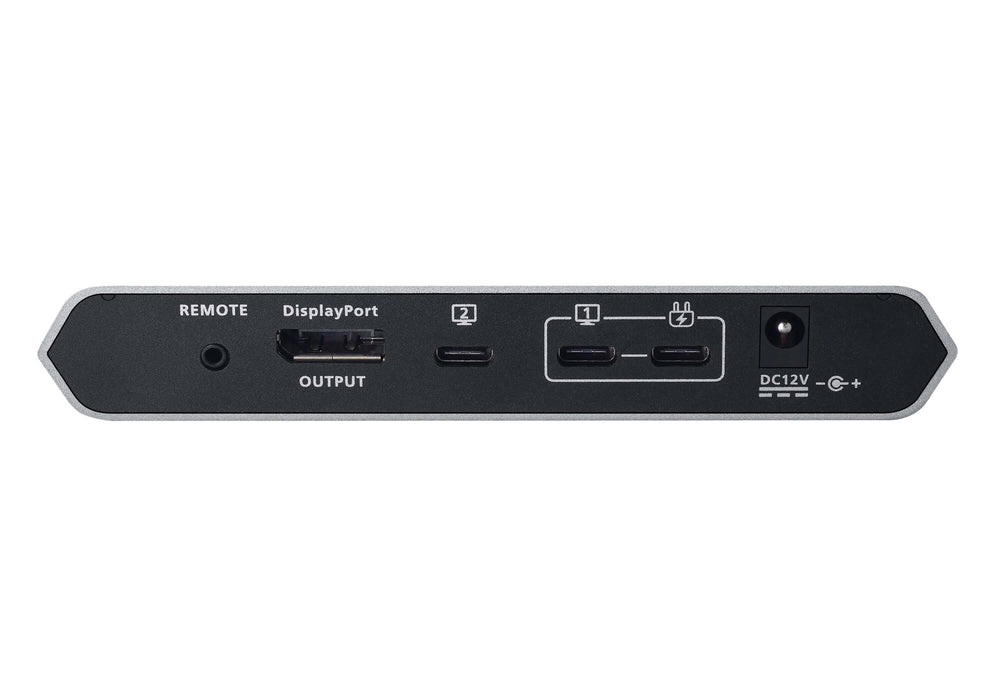

Connectors:
Computer: CPU1: 1 x USB Type C Female
CPU2: 1 x USB Type C Female
Device: 4 x USB 3.2 Gen 1 Type-A Female
Video Output: 1 x DisplayPort Female
Power: 1 x DC jack for 12V 3.3A
1 x USB-C Female*
Port 1 : Supports USB-C PD laptop charging at 5V, 9V, 15V, 20V output
Port 2 : Supports max. 5V, 3A output
Video Resolution: 3840 x 2160@60
3840x2160@120
3840x2160@144
7680x4320
Maximum Input Power Rating: DC12V, 3.3A
Dimensions: 14.30 x 11.90 x 2.38 cm
