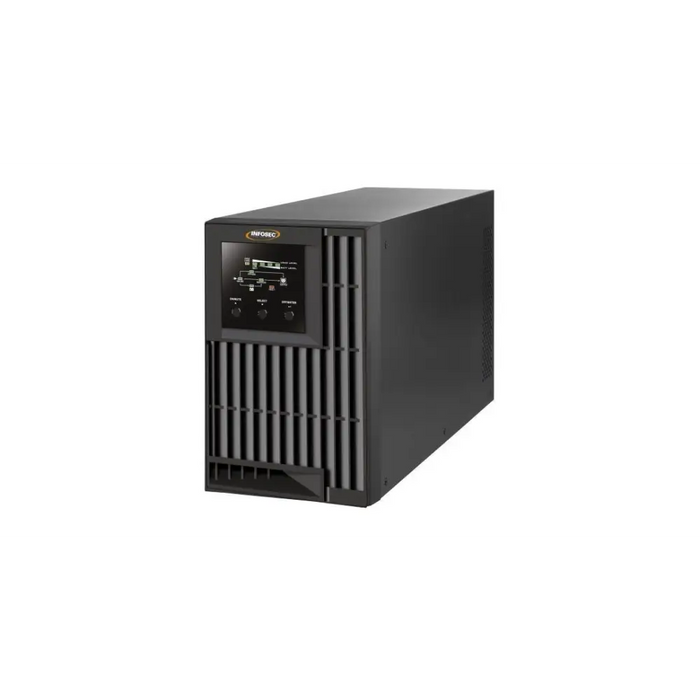

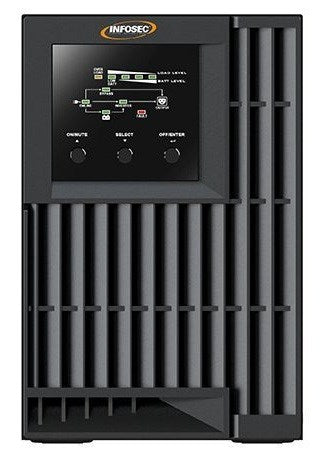

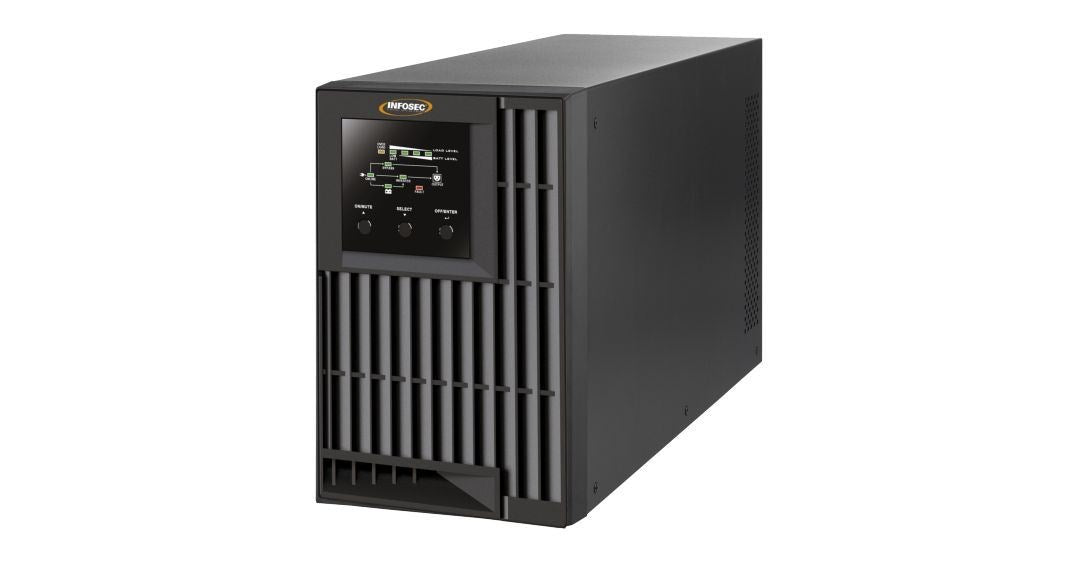

Infosec E4 Value 1000 uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 3 AC outlet(s)

by Infosec
Original price €523,90 - Original price €523,90
Original price
€523,90
€523,90 - €523,90
Current price €523,90
SKU DGT0275265
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Characteristics

Crest factor 3:1
Output power 1 kVA
UPS topology Double conversion (Online)
Power factor 0.8
ECO mode Yes
Number of output phases 1
Output operating voltage (max.) 240 V
Input power factor 0.99
Output operating voltage (min.) 100 V
Total harmonic distortion (THD) of output voltage 6%
Noise level 50 dB
Input frequency 47 - 63 Hz
Audible alarm modes Battery operation alarm, Fault, Overload alarm, Low battery alarm
Audible alarm(s) Yes
Maximum current 10 A
Waveform Pure sine wave
Number of input phases 1
Input operating voltage (min.) 100 V
Input operating voltage (max.) 240 V
Efficiency 88%
Output voltage regulation -1 - 1%
Response time 4 ms
Output frequency 47/63 Hz

Design

Product colour Black
Display type LED
Form factor Tower

Operating conditions

Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 20 - 90%

Weight and dimensions

Depth 220 mm
Height 282 mm
Width 145 mm
Weight 8.6 kg

Package contents

Included cables Output power cord, RS-232, Input power cord
Manual Yes

Certificates

Compliance certificates RoHS

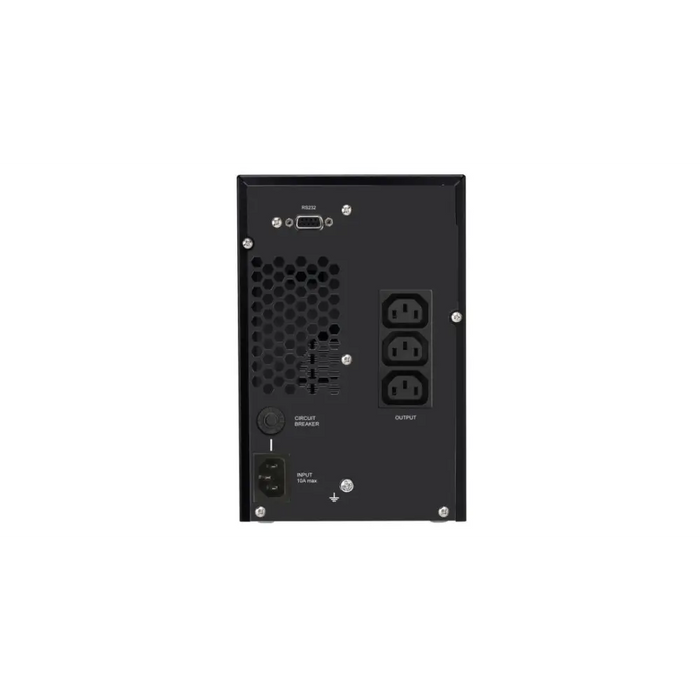

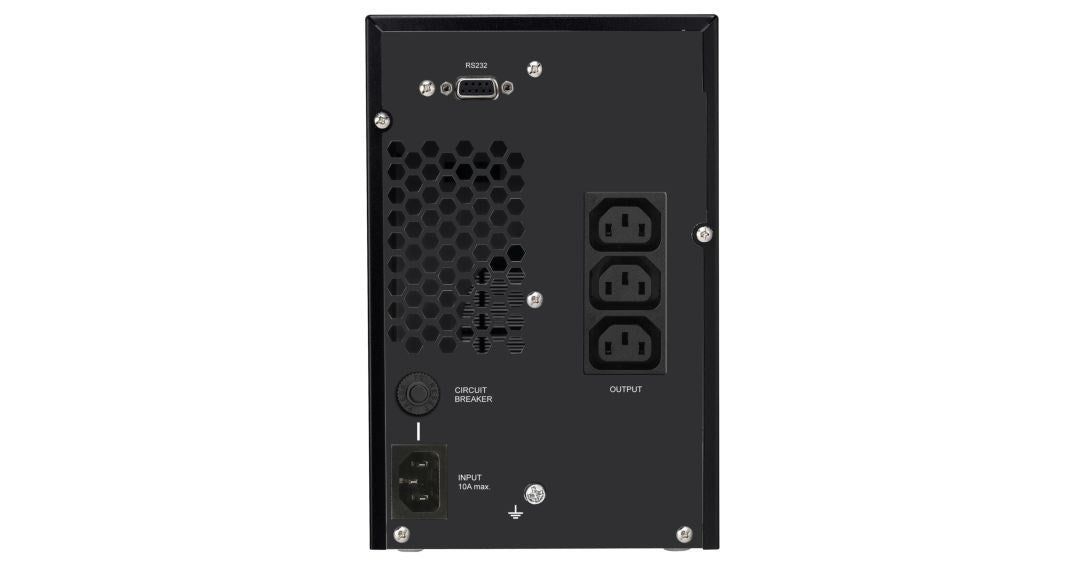

Ports and interfaces

Serial interface Yes
Serial interface type RS-232
Number of AC outputs 3 AC outlets
AC connector types C13 connector
Number of serial ports 1

Battery

Battery capacity 9 Ah
Typical runtime at full load 30 min
Cold start Yes
Required charging current / Charge current 1 A
Battery charging time 4 h
Typical runtime at half load 9 min
Battery voltage 12 V
Battery technology Sealed lead-acid (VRLA)

Safety warning

Warnings Use the device in well-ventilated areas to avoid overheating., Keep away from heat sources and open flames., Do not disassemble the device housing, there may be a risk of electric shock.
