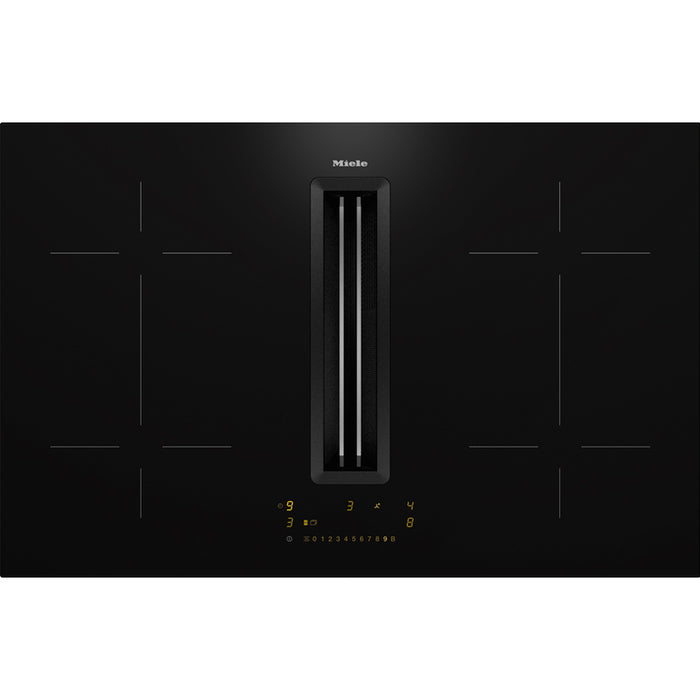

Induction hob with built-in ventilation MIELE KMDA 7473 FL-A Silence

• The quietest TwoInOne from Miele – Motor Silence
• Spacious – 4 large cooking zones incl. 2 flexible zones
• Automatic fan power adjustment – Con@ctivity
• Compact control via digital display – ComfortSelect Plus
• Suitable for flexible extraction installations (e.g. with DFKS-AR)

Technical specifications:

Warm-up type

• Heating type Induction

Construction type

• Induction hob with integrated fume extraction •

Operating modes

• Exhaust air routing with additional accessories DFK-xxxx,DMK 150-1

Design

• Elegant glass ceramic surface •
• Frameless – surface mounted •
• Hidden •
• Ceramic surface color Black
• Concealed hood •
• Cover grille color Stainless steel

Cooking zone data

• Number of cooking zones 4
• Number of cooking zones 2
• Number of cooking zones/cooking area 4/2
• Maximum number of pans 4
• Cooking zones with PowerFlex tech
• Issue 4
• Type Flexible cooking zone
• Diameter in mm Ø 110-210
• Power in W 2100
• Booster in W 3000
• Maximum rated power/rated Booster power/rated TwinBooster power in W 2100/3000/–
• 1st cooking zone/place
• Position Left
• Type Flexible adjustable cooking zone
• Size in mm 210x420
• Max. rated power in W 3000
• Max. rated power in W with Booster function 3700
• Maximum rated power/Booster rated power/TwinBooster rated power in W 3000/3700/–
• 2nd cooking zone/place
• Position right
• Type Flexible cooking zone
• Size in mm 210x420
• Max. rated power in W 3000
• Max. rated power in W with Booster function 3700
• Maximum rated power/Booster rated power/TwinBooster rated power in W 3000/3700/–
• 3rd cooking zone/place
• Maximum rated power/Booster rated power/TwinBooster rated power in W –/–/–
• 4th zone/cooking area
• Maximum rated power/Booster rated power/TwinBooster rated power in W –/–/–

User convenience

• ComfortSelect Plus touch control
• Display color Yellow
• Miele@home •
• Automatic Con@ctivity function •
• Digital display for power level •
• Constant pan recognition •
• Keeping food warm •
• Stop & Go function •
• Call function •
• Reminder timer •
• Safety shutdown •
• Automatic heating •
• Individual setting options (e.g. sound signals) •
• Remaining stroke 5/15 min. •
• Grease filter saturation indicator •
• Activated carbon filter saturation indicator •

Efficiency and sustainability

• Energy efficiency class (from A+++ to D) A+
• Annual electricity consumption in kWh/year 31.5
• Hydrodynamic efficiency class A
• Lighting efficiency class NA
• Grease filtration efficiency class A
• ECO motor •
• Quiet motor •

Convenience of cleaning

• Easy-to-clean glass ceramic •
• Wipe protection •
• Easy-to-clean inner casing coating – CleanCover •

Filter system

• Number of dishwasher-safe stainless steel grease filters (10-layer) 1

Air extraction

• Air intake at min. level (m³/h) in accordance with EN 61591 195
• Air intake at max. level (m³/h) in accordance with EN 61591 538
• Air flow at maximum level/Booster (m³/h) 530/610
• Air intake at Intensive level (m³/h) in accordance with EN 61591 615
• Sound power at min. level (dB(A) relative to 1 pW) in accordance with EN 60704–3 41
• Sound power at max. level (dB(A) relative to 1 pW) in accordance with EN 60704–3 64
• Maximum sound power level/Booster (dB) 64.0/67.0
• Sound power at Booster level (dB(A) relative to 1 pW) in accordance with EN 60704-3 67
• Sound pressure at min. level (dB(A) relative to 20 µPa) in accordance with EN 60704–2–13 27
• Sound pressure at max. level (dB(A) relative to 20 µPa) in accordance with EN 60704–2–13 50
• Maximum sound pressure level/Booster (dB) 50.0/53.0
• Sound pressure level at Intensive level (dB(A) relative to 20 µPa) in accordance with EN 60704-2-13 53

Recirculation

• Air flow at maximum level/Booster (m³/h) –/–
• Maximum sound power level/Booster (dB) –/–
• Maximum sound pressure level/Booster (dB) –/–

Safety

• Safety shutdown •
• Lock function •
• Power-on lock •
• Built-in cooling fan •
• Overheating protection •
• Residual heat indication •
• Window contact switch connection •

Technical characteristics

• Dimensions (W × H × D) in mm 800 x 200 x 520
• Dimensions in mm (width) 800
• Dimensions in mm (height) 200
• Dimensions in mm (depth) 520
• Height of the housing including the electrical installation box in mm 200
• Slot dimensions in mm (width) with surface mounting 780 mm
• Slot dimensions in mm (depth) with surface mounting 500 mm
• Internal cutout dimensions in mm (width) with concealed installation 780
• Internal cutout dimensions in mm (depth) with concealed installation 500
• External cutout dimensions in mm (width) with concealed installation 804
• External cutout dimensions in mm (depth) with concealed installation 524
• Weight in kg 15
• Total rated power in kW 7.5
• Voltage in V 230
• Frequency in Hz 50-60
• Power cable length in m 1.6

Supplied accessories

• Network cable Yes
• Activated carbon filter for recirculation mode No

Warranty: 25 months
