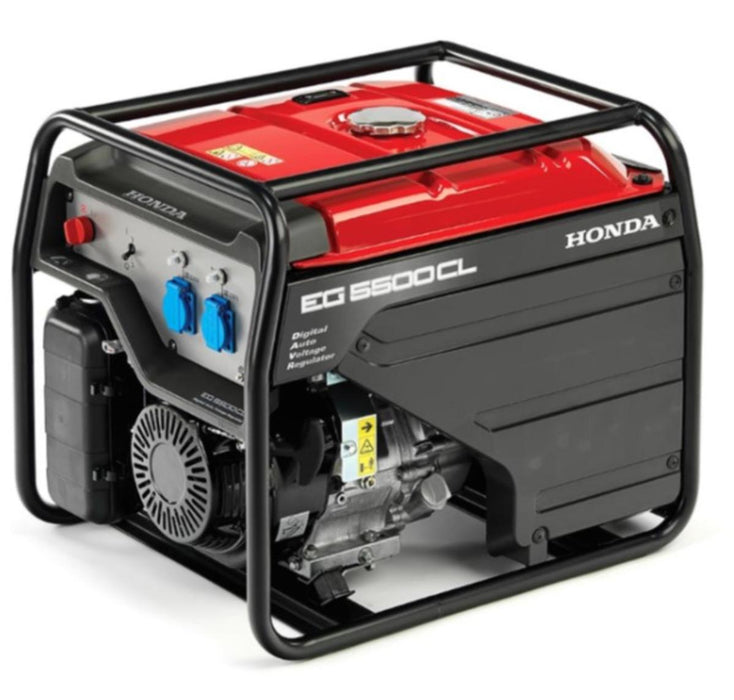

HONDA SINGLE-PHASE GASOLINE GENERATOR

The HONDA EG5500CL GT generator is among the open-frame models with standard voltage regulation designed for industrial purposes under severe operating conditions – primarily in building construction or underground work. The power generator is equipped with a digital automatic voltage regulator (D-AVR). The OHV engine housed in a tubular frame produces huge power with excellent fuel economy, while reducing emissions and noise without the use of a catalytic converter. Centralized controls provide the EG power generator range with ease of use and wide applications.

Technical specifications:

• Engine type: 4-stroke, single-cylinder, OHV
• Petrol engine model GX390T2
• Power: 13 hp
• Displacement (cm3) 390
• Engine/alternator cooling: air
• Rated power (kVA) 5
• Max. power (kVA) 5.5
• Rated output voltage (V) 230
• Rated frequency (Hz) 50
• Fuel tank capacity (l) 24
• Continuous operating time per tank (hours) 8.1
• Noise level dB (A) 82
• Dimensions LxWxH (mm) 681x530x571
• Weight (kg) 82.5
• Manual start
• AC output 230V AC
• Voltage regulation D-AVR
• Engine warranty: 3 years
• Warranty (individuals): 2 years
• Warranty (legal entities): 1 year
