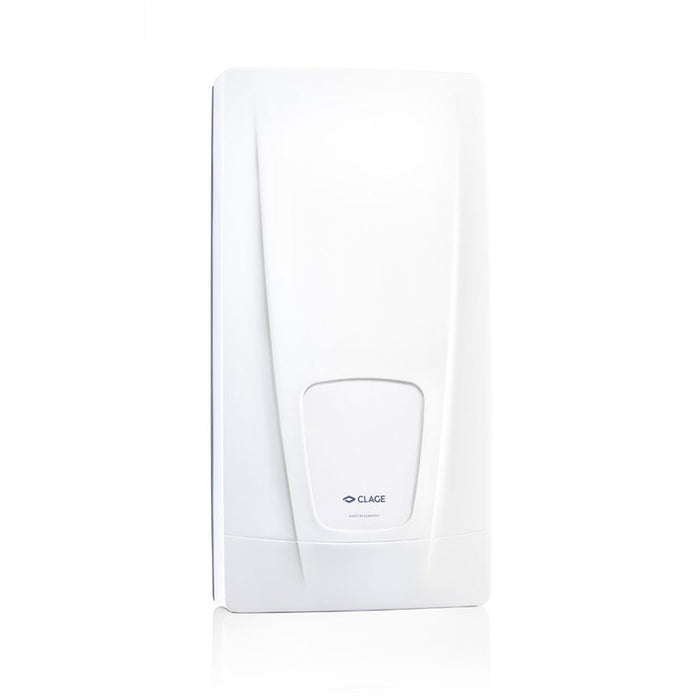

Flow water heater CLAGE DBX 18 NEXT

Flow water heater CLAGE DBX 18 NEXT

by Clage
€358,34 - €358,34
€358,34
€358,34 - €358,34
€358,34
SKU DGT0297108
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Instant water heater

Instant water heater CLAGE DBX 18 NEXT, 18 kW, three-phase power supply, energy class A

Hot water immediately upon opening the tap, without a tank and without heating losses.

The CLAGE DBX 18 NEXT instant water heater heats water electronically at the moment of flow and supplies a sink, kitchen sink, shower, or bathtub. The compact housing with a height of 46.6 cm is mounted on the wall above or below the sink and connects to a 400 V three-phase network. Energy class A with an annual consumption of 485 kWh.

18 kW for 9.2 l/min of hot water

The quantity corresponds to a comfortable shower when heating from about 12 °C to 40 °C. The maximum flow rate is limited to 7.0 l/min to maintain a constant temperature even when the tap is opened further.

Activation at just 1.5 l/min

The electronics detect the flow and start heating at a very low stream, which is convenient for washing hands and with water-saving fixtures. Hot water is obtained without waiting and without preheating a tank.

Model without external control elements

The basic version of the e-comfort series operates fully automatically, and the output temperature is set during installation. The lack of a control panel makes the device more affordable and simplifies daily use.

IP 25 protection and weight 4.2 kg with water

The housing is protected against water jets, which allows installation in close proximity to a sink or shower. Connection is via G ½" threaded fittings, and the operating pressure reaches 1 MPa (10 bar).

Three-phase power supply 400 V with current 26 A

The connection is permanent, with a cable with a cross-section of 4.0 mm², and is performed by a qualified electrician. The maximum inlet water temperature is 30 °C, which allows operation even after a pre-heated water line.

Specifications

General

CLAGEBrand
DBX 18 NEXTModel
727516Store item number
3200-36118Manufacturer catalog number
Electric instant water heaterType
4010436361183EAN

Power and supply

18 kWNominal power
Three-phase, 3~/PE 400 V ACPower supply
26 ANominal current
4.0 mm²Required cable cross-section
AEnergy class
485 kWhAnnual energy consumption

Operating parameters

9.2 l/minHot water flow rate at Δt = 28 K
1.5 l/minActivation flow rate
7.0 l/minMaximum flow rate
30 °CMaximum inlet temperature
1 MPa (10 bar)Maximum operating pressure
G ½"Water connections
IP 25Protection class
≥ 1100 ΩcmSpecific water resistance at 15 °C

Dimensions and weight

46.6 cmHeight
23.0 cmWidth
9.7 cmDepth
4.2 kgWeight filled with water

Warranty

24 monthsWarranty
