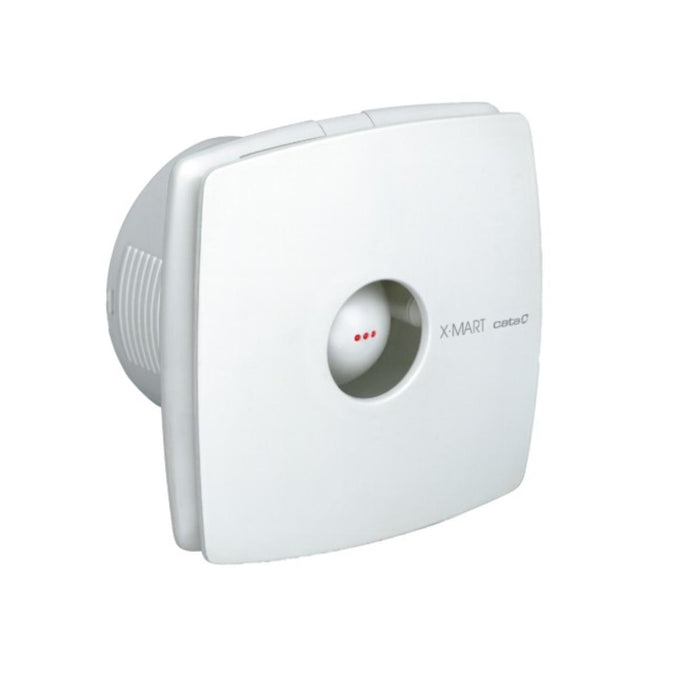

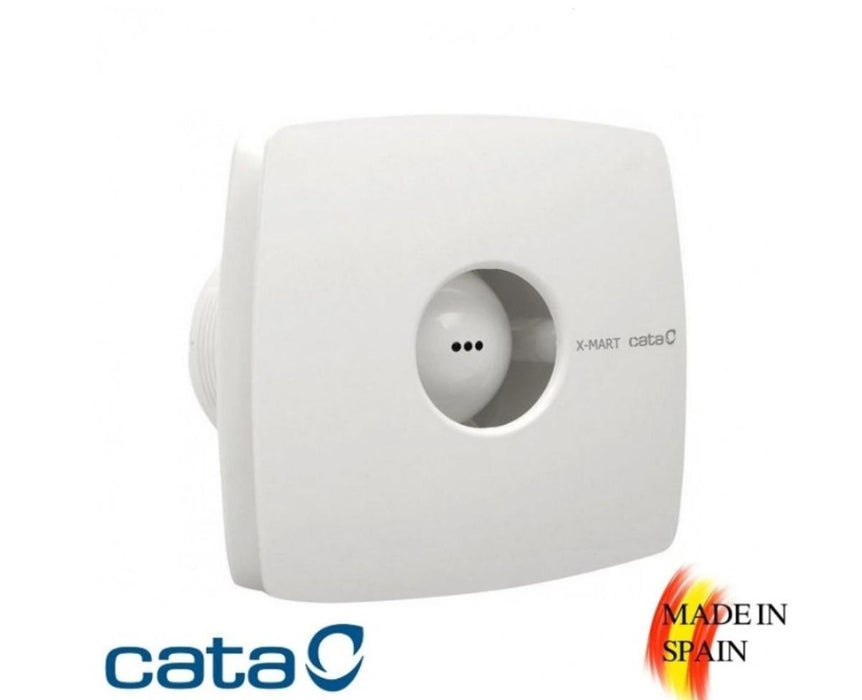

FAN SANITARY X-MART 12S

by CATA
Original price €53,86 - Original price €53,86
Original price
€53,86
€53,86 - €53,86
Current price €53,86
SKU DGT0374809
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Axial bathroom fan with a completely new construction and design. Features very low operating noise, easy installation and easy maintenance.

USE:

Install through a wall or through a window or in shorter pipes with low pressure loss. The fans can be installed in both vertical and horizontal positions. The fan is designed for operation in a basic indoor environment with an ambient temperature from 0 to + 40 ° C, for transporting clean air without dust, grease, chemical fumes and other contaminants. It is also necessary to ensure that the fan does not freeze and condensate from the pipes does not flow into it.

Housing:

The housing and front plate are made of mechanically resistant white thermoplastic ABS with high color fastness. In the INOX version, the housing is gray and the front plate is covered with a stainless steel coating.
The axial impeller is made of ABS.

MOTOR:

Asynchronous with short-circuit armature. It is equipped with reinforced sleeve bearings for the entire service life and an axial bearing for horizontal installation. The motor is equipped with single-use overload protection. Operating temperature is maximum 40 ° C. The degree of protection is IP44. Power supply 230V / 50 Hz.

CONTROLS:

Under the cover there are also accessible controls for setting the required run-on delay and the required humidity (for models with appropriate equipment).

FLOW DIRECTION:

The direction of the exhaust air flow is from the front plate to the rear exhaust opening. It is not possible to change the flow direction.

Installation:

The fans can be installed both on the wall and on the ceiling. For quick and easy installation in plastic pipes, the QUICK FIX GRIP system can be used - expansion levers that spread in the pipe using screws accessible from the front and the fan is fixed. The package also includes dowels and screws for the standard installation method. For this type of installation, the fan has four holes in the corners of the housing (protected by a cover).

VALVE:

All models are equipped with a foil non-return valve to prevent air from entering from the exhaust pipe back into the room when the fan is not in use.

SPEED CONTROL:

Carried out by electronic or transformer speed controllers by changing the voltage.

NOISE:

The noise level is measured at a distance of 2 m in the suction axis with the fan running at full speed.

MAINTENANCE:

The front plate can be easily removed by pulling and rinsed under running water.

Equipment:

Models marked with T are equipped with a delay timer with delay time adjustment in the range of 3-15 minutes (red dial). Models marked with H are equipped with automatic humidity with adjustment of the required humidity level in the range of 40–90% rel. humidity (blue dial) and also includes a delay timer function.

INDICATIONS:

The closure of the switch is indicated by the light of three dots in the fan canopy. For models marked T and H, the dots light up during the auxiliary control terminal phase.

• Power supply [V / Hz] 230/50
• Power consumption [W] 20
• Air flow [m3 / h] 190
• Speed [min] 2450
• Static pressure [Pa] 49
• Sound pressure [dB / 3m] 42
• Temperature max. [C] 40
• Weight [kg] 0.85
• Protection [IP] X4
• Diameter [mm] 120
