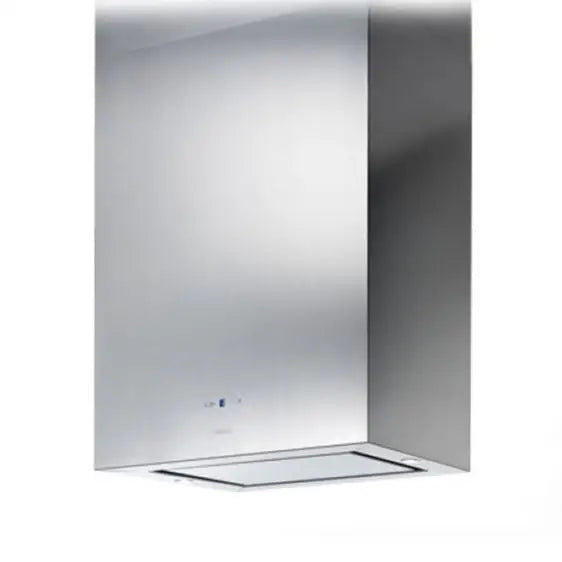

ELICA Kuadra Island 43 hood

The Kuadra hood by Elica is made entirely of stainless steel with a rectangular shape and touch control, equipped with a motor designed with special technology allowing to achieve 450 Pa of pressure, while the noise levels are significantly lower. The Kuadra is designed with a plate above the filter, allowing for perimeter suction, which concentrates the suction power over a greater distance.

Technical specifications:

• Code: PRF0007655A

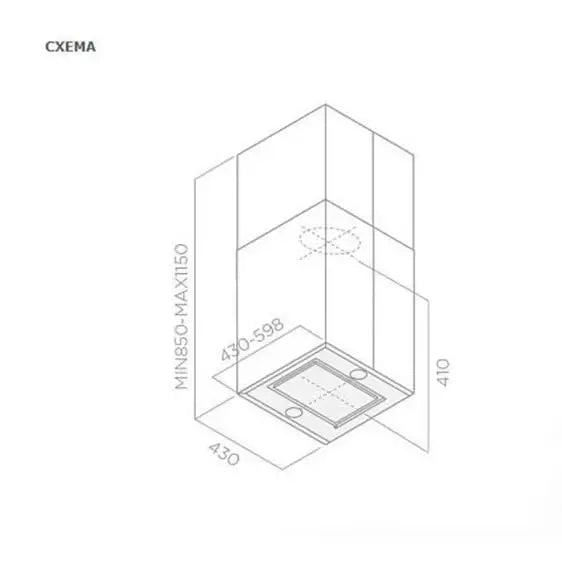

• Size (cm) 43 x 43
• Max. airflow (m3/h) 496
• Free air flow (m3/h) 650*
• Coating/colors Stainless steel
• 3C control + St. touch buttons
• Lighting Halogen 2 x 20 W
• Hood type With exhaust duct

*In a hood installation system - in air recirculation mode, without ducting

• Number of turbines 2
• Pipe size (mm) 150
• IEC air flow (m3/h) 224 - 323 - 416 - 496*
• Noise level db(A) 48 - 55 - 62 - 66*

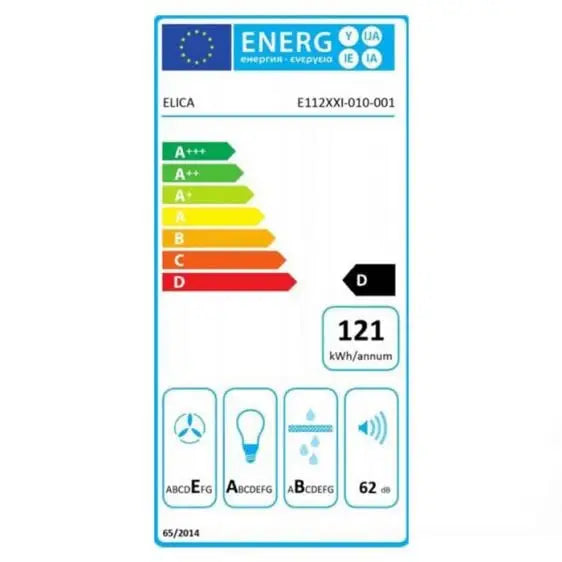

• Energy efficiency class D
• Power (W) 290

* intensive level - can be active for only 5 minutes, after which the aspirator automatically returns to the previous operating speed

Warranty: 60 months
