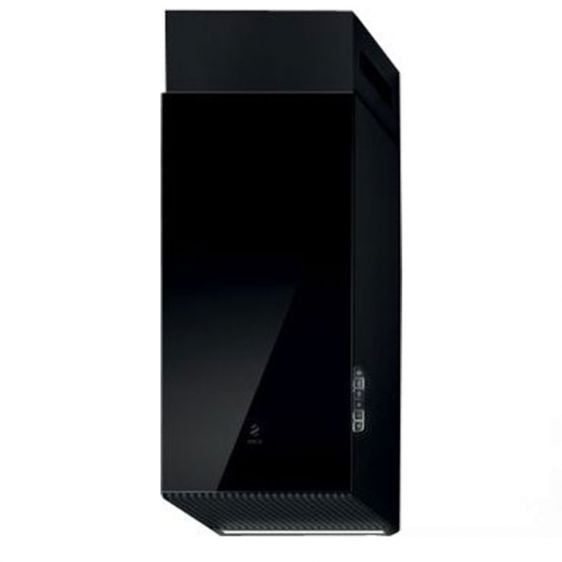

ELICA Haiku BL 32 hood

Design: Fabrizio Crisà

Harmony and simplicity!

The Haiku hood is the work of designer Fabrizio Crisà, winner of 4 international design awards in 2019. The aesthetic linearity can be seen in the cast iron grilles that strongly characterize the product. The wide variety of sizes, its depth of 32 cm and telescopic mounting system make this hood ready to fit into the interior of any kitchen.

Thanks to the sizes in which it is available, Elica Haiku is perfect for a wide range of design solutions. It is available in a wall-mounted version (32, 60, 90 and 120 cm) and in an island version (32, 120, 180 cm). It is available with a front panel in stainless steel, black glass, white glass or technical stone with a cement effect.

Shift 3238 system
Elica is the first manufacturer on the market to offer an innovative wall-mounted bracket system - SHIFT 3238, thanks to which installation operations are greatly simplified. Haiku can be positioned either flush with the shelves or in such a way as to increase the working space on the hob. SHIFT 3238 allows millimetric adjustment of the depth of the hood body. Limitations simply disappear and aesthetic solutions multiply, especially the advantages in the cleaning process.

European Product Design Award - design award
German Design Award - design award
Iconic awards - award for innovation in interiors
IDA design awards - bronze design award

Technical specifications:

• Code: PRF0146263
• Size (cm) 32
• Max. airflow (m3/h) 710
• Free air flow (m3/h) 800*
• Finish/colors Black glass panel and black lacquer body
• Control Illuminated buttons for 3 levels + Intensive + Light
• Lighting LED strip 7W 3500K
• Hood type With exhaust duct

*In a hood installation system - in air recirculation mode, without ducting

Technical characteristics

• Number of turbines 2
• Pipe size (mm) 150
• IEC air flow (m3/h) 115 - 305 - 410 - 530* - 710*
• Noise level db(A) 32 - 47 - 52 - 58* - 65*
• Energy efficiency class A
• Lighting intensity LUX 281
• Power (W) 260

* intensive level - can be active for only 5 minutes, after which the aspirator automatically returns to the previous operating speed

Warranty: 60 months
