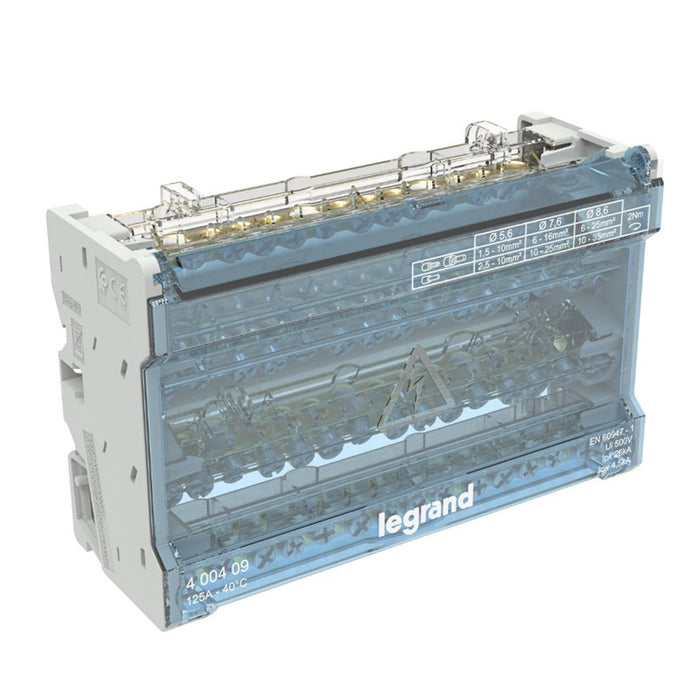

EIGHT-MODULE DISTRIBUTION BOARD WITH DISTRIBUTION BARS 125A 4P LGR 400409 LEGRAND

Product features

Input input 10 - 35 mm² solid or 6 - 25 mm² stranded with or without ferrule

14 Output: 3 x 10 - 25 + 11 x 2.5 - 10 mm² solid wire

14 outputs: 3 x 6 - 16 + 11 x 1.5 - 10 mm² flexible wire with or without ferrule

In = 125A - 40°C Ui = 500 V

Ipk = 26 kA - 60 ms Icw = 4.5 kA - 1s

Installation

Easy and fast wiring and connection thanks to maximized wiring space, optimized strip "orientation" and adapted connection sizes and positions

Use

Integrated system to avoid accidental loosening of unconnected screws

TECHNICAL SPECIFICATION:

Number of poles:       4

Rated current:    125 A

Connection type: Screwing

Installation method : DIN rail

Height:   92 mm

Width:     143 mm

Depth: 51 mm

Impact resistance rating (IK): IK05

Degree of protection (IP):   IP00

Operating/setting temperature:     -25-70 °C

Storage temperature: -40-70 °C

Rated voltage:        0-500V

Halogen-free:      No

Type of distribution blocks:        Phase/neutral

Terminal capacity:    1.5-25 mm²

Label/information surface space: No
