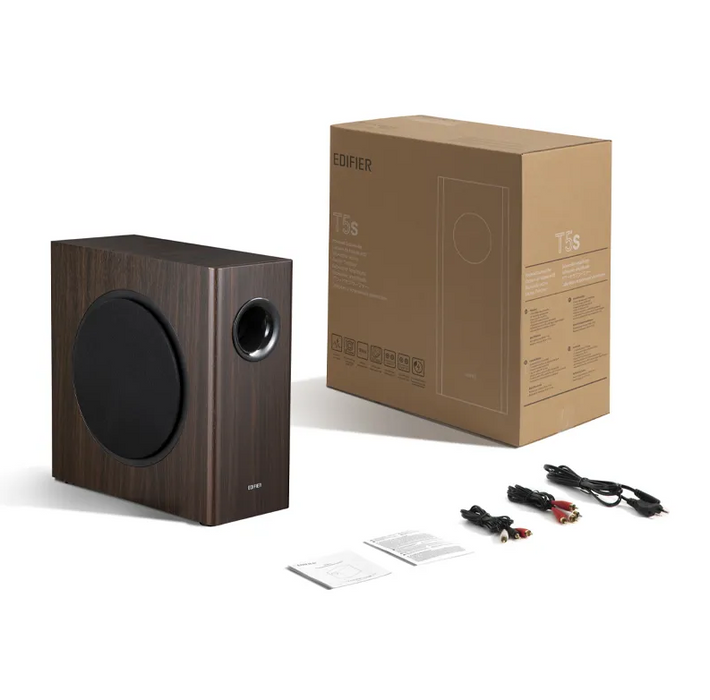

Edifier Active subwoofer T5s, Brown

Deep and powerful bass

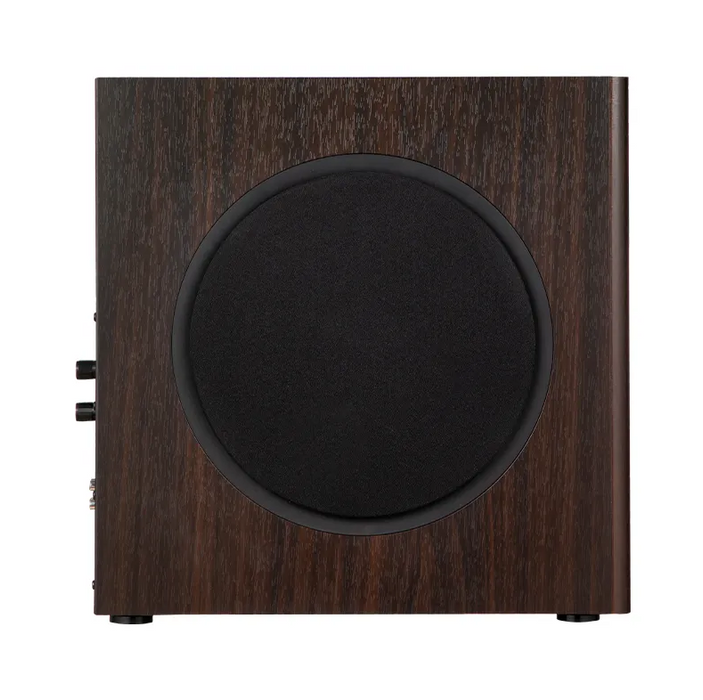

Equipped with an 8" long-throw woofer, this subwoofer delivers deep, room-filling bass with a frequency response down to 35Hz. A high-efficiency switching power supply and closed-loop Class D amplifier deliver 70W RMS output for powerful, consistent performance.

Precision digital signal processing
With its high-performance analog front end and digital amplifier, the subwoofer delivers precise sound conversion and amplification. The built-in digital signal processor (DSP) enables precise low-pass filtering and phase alignment for seamless integration with your speaker system.

Low distortion design
An 18mm MDF (medium density fiberboard) cabinet minimizes resonance and distortion, resulting in a tight, clean, and well-defined bass response.

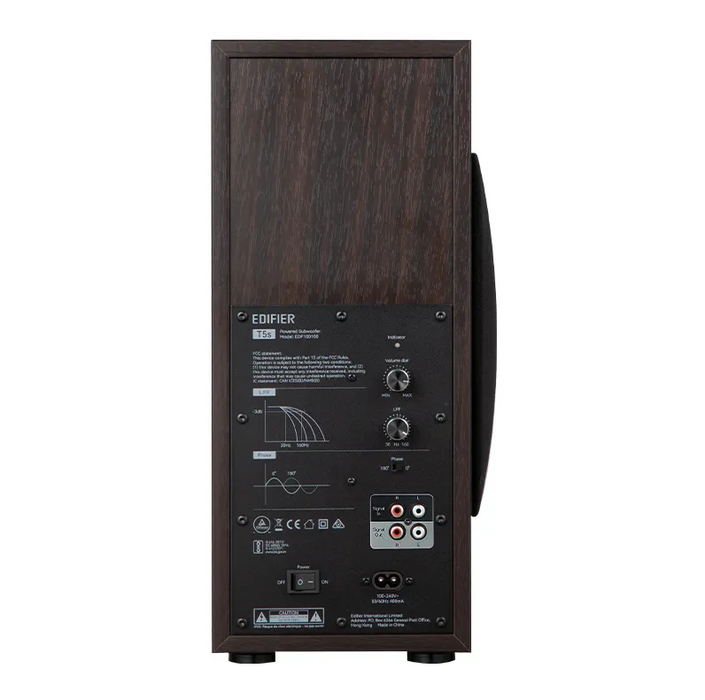

Flexible connectivity
Input and output ports provide broad compatibility with desktop speakers, library systems, and home theater receivers.

Method 1:
If your main speaker system includes a dedicated subwoofer output, connect it to the subwoofer's signal input ports. Then connect the main speaker system directly to the audio source.

* Compatible EDIFIER speaker models: EDIFIER R1280Ts, EDIFIER R1280DBs, EDIFIER R1700BTs, EDIFIER R1850DB, EDIFIER R1855DB, EDIFIER R2750DB, EDIFIER R2850DB, EDIFIER S880DB MKII, EDIFIER D12...

Method 2:
If your speaker system does not have a subwoofer port, connect its input to the subwoofer's Signal Out ports. Then connect the subwoofer's Signal In ports to the audio source.

Automatic standby function
To save energy, the subwoofer automatically goes into standby mode after 15 minutes of inactivity and wakes up when audio playback resumes.

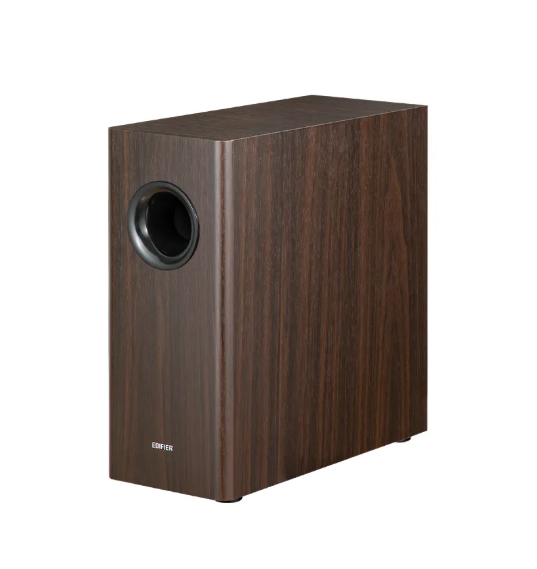

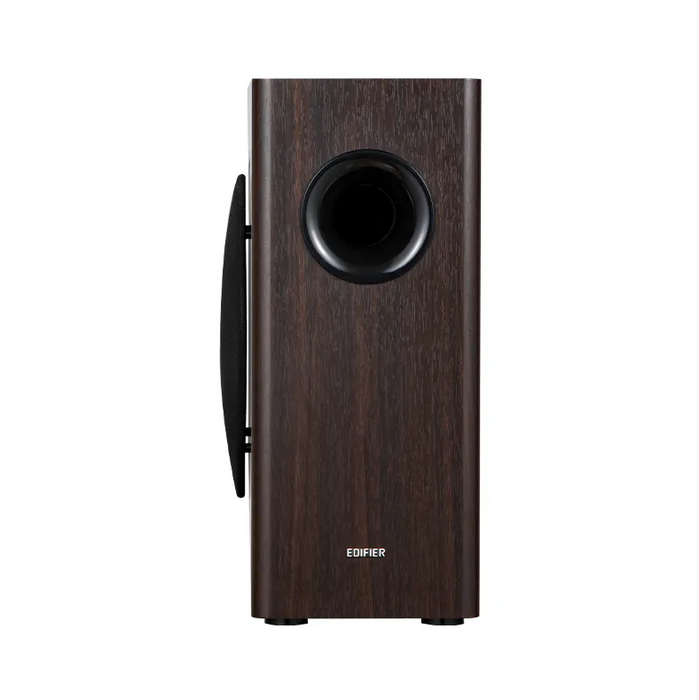

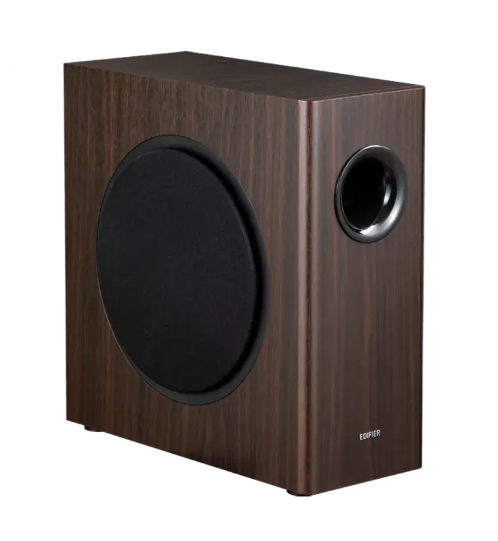

Stylish and compact design
Wrapped in a wood-grain vinyl finish and a low-profile grille, this subwoofer blends seamlessly into any room interior. The slim vertical cabinet design allows for flexible placement in tight or awkward spaces.

Features:

- Total output power (RMS): 70W
- Driver: 8-inch (220 mm)
- Frequency range: 35Hz - 115Hz
- Signal to noise ratio: ≥ 85dB (A)
- Audio inputs: RCA
- Input sensitivity: 150 ± 20mV
- Dimensions (W x H x D): 399 mm × 400 mm × 170 mm
- Net weight: 10.38 kg
