70W (RMS) total output power with quality sound
1.25" silk dome tweeters and 2.75" long-excursion aluminum cone mid-woofers
Full digital signal processing, two-way active crossover and DRC
Hi-Res Audio and Hi-Res Audio Wireless certified
Awesome lighting effects powered by patented TempoAbyss technology
65W TurboGaN fast charging via two USB Type-C ports and one USB Type-A port
Bluetooth V5.3, USB and LINE IN inputs; subwoofer output port available
Works with the EDIFIER ConneX mobile app for more features
All-in-one system for acoustics, Lumia and electronics
· High-quality acoustic architecture with Hi-Res Audio and Hi-Res Audio Wireless certification and LDAC support.
· Beautiful preset and customizable lighting effects.
· Safe and high-efficiency USB charging ports powered by TurboGaN technology.
Well-designed acoustic architecture
The 2.75-inch mid-low frequency drivers, with an aluminum alloy diaphragm and benefiting from a long-throw design, can reproduce bass down to 55 Hz and make midrange sounds thick and rich.
The 1.25-inch silk dome tweeters are finely tuned for precise high-frequency reproduction, with high tones sounding clear and bright.
With the MDF enclosure, independent acoustic cavity, and enhancements through patented MazeTube bass reflex channels and TurbMuff airborne noise suppression technology, port noise and acoustic resonance are reduced to the lowest level.
End-to-end high-resolution audio processing
The end-to-end audio process stream supports high-resolution audio up to 24-bit/96 kHz.
Dual TI Class-D digital audio amplifiers provide precise two-way active crossover, separately amplify high-frequency signals and mid-low-frequency signals, and effectively manage DRC.
High-Resolution Audio and Wireless Certified High-Resolution Audio
The USB-A and RCA audio input ports support high-resolution audio signals. With the enhancement of LDAC technology, you can also stream lossless audio up to 24-bit/96 kHz to this speaker via Bluetooth.

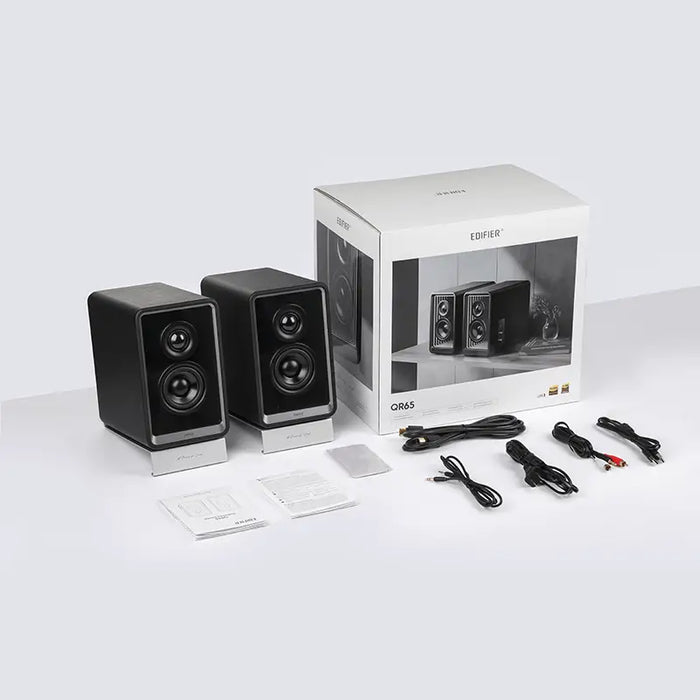

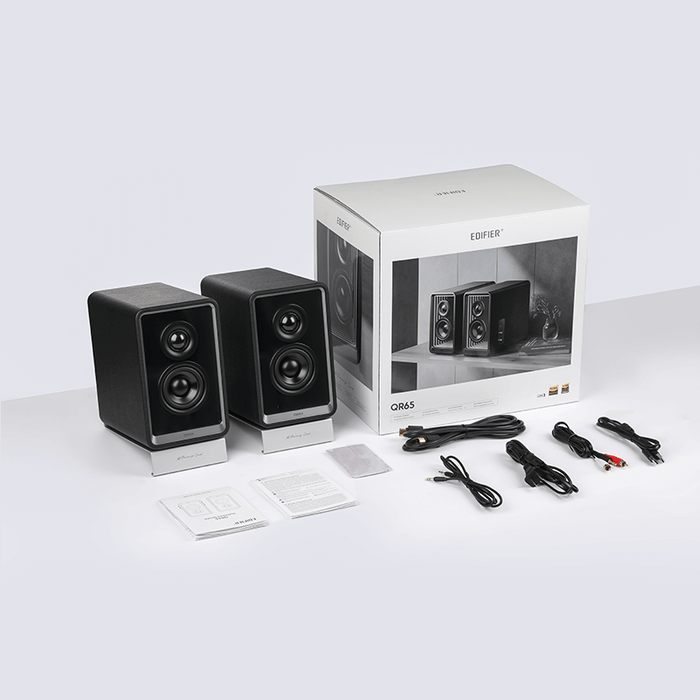

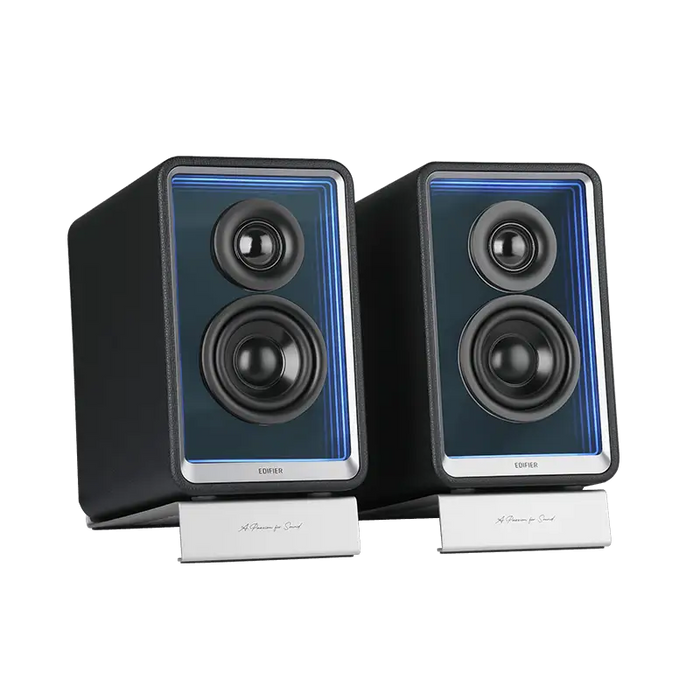

Speaker stands included
With the included aluminum speaker stands, sound coloration effects that arise from sound reflection on the desktop surface can be effectively reduced.
Meanwhile, the 10-degree angle design is to direct the sound right at ear level when the speaker is placed on the desktop.
Need more bass?

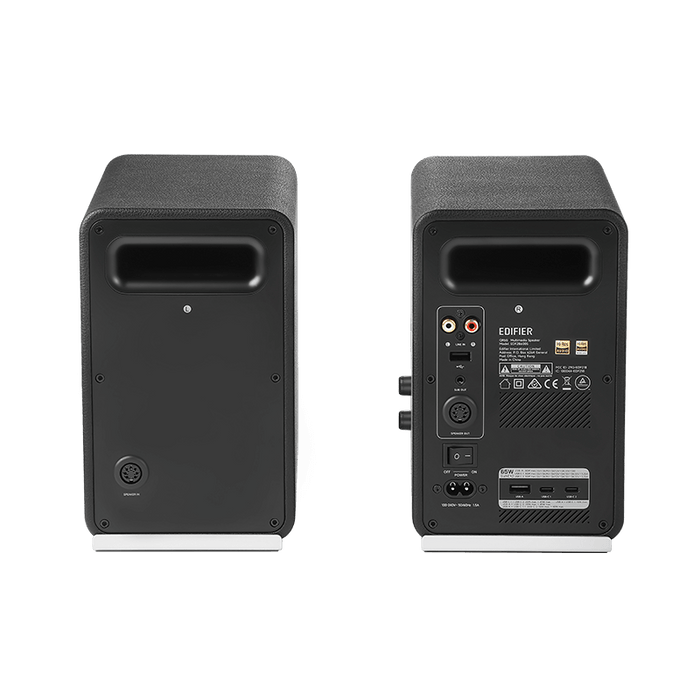

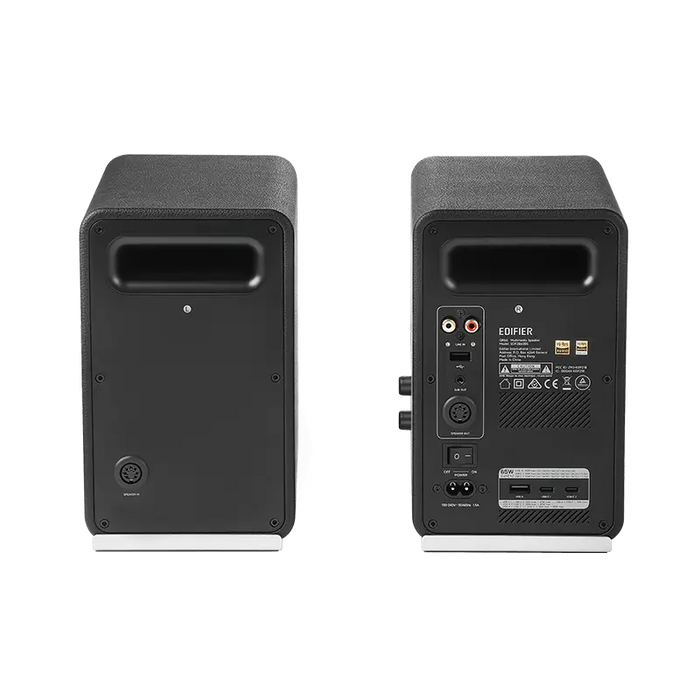

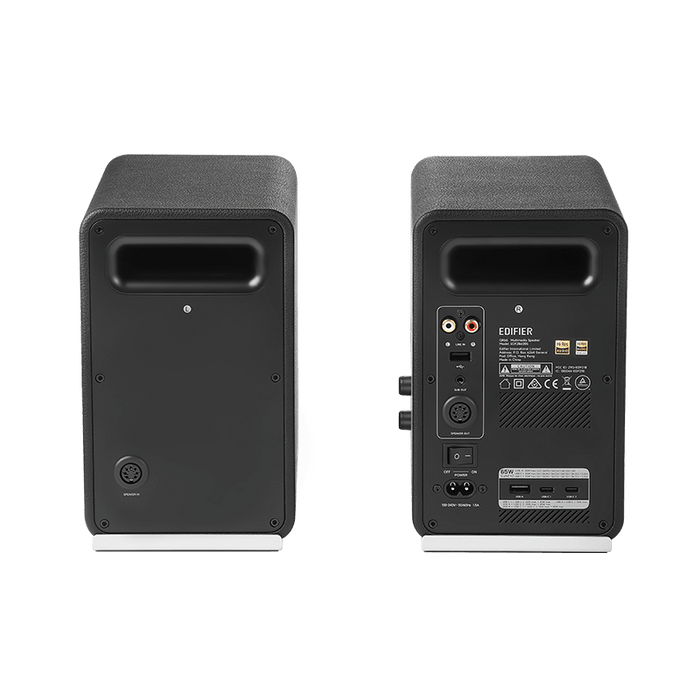

The SUB OUT port on the rear panel is available for connection to an external subwoofer for more powerful bass.

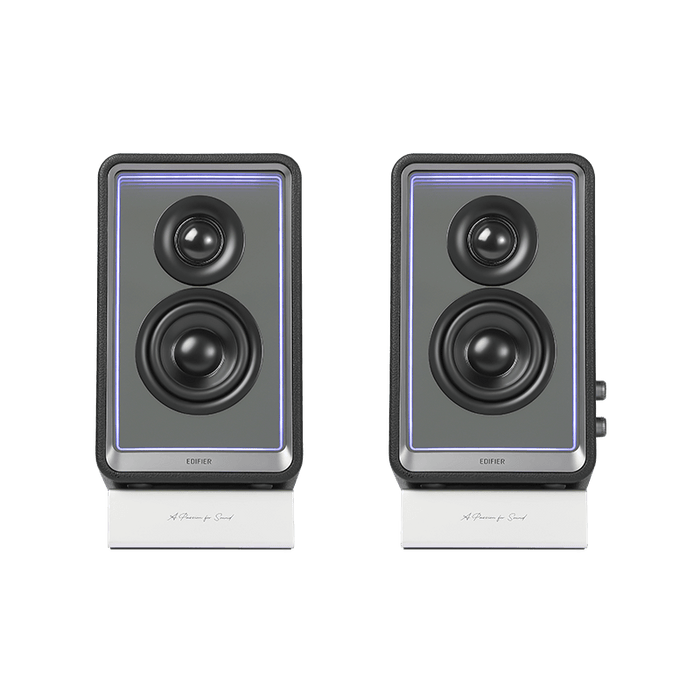

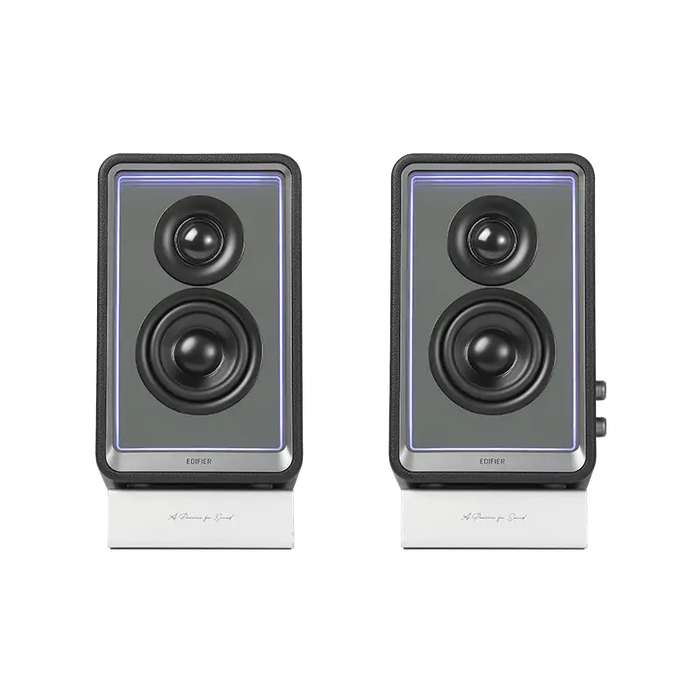

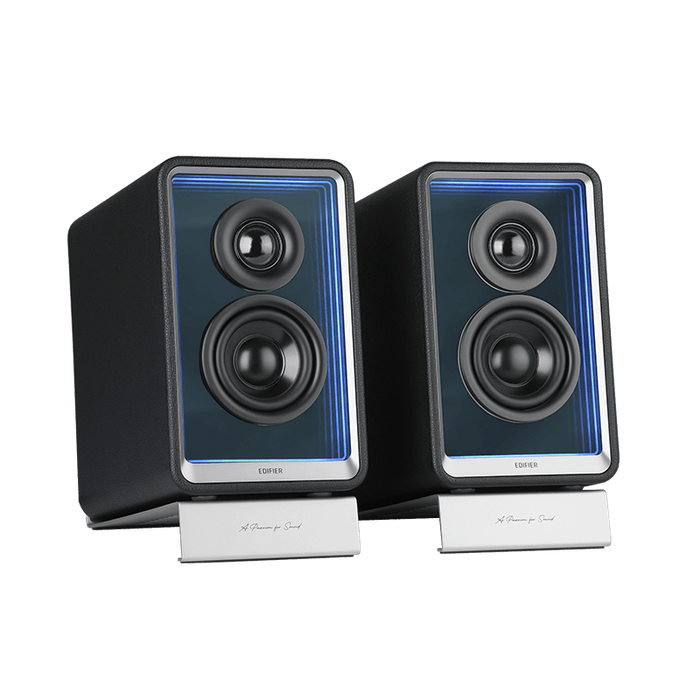

Brilliant lighting effects
Powered by our patented TempoAbyss technology, the partition can display magnificent lighting effects that appear like layers of light strips falling down from the mirror.
With the button on the side panel, 11 preset lighting effects are available for your choice. You can also customize your own lighting effects from over 16 million in the EDIFIER ConneX app.
TurboGaN High-efficiency charging
Powered by TurboGaN charging technology and supporting major fast charging protocols, it can charge 1000+ compatible devices with high efficiency.
With the improvement of constant fast charging technology, constant temperature control technology, and intelligent power distribution technology, fast and safe charging is guaranteed.
USB-C 1 (65W max)
5V⎓ 3A, 9V⎓ 3A, 12V⎓ 3A, 15V⎓ 3A, 20V⎓ 3.25A
USB-C 2 (65W max)
5V⎓ 3A, 9V⎓ 3A, 12V⎓ 3A, 15V⎓ 3A, 20V⎓ 3.25A
USB-A (60W max)
5V⎓ 3A, 9V⎓ 3A, 12V⎓ 3A, 15V⎓ 3A, 20V⎓ 3A
USB-C 1 and USB-C 2 (20 W max. + 45 W max.)
USB-C 1 and USB-A (15 W max.)
USB-C 2 and USB-A (20 W max. + 45 W max.)
USB-C 1, USB-C 2 and USB-A (15 W max. + 45 W max.)
Works with the EDIFIER ConneX app
Download the app and enjoy more features.
* Playback control
* Switch and customize sound effects
* Switch and customize lighting effects
* User manual
Specifications
Total output power (RMS): High frequencies 15W x 2, mid-low 20W x 2
Charging output power: 65W max
Driver units:
Tweeters: 1.25 inches (32 mm)
Medium low: 2.75 inches (70 mm)
Frequency response: 55Hz - 40kHz
Signal-to-noise ratio: ≥ 85 dB (A)
Audio inputs: Bluetooth, USB-A, RCA
Bluetooth version: V5.3
Dimensions (W x H x D):
141.5 mm x 213 mm x 216.8 mm (Active Speaker)
130 mm x 213 mm x 212 mm (passive speaker)
Net weight: 5.3 kg
