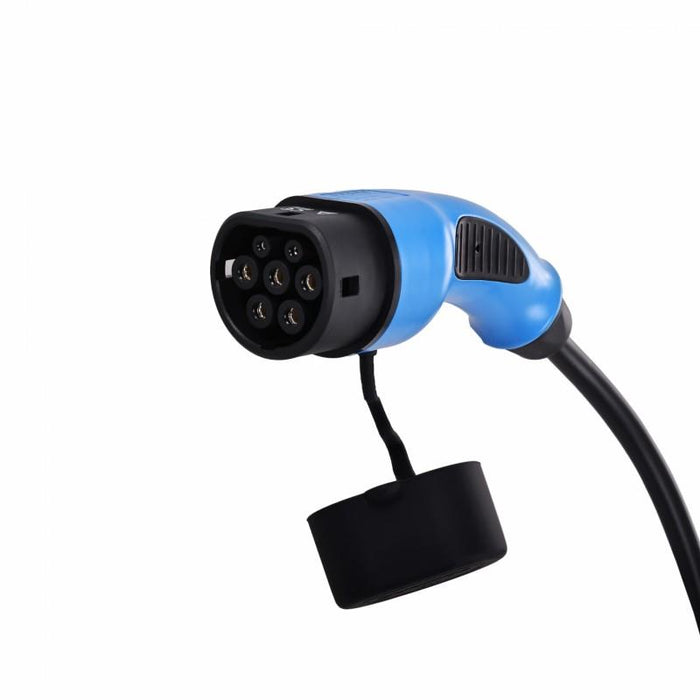

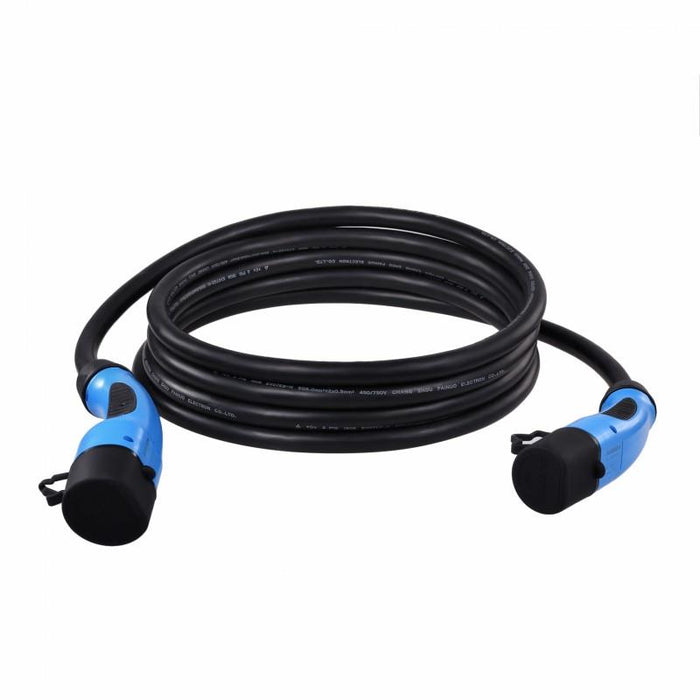

THREE-PHASE EV CHARGING CABLE DUOSIDA TYPE 2 22 KW Three-phase cable Duosida, designed for charging electric vehicles with Type 2 connector (IEC-62196). With it you will be able to easily and quickly charge your car from any public AC station with power up to 22 kW! High-quality workmanship with TUV certificate. Which charging stations can I charge with this cable? Duosida cables, marked "Type 2 to Type 2" (IEC-62196), offered by EVPoint, are suitable for charging stations with a Type 2 socket. This means that with this cable you can charge your electric vehicle or plug-in hybrid at almost all public charging stations in Europe with power up to 22 kW! What is the optimal length of the charging cable? If you use the charging cable at a specific place, for example at home or at work, it is important to choose the cable length carefully. It is usually between 4 and 6 metres. If the cable is used mainly when you are on the road (public charging stations) or in different places (where other vehicles may be parked between the charging station and your vehicle), we recommend choosing a longer length. What is the weight of charging cables? The weight of a charging cable can be calculated by adding half a kilogram per metre and one kilogram for the two connectors. An 8-metre charging cable weighs about 5 kilograms. The exact weight can be found in the technical parameters of the product. How fast can I charge with this cable? An electric car can travel on average about 5.5 km per 1 kWh of energy stored in the battery. The maximum current for this charging cable is 32 A with a maximum of 3 phases (450 V). If this cable is connected to a charging station that can supply three-phase power at 32 A, the cable can deliver approximately 22 kW of continuous power. So, if the car is charged at the maximum 22 kW, it can charge 22 kWh (kilowatt-hours) in one hour, which corresponds approximately to a range of 110 km (5.5 km x 22 kWh). Thus, the maximum charging speed of the cable is 110 km / hour (when connected to a charger that can provide three-phase charging at 32 A). Please note that the actual charging speed also depends on the charging speed of the vehicle's onboard charger. The Duosida charging cable has two Type 2 connectors, male and female, standard IEC62196-2. The cable specifications allow three-phase charging up to 32 A, which means you can charge at a maximum power of up to 22 kW. The cable is made of high-quality materials and ergonomic connectors resistant to impact, moisture and repeated plug-in and unplug cycles. It is suitable for charging electric Teslas, Renaults, Smarts and others. Manufacturer: DUOSIDA Number of phases: three-phase Cable specification: 5 x 6 mm² (L1, L2, L3, N, PE) + 2 x 0.5 mm² (PP, CP) Operating voltage: 450 VAC Maximum current: 32 A Power: 22 kW Connector on the vehicle side: Type 2 female, standard IEC62196-2 Connector on the charging station side: Type 2 male, standard IEC62196-2 Cable type: straight Contact resistance: max. 0.5 mΩ Operating cycles: >10,000 plug-in and unplug cycles Operating temperature: -30°C to 50°C Cable colour: black Connector colour: blue Length: 5 metres Degree of protection: IP44 Certificates: CE, TÜV, IEC, RoHS Warranty: 24 months Weight: 3.500 kg.
