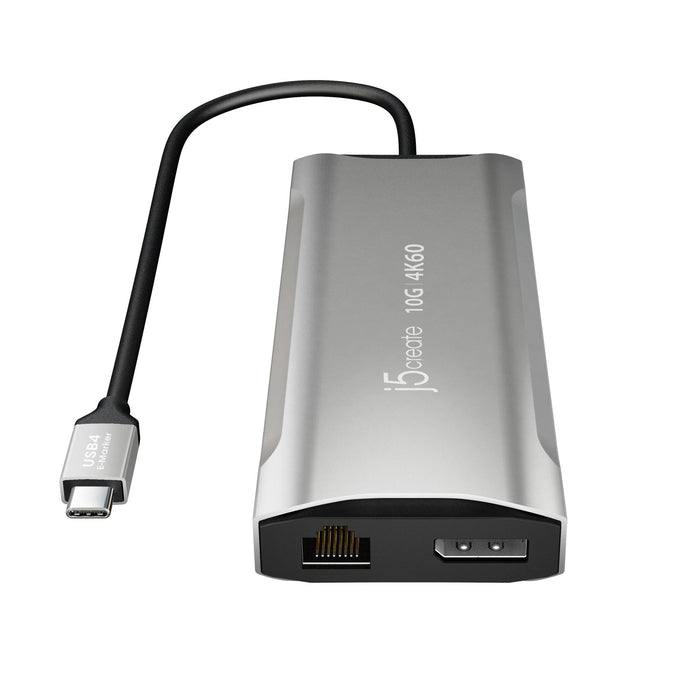

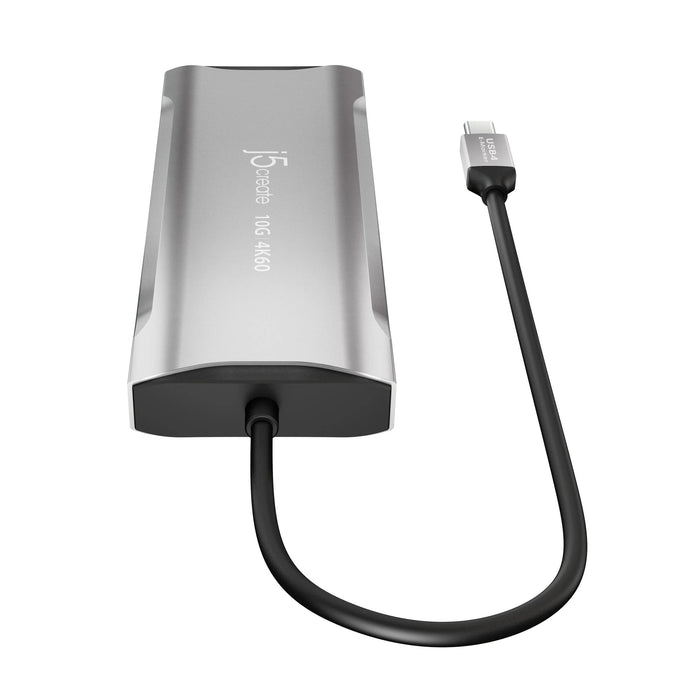

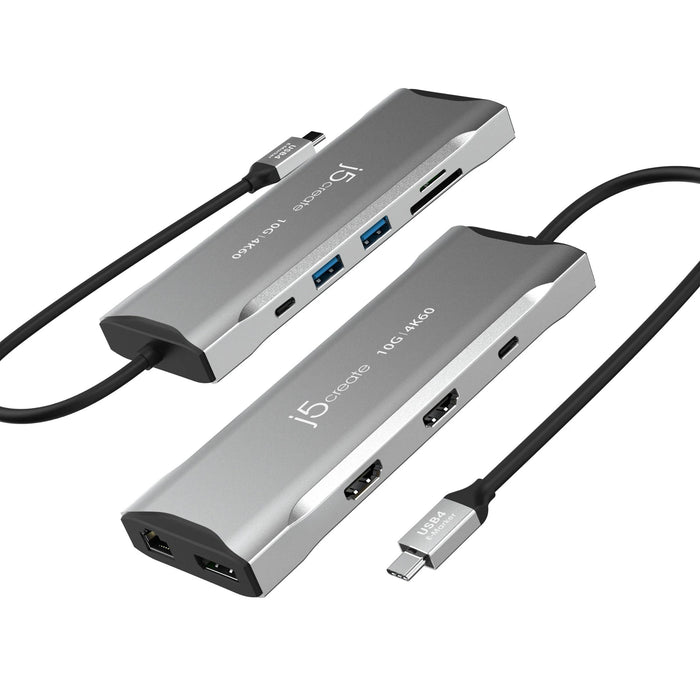

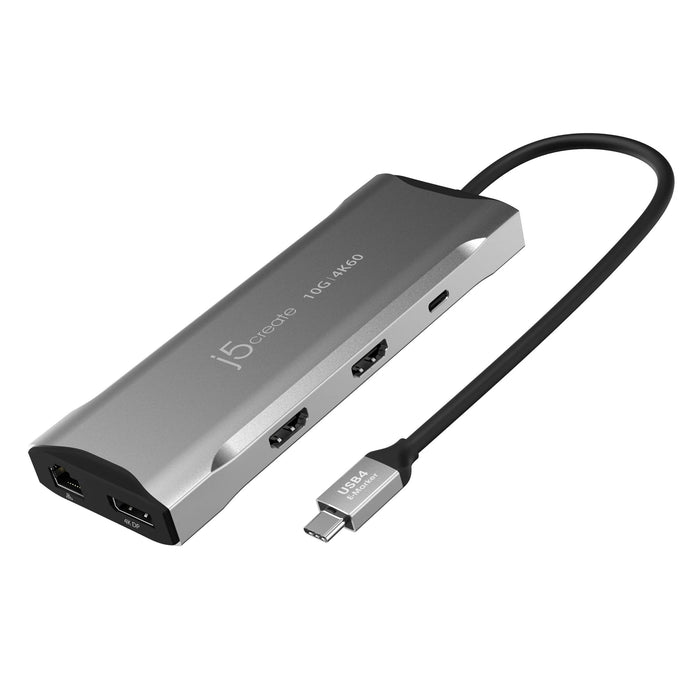

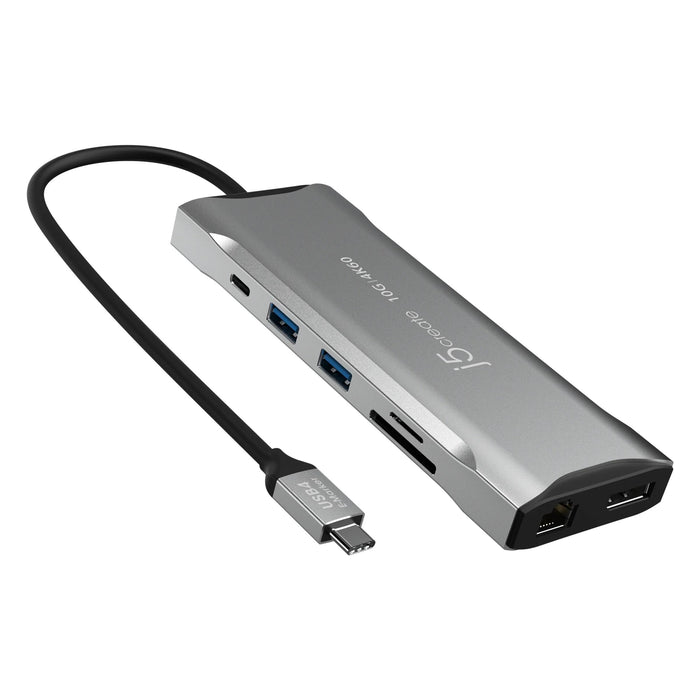

Docking station j5create JCD397 100W, 4K60 Elite USB-C, 10Gbps

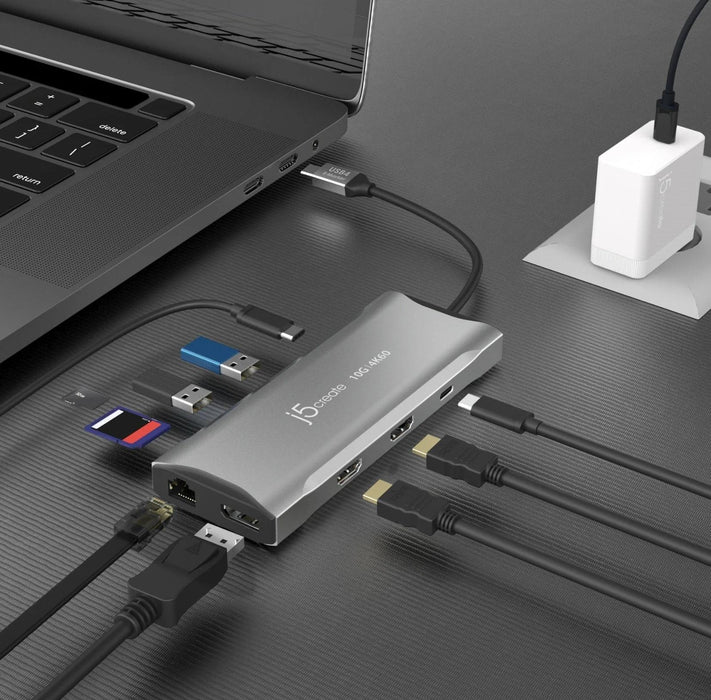

The USB-C Modular Docking Station for Dual Displays is a versatile mini docking station featuring 2 detachable magnetic assemblies along with the main body to give you flexible configurations for video, data storage, and charging. The two detachable magnetic assemblies are standalone mini adapters that allow you to add additional functionality. Each module can operate separately as a standalone mini adapter or be magnetically attached for use with the main body. This compact modular docking station gives you all the connections you need to do more with support for dual monitors and two USB™ 3.0 Type-A peripherals. Break free from your home office and take your work on the go with this magnetic docking station!

- Advanced USB-C E-Marker chip integrates USB4, Thunderbolt 3 and Thunderbolt 4 compatibility
- USB 3.1/3.2 compatible
- Three SuperSpeed ​​USB 10Gbps downstream ports (1 USB-C and 2 Type-A) for connecting peripherals
- Charge and power connected laptops and peripherals with 100W of power
- SD & microSD 4.0 memory card reader/writer
- Easily add wired network connectivity with the Gigabit Ethernet port
- Plug-and-play, no driver installation required
- Extend a single display up to 3840 x 2160 @ 60, easily switch to a higher refresh rate of 2560 x 1440 @ 144 via HDMI
or 1920 x 1080 @ 240 via DP port to enjoy your games under Windows OS.
- Supports dual 4K 60 Hz or triple 4K 30 Hz (2 HDMI and 1 DisplayPort) on compatible USB-C laptops with DisplayPort 1.4 alt mode with MST support

Connection: 1 - USB-C male
Network interface: RJ45 (Gigabit Ethernet)
Ports: 1 - USB-C 10Gbps
1 - USB-C 5Gbps with Power Delivery 3.0
2 - USB Type-A 10Gbps
1 - USB-C Power Delivery 3.0
2 - 4K HDMI
1 - DisplayPort
1 - SD & microSD 4.0 memory card slot
1 - RJ45 Gigabit Ethernet
Video outputs: 2 - HDMI female
1 - DisplayPort female
Audio channels: 2.1 via HDMI
Compatible networks: 10/100/1000 Mbps
Supported displays: 3
Max. data transfer: 10 Gbps
Max. frequency: Windows® (MST)
- 3840x2160 @ 60
- 2560 x 1440 @ 144 via HDMI
- 1920 x 1080 @ 240 via DP
Max. resolution: 3840 x 2160
Input current: up to 5A
Input voltage: up to 20V
Output current: up to 4.25A
Output voltage: up to 20V
Power delivery: up to 100W via USB-C
