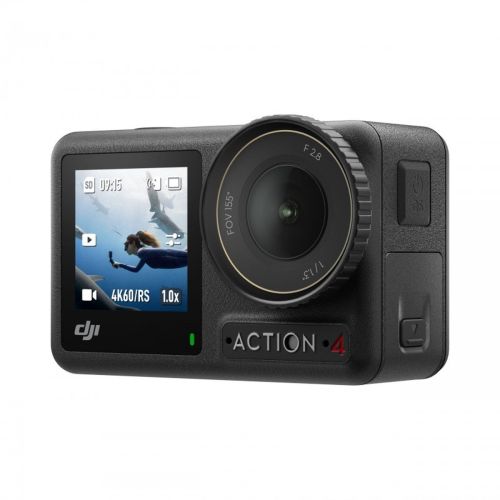

DJI Osmo Action 4 Standard Combo Action Camera 10 MPx 4k 120fps Black EU (CP.OS.00000269.01)

Technical specifications:

General

• Dimensions: 70.5 × 44.2 × 32.8 mm (L × W × H)
• Weight: 145 g
• Waterproof:

  • 18 m without Waterproof Case
  • 60 m with Waterproof Case
• Notes: Close battery compartment, USB-C port cover, and tighten Glass Lens Cover before use. Waterproof Case recommended for long-duration underwater use or high water impact environments. Not suitable for hot springs or corrosive liquids.
• Number of Microphones: 3
• Touchscreens:

  • Front Screen: 1.4-inch, 323 ppi, 320 × 320

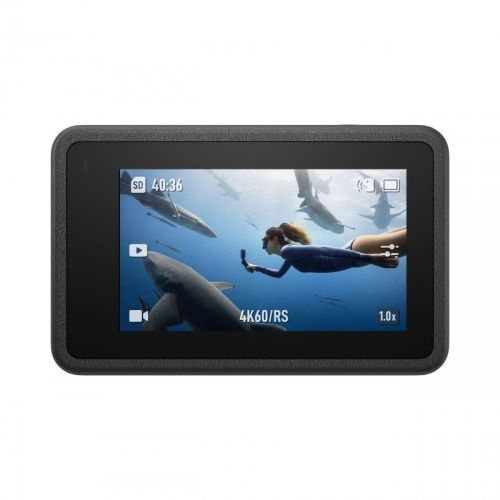

  • Rear Screen: 2.25-inch, 326 ppi, 360 × 640
• Brightness: 750 ± 50 cd/m²
• Supported SD Cards: microSD (up to 512 GB)
• Recommended microSD Cards:
• SanDisk Extreme PRO, Kingston CANVAS Go! Plus, Kingston CANVAS React Plus, Lexar Professional 1066x (various capacities)

Camera

• Sensor: 1/1.3-inch CMOS
• Lens:

  • FOV: 155°
  • Aperture: f/2.8
  • Focus Range: 0.4 m to ∞
• ISO Range:

  • Photo: 100–12800
  • Video: 100–12800
• Electronic Shutter Speed:

  • Photo: 1/8000–30 s
  • Video: 1/8000 s to frame rate limit
• Max Photo Resolution: 3648 × 2736
• Zoom:

  • Photo: 4× Digital Zoom
  • Video: Max 2× Digital Zoom
  • Slow Motion/Timelapse: Not available

Still Photography Modes

• Single: Approx. 10 MP
• Countdown Timer: Off/0.5/1/2/3/5/10 s

Video Recording

• Standard Recording Resolutions:

  • 4K (4:3): 3840 × 2880 @ 24/25/30/48/50/60fps
  • 4K (16:9): 3840 × 2160 @ 24/25/30/48/50/60/100/120fps
  • 2.7K (4:3): 2688 × 2016 @ 24/25/30/48/50/60fps
  • 2.7K (16:9): 2688 × 1512 @ 24/25/30/48/50/60/100/120fps
  • 1080p (16:9): 1920 × 1080 @ 24/25/30/48/50/60/100/120/200/240fps
• Slow Motion:

  • 4K: 4× (120fps)
  • 2.7K: 4× (120fps)
  • 1080p: 8× (240fps), 4× (120fps)
• Hyperlapse: 4K/2.7K/1080p @ Auto/×2/×5/×10/×15/×30
• Timelapse:

  • Resolutions: 4K/2.7K/1080p @ 30fps
  • Intervals: 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40 s
  • Durations: 5/10/20/30 mins, 1/2/3/5 hours, ∞

Stabilization

• EIS Modes:

  • RockSteady 3.0
  • RockSteady 3.0+
  • HorizonBalancing
  • HorizonSteady
• Notes:

  • EIS not supported in Slow Motion and Timelapse modes.
  • HorizonSteady available for 1080p (16:9) or 2.7K (16:9) @ ≤60fps.
  • HorizonBalancing available for 1080p (16:9), 2.7K (16:9), or 4K (16:9) @ ≤60fps.

Pre-Recording

• Duration: 5/10/15/30/60 seconds

Video Specifications

• Max Video Bitrate: 130 Mbps
• Supported File System: exFAT
• Photo Format: JPEG/RAW
• Video Format: MP4 (H.264/HEVC)
• Built-in Storage: None (requires microSD card)

Audio Recording

• Specs: 48 kHz, 16-bit, AAC

Battery

• Type: LiPo 1S
• Capacity: 1770 mAh
• Energy: 6.8 Wh
• Voltage: 3.85 V
• Operating Temperature: -20° to 45° C (-4° to 113° F)
• Charging Temperature: 5° to 40° C (41° to 104° F)
• Operating Time: 160 minutes (tested at 1080p/24fps with RockSteady on, Wi-Fi off, and screen off)

Connection

• Wi-Fi:

  • Operating Frequency: 2.400–2.4835 GHz, 5.150–5.250 GHz, 5.725–5.850 GHz
  • Protocol: 802.11 a/b/g/n/ac
  • Transmitter Power (EIRP):
  • 2.4 GHz: < 15 dBm
  • 5.1 GHz: < 16 dBm
  • 5.8 GHz: < 14 dBm
• Bluetooth:

  • Operating Frequency: 2.400–2.4835 GHz
  • Transmit Power (EIRP): <3 dBm
  • Protocol: BLE 5.0

Others

• Guaranteed Software Updates Until: 2026/12/31
• Power Consumption (Standby/Low Power Mode): 0.5W
• Low Power Mode Activation: Within 20 minutes (default)
