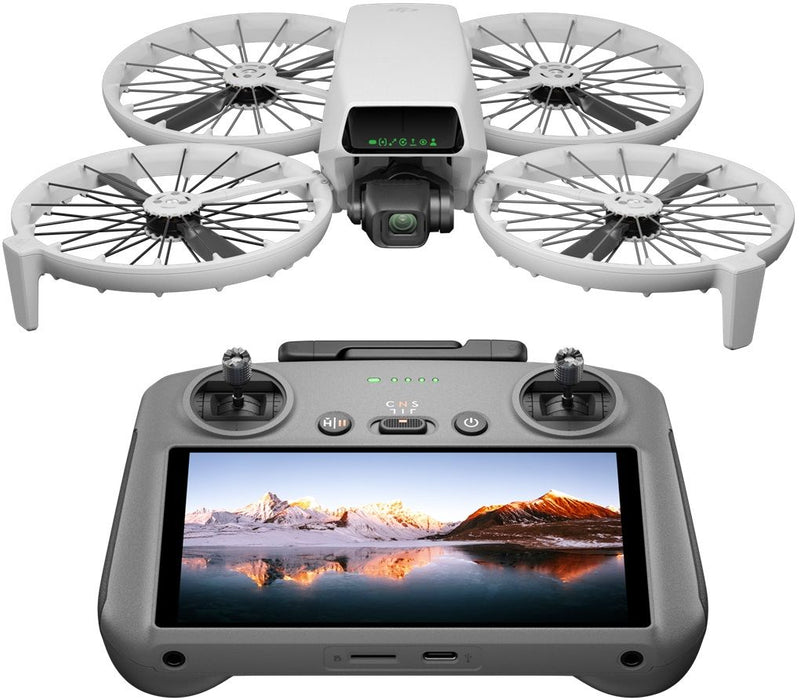

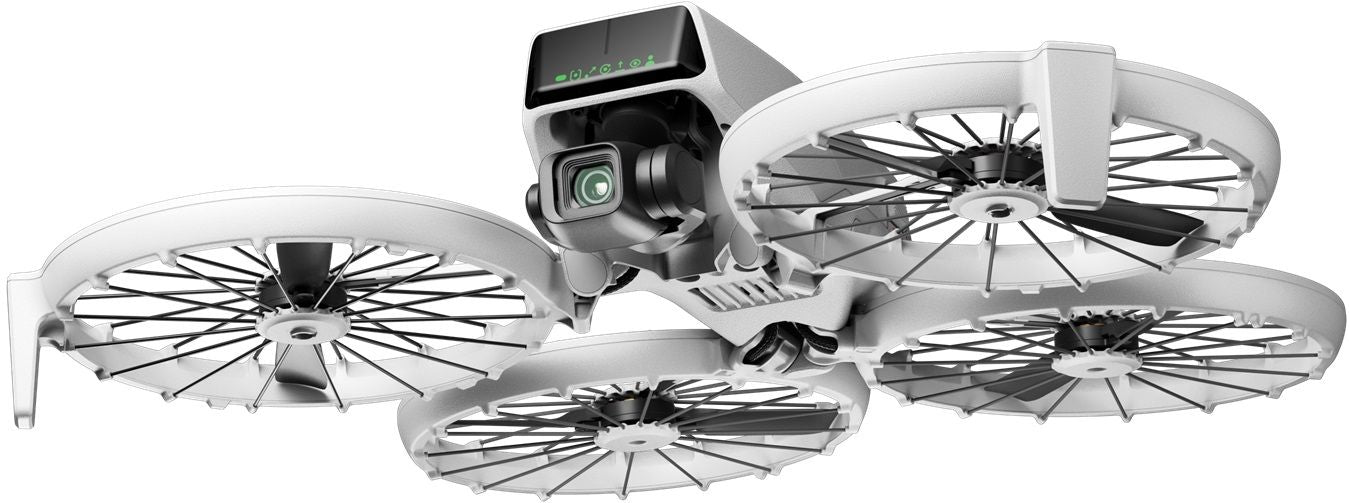

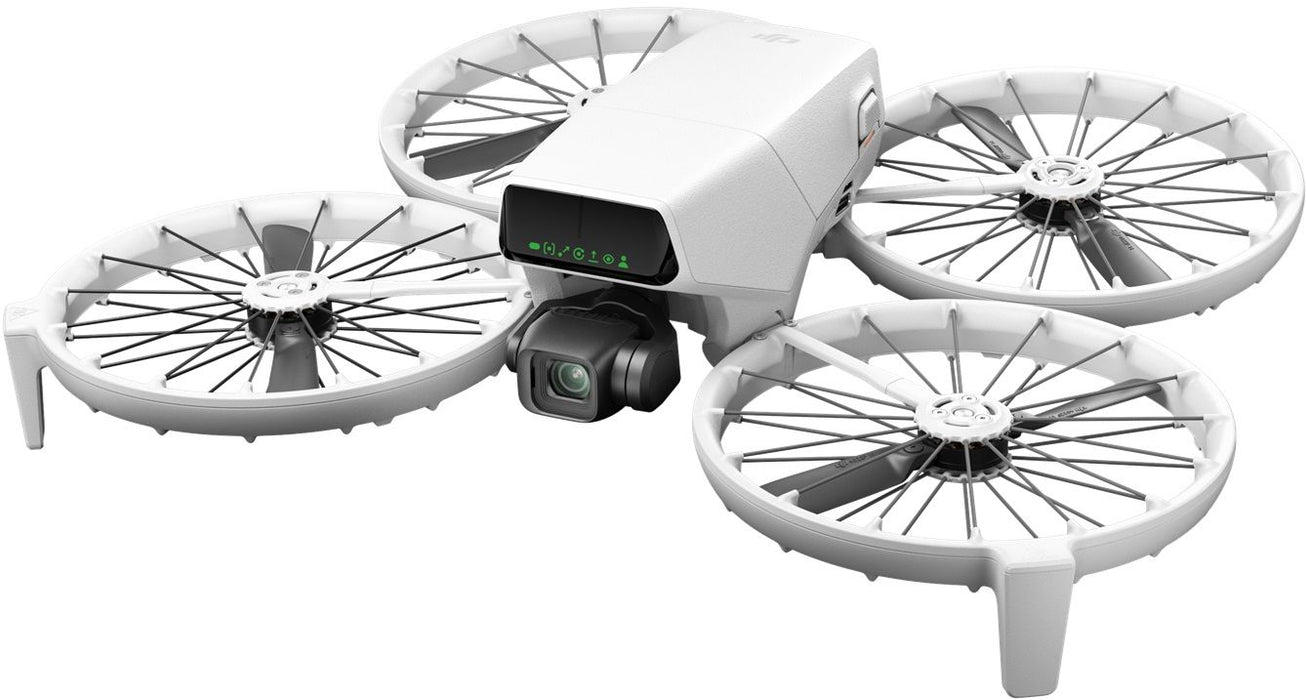

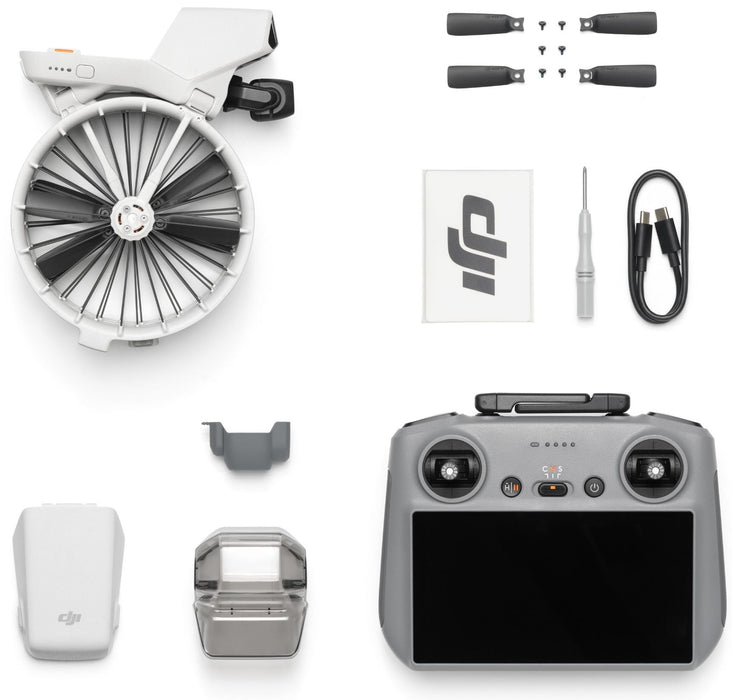

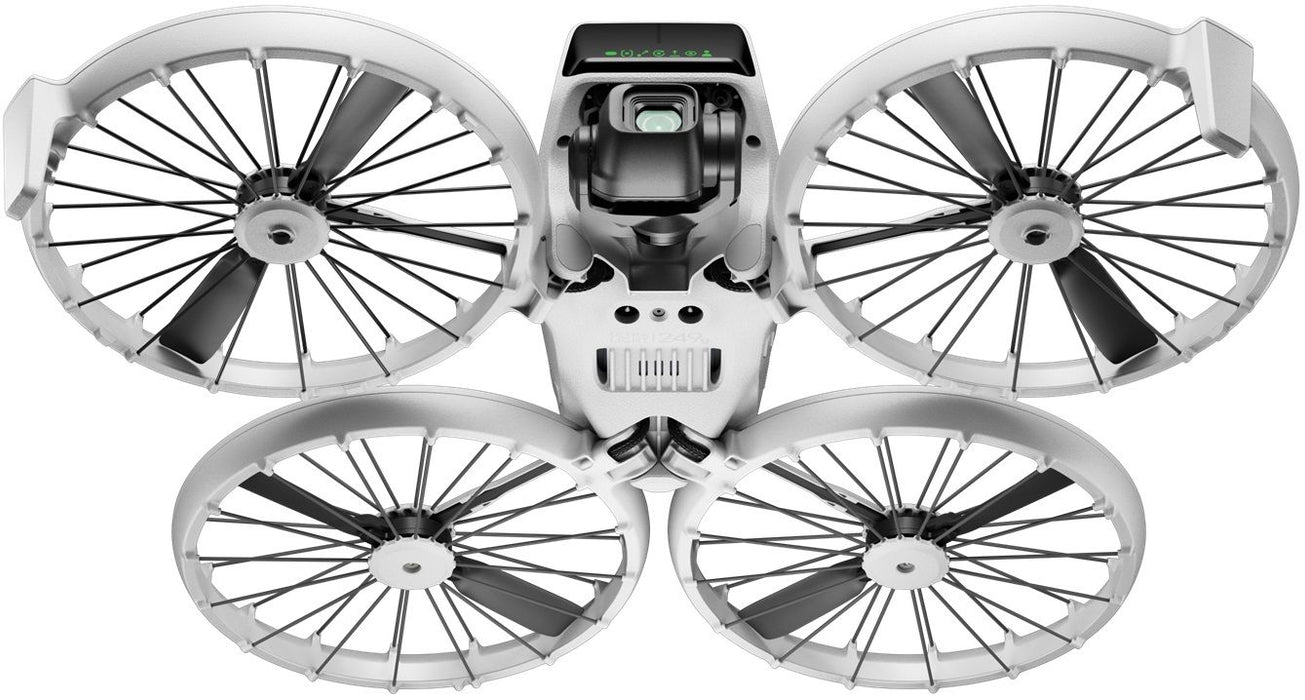

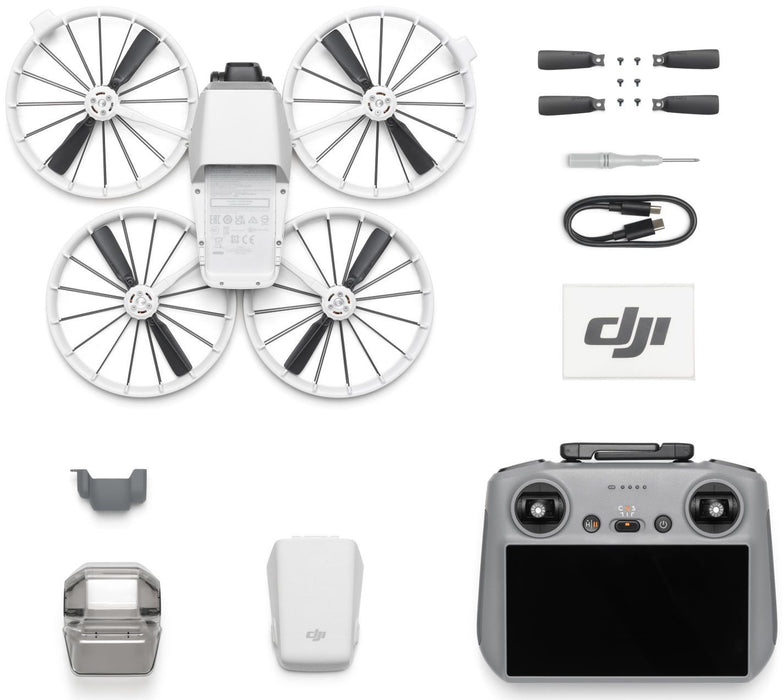

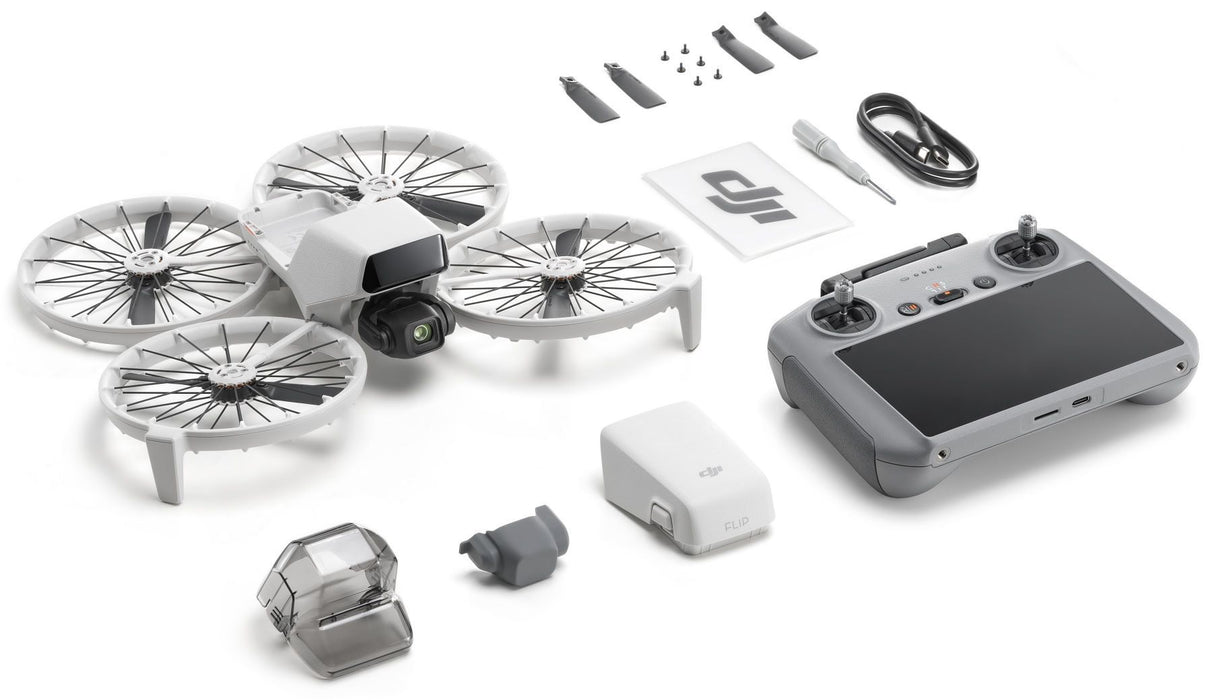

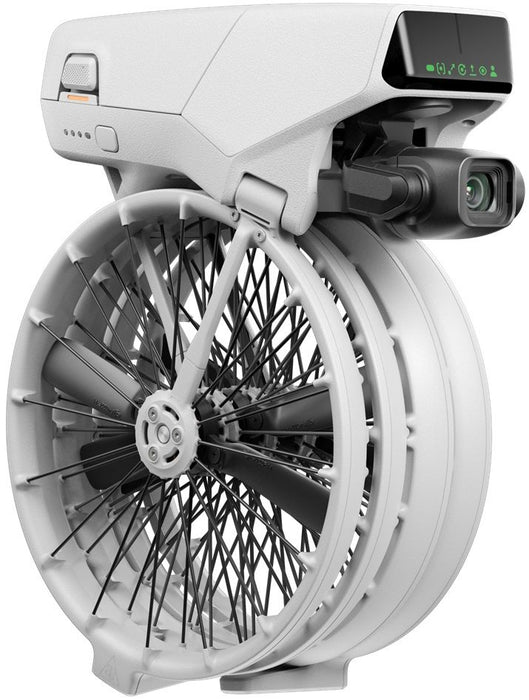

DJI Drone Flip with 48 MPx 100 fps Camera with DJI RC2 Remote Controller, Light Gray EU (CP.FP.00000180.01)

DJI Aircraft Specifications

General:

• Takeoff Weight: < 249 g
      Standard aircraft weight includes the Intelligent Flight Battery and a microSD card. Actual weight may vary.
  Dimensions:

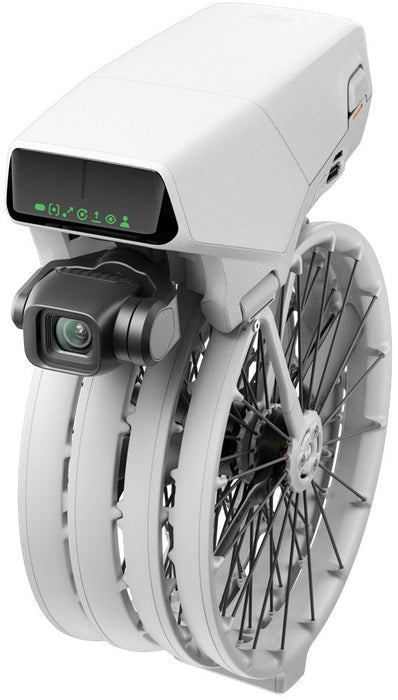

  • Folded: 136 × 62 × 165 mm (L × W × H)
  • Unfolded: 233 × 280 × 79 mm (L × W × H)
• Max Takeoff Altitude: 3000 m
• Max Flight Time: 31 minutes
• Max Hovering Time: 28 minutes
• Max Flight Distance: 14 km
• Max Wind Speed Resistance: 10.7 m/s (Level 5)
• Operating Temperature: -10° to 40° C (14° to 104° F)
• Internal Storage: 2 GB
• Class: C0 (EU)

Performance:

• Max Ascent Speed:

  • Sport Mode: 5 m/s
  • Normal Mode: 5 m/s
  • Cine Mode: 2 m/s
• Max Descent Speed:

  • Sport Mode: 5 m/s
  • Normal Mode: 5 m/s
  • Cine Mode: 1.5 m/s
• Max Horizontal Speed:

  • Sport Mode: 12 m/s (16 m/s with tailwind)
  • Tracking Status: 12 m/s

Camera:

• Image Sensor: 1/1.3-inch
• Lens:

  • FOV: 82.1°
  • Format Equivalent: 24 mm
  • Aperture: f/1.7
  • Focus: 1 m to ∞
• ISO Range:

  • Video: 100–6400 (Normal), 100–1600 (D-Log M)
  • Photo: 12 MP (100–6400), 48 MP (100–3200)
• Shutter Speed:

  • 12 MP Photo: 1/16000–2 s (2.5–8 s for simulated long exposure)
  • 48 MP Photo: 1/8000–2 s
• Max Image Size: 8064 × 6048 (48 MP Photo)
• Still Photography Modes:

  • Single Shot: 12 MP and 48 MP
  • Burst Shooting: 12 MP, 3/5/7 frames
• AEB: 12 MP, 3/5/7 frames at 2/3 EV step
• Timed: 12 MP, 2–60 s intervals
• Photo Format: JPEG, DNG/RAW
• Video Resolution:

  • 4K: Up to 100 fps
  • FHD: Up to 240 fps
  • 2.7K Vertical Shooting: Up to 30 fps
  • FHD Vertical Shooting: Up to 30 fps
• Video Format: MP4
• Max Video Bitrate: 150 Mbps
• Color Mode: Normal, D-Log M
• Digital Zoom:

  • 4K: 3×
  • FHD: 4×
  • 2.7K Vertical Shooting: 3×
  • FHD Vertical Shooting: 4×

Gimbal:

• Stabilization: 3-axis mechanical gimbal (tilt, roll, pan)
• Mechanical Range:

  • Tilt Axis: -130° to +63°
  • Roll Axis: -47° to +47°
• Pan: -30° to +30°
• Controllable Range:
• Tilt Axis: -90° to +35°
• Max Control Speed (Tilt): 100°/s
• Angular Vibration Range: ±0.01°

Sensing:**

• Sensing Type:

  • Downward: Visual sensor and infrared sensor
  • Forward: 3D Infrared Sensing System
• Measurement Range:

  • Forward: 0.3–8 m (reflectivity > 10%)
  • Downward: 0.3–8 m (reflectivity > 10%)
• FOV: Horizontal 60°, Vertical 60°

Video Transmission:

• System: O4
• Live View Quality: Up to 1080p/60fps
• Operating Frequency:
• 2.4 GHz, 5.1 GHz, 5.8 GHz
• Max Transmission Distance:
• FCC: 13 km
• CE/SRRC/MIC: 8 km
• Max Download Speed:
• O4: 10 MB/s (DJI RC-N3/RC 2 Remote Controller)
• Wi-Fi 5: 30 MB/s
• Lowest Latency: Approx. 120 ms

Battery:

• Capacity: 3110 mAh
• Weight: Approx. 83.5 g
• Nominal Voltage: 7.16 V
• Type: Li-ion (LiNiMnCoO2)
• Energy: 22.3 Wh
• Charging Temperature: 5° to 40° C (41° to 104° F)
• Charging Time:

  • Aircraft Charging (30W): Approx. 70 minutes
  • Charging Hub (48W, single battery): Approx. 45 minutes
  • Charging Hub (65W, two batteries): Approx. 70 minutes

Storage:

• Recommended microSD Cards:
• Kingston CANVAS Go! Plus (64 GB–512 GB)
• Lexar Professional 1066x (64 GB–512 GB)
