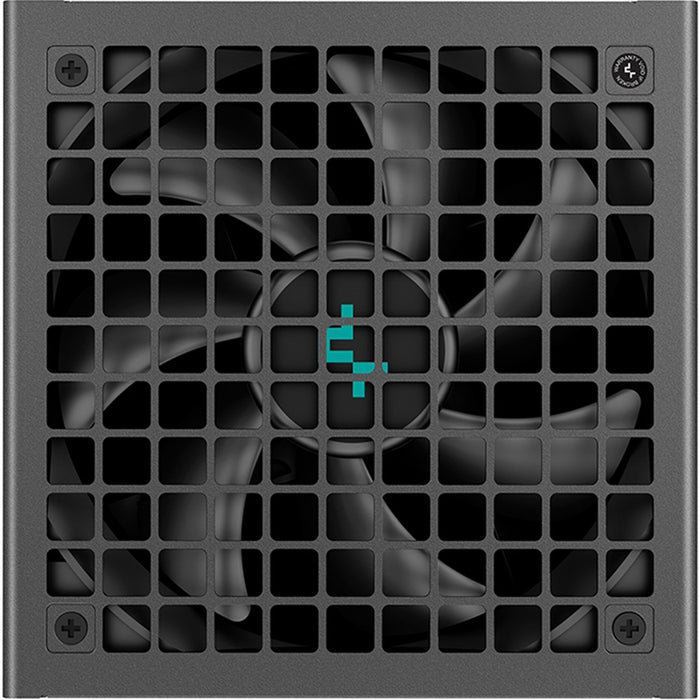

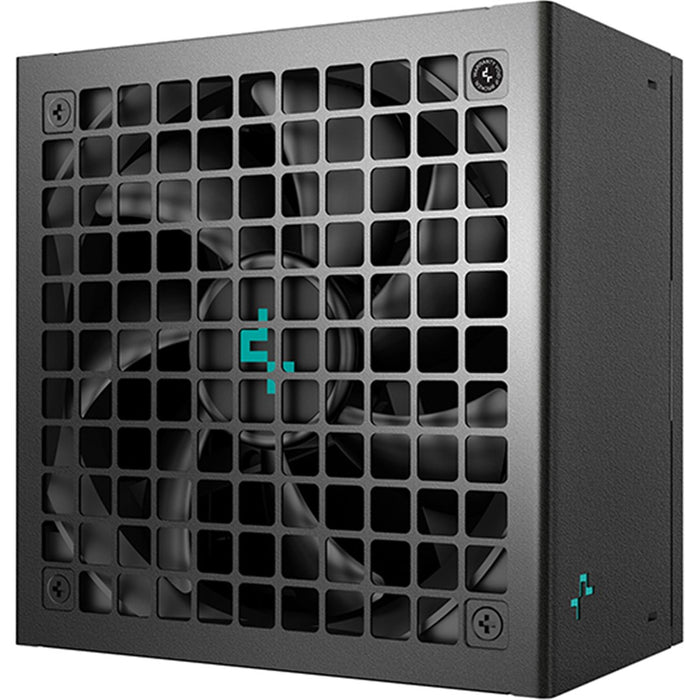

DeepCool PN1000-M power supply unit (R-PNA00M-FC0B-JGEU)

Original price €170,90 - Original price €170,90
Original price
€170,90
€170,90 - €170,90
Current price €170,90
SKU DGT0215763
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Design

Product colour Black
On/off switch Yes
Fan diameter 13.5 cm
Fan position Top
Number of fans 1 fan(s)
Cooling type Active

Power

Power Good signal delay range 100 - 150 ms
AC input frequency 50/60 Hz
Power protection features Under voltage, Short circuit, Overvoltage, Overheating, Surge protection, Overpower, No-load operation, Surge and inrush current protection (SIP)
Combined power (+12V) 999.6 W
Total power 1000 W
Hold-up time 16 ms
AC input voltage 100 - 240 V
Combined power (+5Vsb) 15 W
Power factor correction (PFC) type Active
Combined power (+5V) 120 W
Combined power (+3.3V) 120 W
Efficiency 90%

Operating conditions

Operating temperature (T-T) 0 - 40 °C

Weight and dimensions

Depth 150 mm
Width 150 mm
Height 86 mm

Performance

Bearing technology FDB
ATX version 3.1
Power supply unit (PSU) form factor ATX
80 PLUS certificate 80 PLUS Gold
Mean time between failures (MTBF) 100000 h
Purpose PC

Packaging data

Packaging type Box

Package contents

Included cable tie(s) Yes
Included cables Alternating current

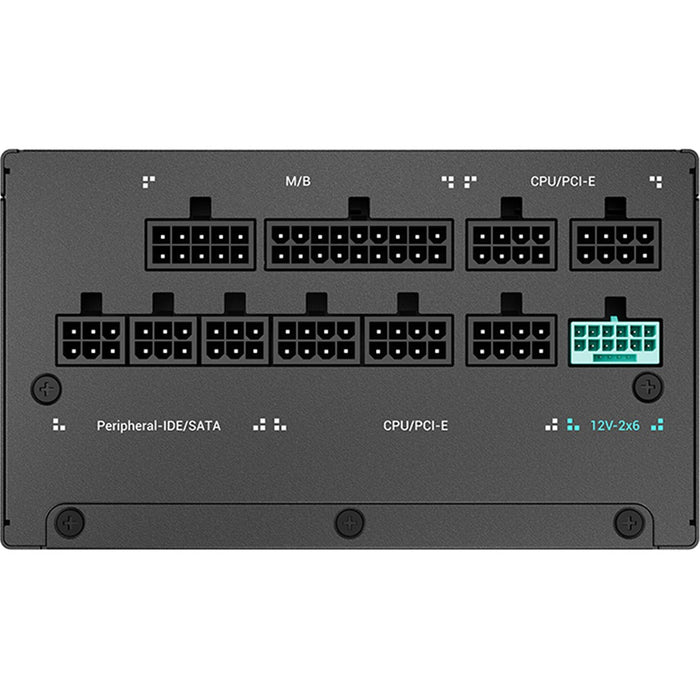

Ports and interfaces

Number of SATA power connectors 8
ATX power connector (20+4 pin) Yes
PCI Express power connectors (16-pin) 1
CPU power cable length 70 cm
Motherboard power connector 20+4 pin ATX
CPU power connector (4+4 pin) 2
Cabling type Fully modular
Peripheral (Molex) power connectors (4-pin) 2
PCI Express power connectors (6+2 pin) 3

Safety warning

Warnings Avoid contact of the product with water or other liquids., Do not open the case – risk of electric shock., The product is not suitable for disposal with household waste – dispose of it in accordance with local regulations.
