Creality CR-Scan Ferret Pro 3D Scanner

The Creality CR-Scan Ferret Pro is a modern 3D scanner that offers anti-vibration technology , full-color scanning , and high accuracy . It is suitable for engineering applications, design, and rapid prototyping .

Main features

- Accuracy: 0.1 mm

- Resolution: 0.16 mm

- Scanning speed: up to 30 frames per second (fps)

- Scanning area: 560 – 820 mm

- Scanning distance: 150 – 170 mm

Scanning technology: Structured infrared light

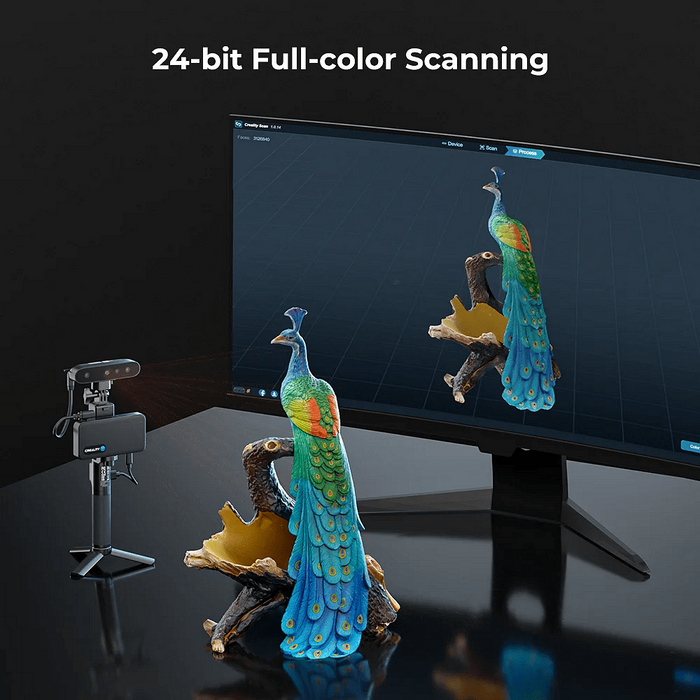

- Color mapping: 24-bit full color scanning

- Alignment modes: Geometry, marker, texture

- IMU (Inertial Measurement Unit): Yes

- No need for scanning spray – suitable for black and metal surfaces

Connectivity and compatibility

- Operating system: Windows, macOS, iOS, Android

- Interface: WiFi 6, USB 2.0, USB 3.0

- Output formats: STL, OBJ, PLY

Design and comfort

- Dimensions: 120 x 30 x 26 mm

- Weight: 105 g

- Compact and lightweight – ideal for mobile work

- Fanless – quiet operation and effective heat dissipation

- Touch buttons – intuitive control

- Indicator light – shows real-time scanning status

Software and functionalities

- CrealityScan – intuitive software with powerful features

- One-click processing – easy point cloud editing

- Scanning modes: Marker, Face & Body, Texture

- Scanning black objects and metal surfaces

Advantages

- High precision – ideal for engineering and design applications

- Compact and lightweight – convenient for mobile work

- Intuitive software – easy to use without complicated settings

- Flexibility – suitable for different types of scanning
