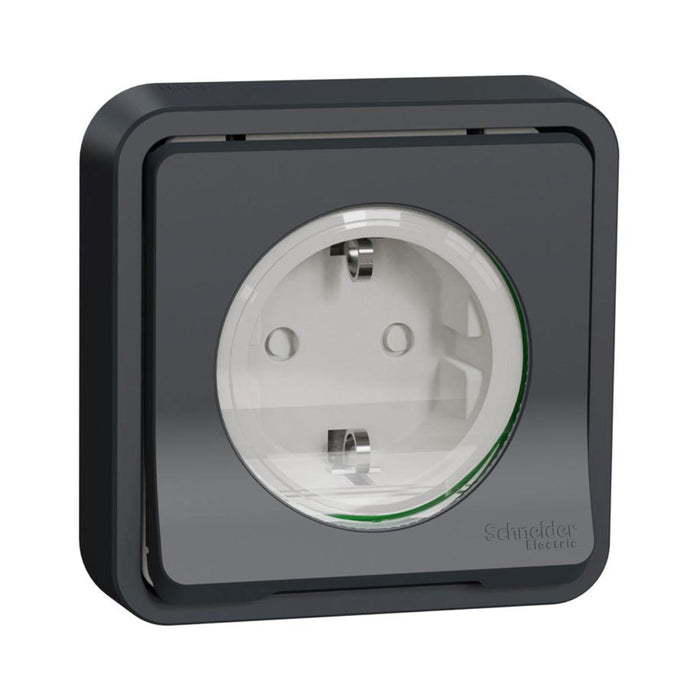

CONTACT SHUKO ANTHRACITE MUREVA SCHNEIDER

Product range: Mureva Styl
Component type: Contact outlet
Device Presentation: Complete Product
outlet pole configuration: 2P + E with covers
Outlet Pole Description: Side Grounding
Standard outlet: Schuko
Color shade: Gray (RAL 7016)
Device installation: Concealed installation
Rated current: 16 A
number of power contact outputs: 1
[Ue] rated operational voltage: 250 V AC
Conditions of use: Indoor/outdoor
Material: Brass, PC (polycarbonate), PP (polypropylene)
Installation method: With screws
Cable entry: Easy valve access 6...12 mm
Height: 76 mm
Width: 76 mm
Depth: 64 mm
Chemical and detergent product resistance:
Resistant to alcohol (70%)
Resistant to alcohol (96%)
Resistant to A-Lactic Acid
Resistant to diluted quaternary ammonium
Resistant to diluted bleach
Resistant to diluted ammonia
Resistant to soapy water
Resistant to crystal cleaner
Resistant to hydrogen peroxide 10 volumes
Resistant to hexane
Quality labels: AENOR, EAC
IP protection level: IP55
IK protection level: IK08
Flame resistance: Self-extinguishing 650 °C in accordance with IEC 60695-2-1
Ambient air temperature during operation: -5…40 °C
Ambient air temperature for storage: -25…55 °C
