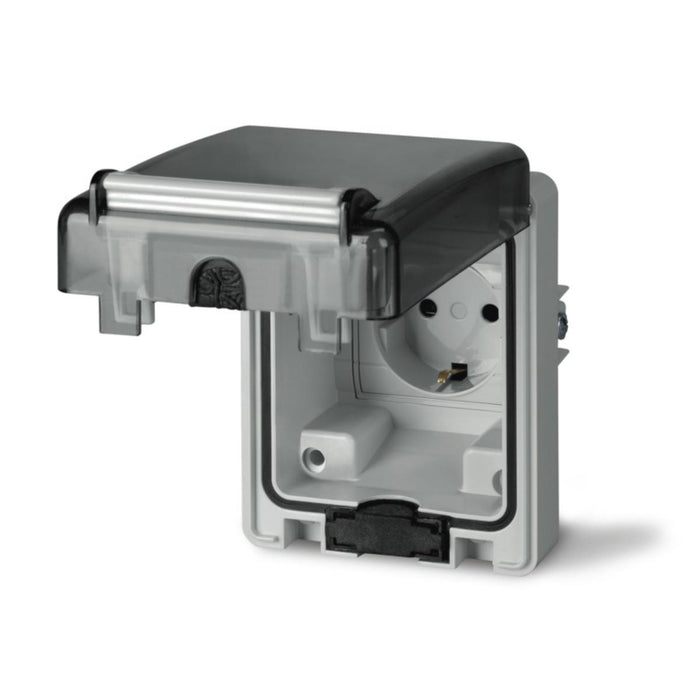

CONTACT SHUKO 2P+E 16AIP66 DOMOPLUS SCAME

Contact SHUKO 16A, 2P+E, IP66, 70x87mm, SCAME DomoPlus 570.6407
Robust and safe industrial contacts, thanks to the use of high-performance technopolymer. DOMOPLUS series contacts are available with screw terminals and always guarantee the best connection. The non-replaceable gasket and cover guarantee a permanent seal of the IP protection degree even with the plug connected. DOMOPLUS series products are manufactured with halogen-free materials that are harmless to the environment.

• series: DOMOPLUS
• manufacturer: SCAME – Italy
• standard: EN 60309
• mounting: panel, STRAIGHT output
• poles: 2P + E
• type: German Standard
• rated current: 16A
• rated voltage: 250V
• operating frequency: 50Hz, 60Hz
• color: GREY
• Protection level: IP66 – water and dust-proof contact when plugged in
• material: halogen-free
• terminals: screw
• Connection flange size: 70×87mm
• overall dimensions: 84x106mm

Scame Domo Schuko socket for panel mounting in boxes or panels, with built-in child protection and flange size 50x60mm. Housing made of durable technopolymer and seals for protection against water.
